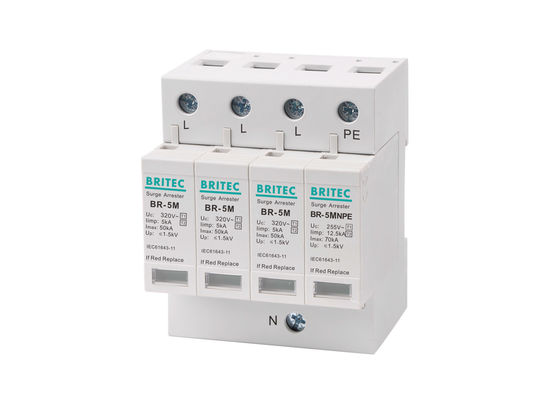

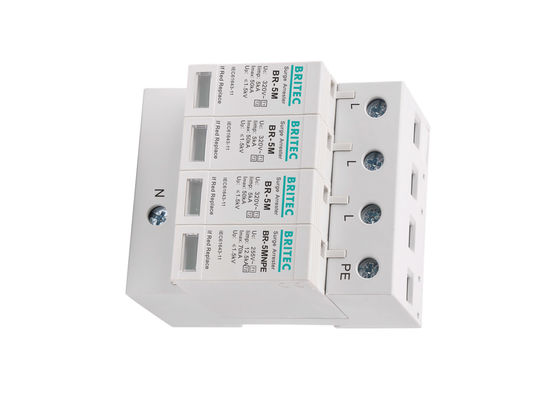

SPD T1+T1 Type 1 and Type 2 AC Surge Protection Device
This Class B+C Class I+II surge protection device with 5kA rating and 3+NPE 320V configuration provides comprehensive protection against lightning-induced voltage surges for industrial and commercial applications.
Product Overview
- Compliant with GB/T18802.1 and IEC/EN 61643-11 standards
- Rated voltage: 275V~, 320V~
- Maximum discharge current: 50kA
- High Energy Varistor technology for effective lightning protection
- Modular design for easy installation in LV switchboards
- End-of-life indicators for maintenance monitoring
- Protects electrical installations from lightning strikes by discharging surge currents
Technical Specifications
| SPD classification (EN 61643-11) |
Type 1 + Type 2 |
| SPD classification (IEC 61643-11) |
Class I + Class II |
| Max. continuous operating voltage (Uc) |
320V |
| Lightning impulse current (10/350μs) Iimp |
5kA |
| Nominal discharge current (8/20μs) (L-N / N-PE) |
20kA / 40kA |
| Max. discharge current (8/20μs) (L-N / N-PE) |
50kA / 70kA |
| Voltage protection level (L-N / N-PE) Up |
≤1.3kV / ≤1.5kV |
| Voltage protection level 5kA (L-N / N-PE) |
≤1.0kV / ≤1.5kV |
| Response time (L-N / N-PE) tA |
≤25ns / ≤100ns |
| Operating temperature range |
-40℃ to +80℃ |
| Operating state / fault indication |
Green / Red |
| Cross-section area (Min./Max.) |
4mm² / 35mm² |
| For mounting on |
35mm Din rail |
| Protection degree |
IP20 |
| Enclosure material |
Thermoplastic UL94-V0 |
Dimensions
Working Principle
Under normal operating conditions, the SPD maintains a high-impedance state that doesn't affect system performance. When transient voltages occur, the SPD transitions to a low-impedance state, diverting surge currents to ground or back to the source. This clamping action limits voltage to safe levels. After the transient event passes, the SPD automatically resets to its high-impedance state.
Why Install Surge Protection?
Lightning strikes occur daily worldwide, posing risks to any structure in their path. Though lasting only microseconds, lightning generates dangerous voltage surges capable of destroying electronic equipment. Installing surge protection devices significantly reduces or prevents damage to valuable electrical systems and devices.
