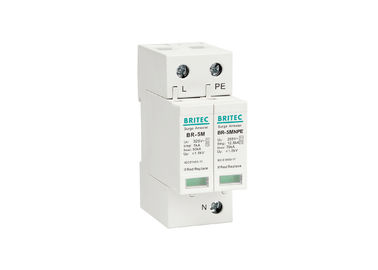

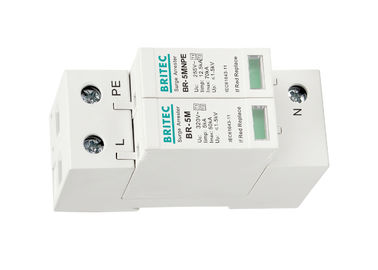

Name: 1P + NPE Power Lightning Surge Arrester Class I + II AC SPD
Brand: BRITEC
SKU: BR-5M-320 1+NPE
Price: 40 USD
Availability: InStock
Rating: 4.8 (188 reviews)

Home Products T1+T2 Surge Arrester B+C

1P + NPE Power Lightning Surge Arrester Class I + II AC SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-5M-320 1+NPE

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Price:	USD 40-80 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Class:	Class I + Class II
Type:	T1 + T2	Material:	Thermal Plastic UL94-V0
Pole Number:	1P+NPE	Tu:	-40℃-80℃
Uc:	320V AC	Iimp:	5kA
High Light:	SPD lightning surge arrester , 5kA lightning surge arrester

1P+NPE Power Surge Protector Surge Arresters – Class I + II AC SPD

Feature:

• Surge arrester for low-voltage power supply system protection against surges.

• SPD is suitable for AC 50/60HZ, TT power supply systems.

• Protective device adopts 35mm Din rail type mounting.

• Designed according to IEC61643-1 and GB18802.1 standards.

• As the protector normal works that the pilot lamp is green.

Product Details:

	BR-5M-320 1+1
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	320V
Lightning impluse current (10/350us) Iimp	5kA
Nominal discharge current (8/20us) (L-N / N-PE) In	20kA / 40kA
Max. discharge current (8/20us) (L-N / N-PE) Imax	50kA / 70kA
Voltage protection level (L-N / N-PE) Up	≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE) Up	≤1.0kV / ≤1.5kV
Response time (L-N / N-PE) tA	≤25ns / ≤100ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Protection degree	IP20
Enclosure material	Thermal plastic UL94-V0

Technology characteristic:

Why need SPD?

When the power system suffered thunder of other reasons, it produces high frequency pulse voltage.

The electrical equipment will be damaged. Especially with the large use of computer and

microelectronic facilities, people have concerned the over protective device of low voltage power

system.

Our company:

Wenzhou Britec Electric Co., Ltd. locates in Yueqing City, Zhejiang Province, China, it was founded in

2003, its main products include: AC surge arrester, DC surge protector, data surge protection, LED

lightning arrester and other products.

Certificates:

Our factory:

FAQ:

1. How can I get some samples?
A: We are pleased to offer you samples, but you need to bear sample cost and oversea freight.

2. Are you a factory?
A: Yes. We have specialized in this field about 17 Years.

3. Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing, Zhejiang, China. All our clients, are warmly welcome to visit us.

4. What is the delivery time?
A: 15-30 days normally, detail delivery date should be decided according to production season and

order quantity.

5. What is your MOQ?
A: The MOQ is based on your different order and packaging choose. Please contact us for more details.
