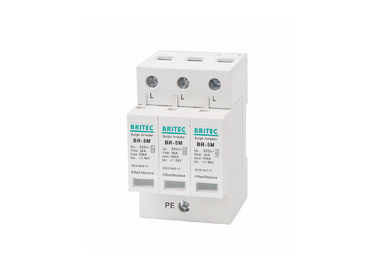

5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C

5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C

  • 5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C
  • 5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C
5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR320-5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Protector Class: Class I+II
Type: Type 1+2 Material: Thermal Plastic UL94-V0
Pole Number: 3P Tu: -40℃-80℃
Uc: 320V AC Iimp: 5kA
High Light:

5ka lightning protectors

,

3p lightning protectors



5kA 3P 320Vac Lightning Protector Type 1+2 / Class I+II / Class B+C



Feature:

• Equipped with a thermal disconnection.
• BR-5M 3P is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
• DIN rail mounted surge protector is easy to install in any standardized distribution pane or
  control cabinets.
• It is equipped with an internal thermal safety which will disconnect the unit from the AC network in
  case of the end of life. This disconnection will be indicated by the turn-on of the red mechanical
  indicator in the front.

Product Details:

  BR-5M-320 3P
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                     Uc 320V
Lightning impluse current (10/350us)                      Iimp 5kA
Nominal discharge current (8/20us)                            In 20kA
Max. discharge current (8/20us)                             Imax 50kA
Voltage protection level                                              Up ≤1.5kV
Response time                                                            tA ≤25ns
Power supply system 3 phases TN-C system
Technology MOV
Format Plug-in modular
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                    Thermal plastic UL94-V0
OEM Yes
Remote Signalling Optional


Technology characteristic:


5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C 0

Certification:

5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C 1

Production Flow:

5kA 3P 320Vac Lightning Protectors Type 1+2 / Class I+II / Class B+C 2

FAQ:

Q1: What's your warranty?
A1: The warranty is 2 years.

Q2: How about inspection?
A2: Our Test standard: IEC 61643-1 / EN 61643-11/ UL1449 ed.4/GB 18802.1, and the Vibration and
      Shock according standard : DIN EN 60068-2-6 and DIN EN 60068-2-27, as well as the Degree of
      protection according to IEC EN60529: IP 20.


Q3: What's the standard of package?

A3: Inner box and out carton are made as per international standard and we can make special design

      according to customer's need.


Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.

Q5: What is the payment terms?
A5: T.T, PayPal and L/C is acceptable.



Tag:

single phase surge arrester,

lighting surge arrester,

lightning arrester surge protector
