Solar PV Surge Arrester Protection Device With Gas - Discharge Tube 1000V DC

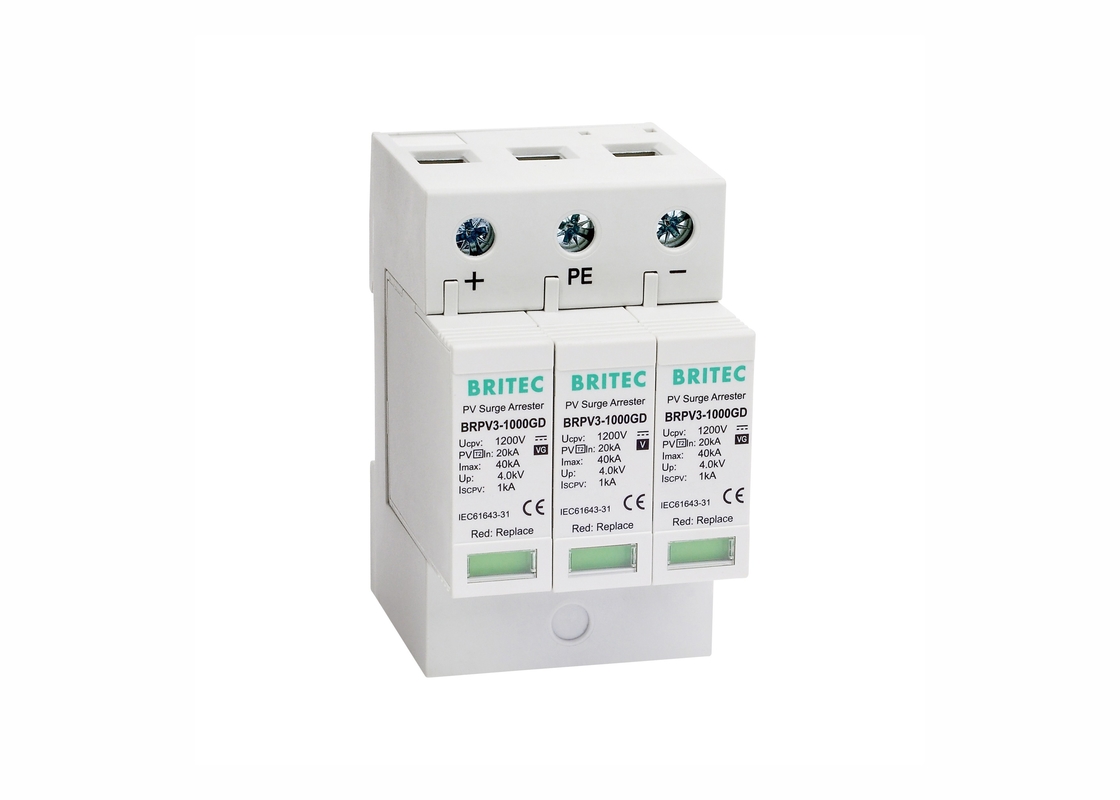

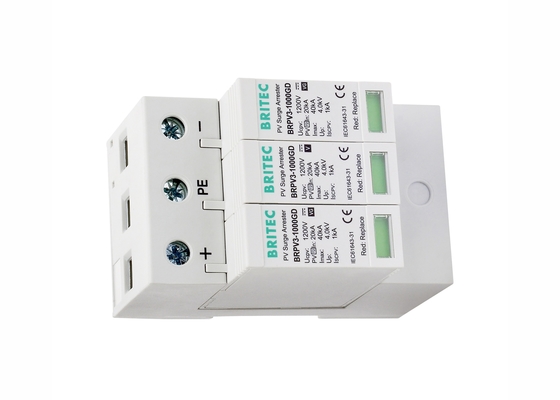

Large Image : Solar PV Surge Arrester Protection Device With Gas - Discharge Tube 1000V DC

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1000GD

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Solar PV Surge Arrester Protection Device With Gas - Discharge Tube 1000V DC

Description

Test Standards:	EN61643-31 / IEC61643-31	Ucpv:	1000V
Imax:	40kA	Material:	Thermal Plastic UL94-V0
TA:	≤100ns	Mounting On:	35mm Din Rail
Up:	≤4.0kV	Tu:	-40℃...+80℃
Item:	PV Surge Arrester	System:	DC Power System
Highlight:	dc surge arrester , dc surge suppressor

3 Poles 40kA Solar Pv Surge Protection Device With Gas - Discharge Tube 1000V DC

Solar PV Surge Arrester Protection Device Feature:

• Type 2 / Class II PV surge protection device.

• Max. discharge current with 8/20 waveform: 40kA per phase.

• BRPV3-1000GD pv surge arrester is specially designed for DC surge protection.

• This product conform to IEC61643-31 and EN61643-31.

• This product have 3 pole for DC 1000V and 2 pole with gas discharge tube which ensure no leakage current.

• Complete device consists of a base part and pluggable modules.

• Visual indication of a fault in the equipment.

• Safety disconnection and remote signalling.

Solar PV Surge Arrester Protection Device Product Details:

	BRPV3 1000 GD
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤100ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8006
Order code(With remote signal)	B8008

Dimension:

Solar PV Surge Arrester Protection Device Application:

• Designed especially for surge protection of the PV strings; apply to the Photovoltaic power grid-connection system.

• For the protection of positive and negative busbars of photovoltaic systems against the surge effects.

• For elimination of transient overvoltage that originate during atmospheric discharges or switching processes.

• Protect the terminal devices in PV system from over voltage, like solar panels or inverters.

• Available for 1000V DC integrated in PV string inverters or solar combiner boxes.

• It also can be used for protection of wind turbine system.

Solar PV Surge Arrester Protection Device Advantage:

• Particular varistor sectors.

• Remote monitoring.

• Operational status indication.

• Plug-in cartridges for quick and easy replacement of damaged ones.

• High discharge capacity.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Solar PV Surge Arrester Protection Device Installation instruction:

• This surge arresters are usually installed in DC power load side.

• These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 0-2.

• Suitable for protection where no external protection is installed. Protection should be installed on the DC as well AC side of an installation.

Company profile:

Wenzhou Britec Electric Co.,Ltd. concentrates on the research, development and innovation of low voltage surge arrester. Main products and business: AC surge protection, DC power surge protector, data surge protective device, LED lightning arrestor, etc. Our company adheres to the concept of honesty, quality and progress. We are providing the dedicated service to customers according to our rich experience. Willing to go forward hand in hand with you!

Certification:

Factory:

FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.

Q2: How long is the warranty of your products?
A: 2-year Warranty.

Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
