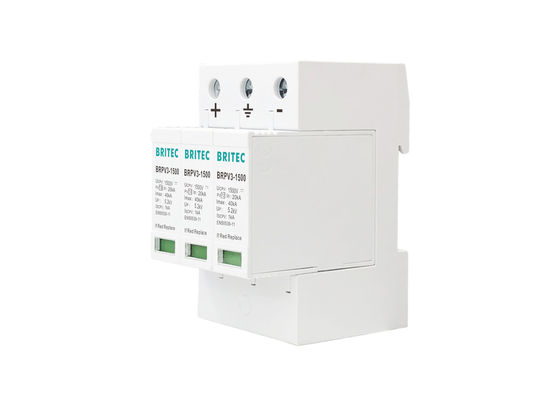

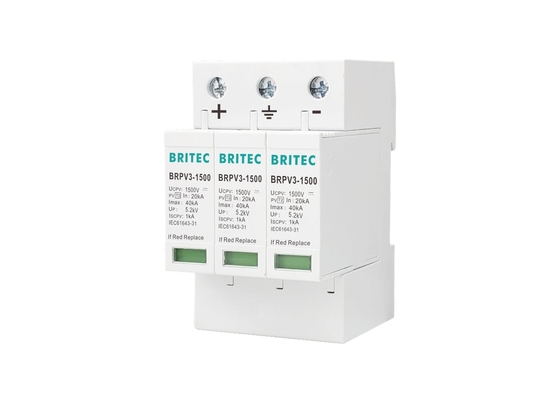

Type 2 PV Surge Arrester Protective Device 40kA 8/20us DC 1500V SPD For Solar

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1500

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-31 / IEC61643-31	Ucpv:	1500V
Imax:	40kA	Material:	Thermal Plastic UL94-V0
TA:	≤25ns	Mounting On:	35mm Din Rail
Up:	≤5.2kV	Tu:	-40℃...+80℃
Class:	Type 2	Item:	PV Surge Arrester
High Light:	dc surge arrester , dc surge suppressor

Type 2 Surge Protective Device 40kA(8/20us) DC 1500V SPD for Solar PV System

Type 2 PV Surge Arrester Protective Device Feature:

• Type 2 Class II surge protection device.

• Compliance to IEC 61643-31 and EN 61643-31.

• Pluggable modular 3 poles.

• Imax:40kA.

• Maximum operating voltage of 1500V DC.

• The remote signal port can achieve remote alarm control.

• Protective Elements: High Energy MOV.

• It is available in a variety of different power supply voltage and selector corresponding specifications.

Type 2 PV Surge Arrester Protective Device Product Details:

	BRPV3 1500
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1500V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤5.2kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8018
Order code(With remote signal)	B8019

Dimension:

Type 2 PV Surge Arrester Protective Device Application:

• SPD for Solar PV System, to protect against lightning surge voltages in photovoltaic power supply network.

• For installation in the DC circuits of solar photovoltaic systems, string box, inverter.

• It can be installed on industrial and service facilities.

• Applied to provide fine overvoltage protection of electronic equipment whose power is supplied by direct-current power supply.

• It is widely used in the DC power lightning protection of solar power systems, mobile communication base stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance, securities and other system.

Type 2 PV Surge Arrester Protective Device Advantage:

• Easy to install wiring.

• High Energy MOV.

• Flame-retardant shell.

• Self-protected against short circuit.

• Dustproof and anticorrosion.

• High voltages and low DC current.

• High temperature resistant plastic with excellent tightness.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Why need pv surge arrester?

• To avoid the disconnecting problem at the end of life of the product on specific high voltage DC PV network and therefore offer a safe and efficient protection to photovoltaic installations, ask for a photovoltaic dedicated surge protective device.

• Reliable surge protection with future-proof performance is a must to maximise system uptime and profitability.
