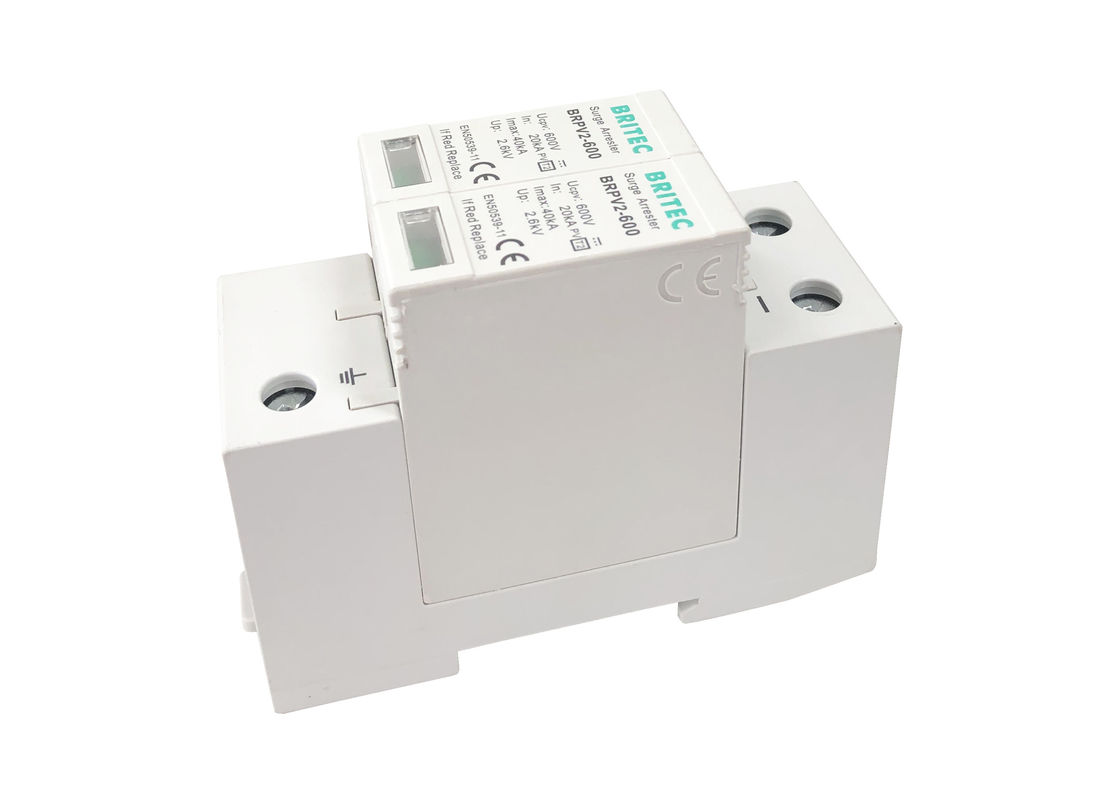

Name: 40kA DC 600V Pv Surge Arrester 35mm Din Rail Surge Protection Device
Brand: BRITEC
SKU: BRPV2-600
Price: 1 USD
Availability: InStock
Rating: 4.5 (180 reviews)

Home Products PV Surge Arrester

40kA DC 600V Pv Surge Arrester 35mm Din Rail Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV2-600

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	EN61643-11 / EN50539-11	Ucpv:	600V
In:	20kA	Imax:	40kA
Material:	Thermal Plastic UL94-V0	TA:	≤25ns
Mounting On:	35mm Din Rail	Up:	≤2.6kV
Tu:	-40℃...+80℃	Item:	PV Surge Arrester
High Light:	dc surge arrester , dc surge suppressor

DC Surge Protection 40kA DC 600V pv Surge Arrester 35mm Din Rail

40kA DC 600V Pv Surge Arrester Feature:

• PV voltage up to 600Vdc.

• According to type 2 / class II EN61643-11 and EN50539-11.

• With remote indication contact.

• With optical function display.

• Designed for 35 mm DIN rails.

• Operating Temperature: -40° to +80° C.

• Thermoplastic Housing.

40kA DC 600V Pv Surge Arrester Product Details:

	BRPV2 600
SPD classification according to EN61643-11	Type 2
SPD classification according to EN50539-11	Class II
Max. continuous operating dc voltage Ucpv	600V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level Up	≤2.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Order Code	B8013
Order code(With remote signal)	B8015

Dimension:

40kA DC 600V Pv Surge Arrester Application:

• For the 230V monophase network (or 3-phases 230/400V) on which the PV inverter is connected.

• For Photovoltaic applications to prevent the risks linked to lightning.

• Applied to electrical systems to provide a discharge path to earth to save those systems’ components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies.

40kA DC 600V Pv Surge Arrester Advantage:

• Easy installation and access for a best maintenance.

• High operational reliability.

• Optical status indicator via LED.

• Local and remote status indication.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Why need pv surge arrester?

Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.

Installation instruction:

• Mount the SPD on 35 mm DIN rail.

• The SPD is placed in parallel between the energized conductors and ground.

• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.

Certifications:

Company profile:

Wenzhou Britec Electric Co., LTD. a Chinese professional SPD manufacture company. Our company was established in 2003, is China's professional produce low voltage surge arrester of enterprises. Welcome the friends from anywhere in the world, as long as you have about surge protection device demand, please contact us!

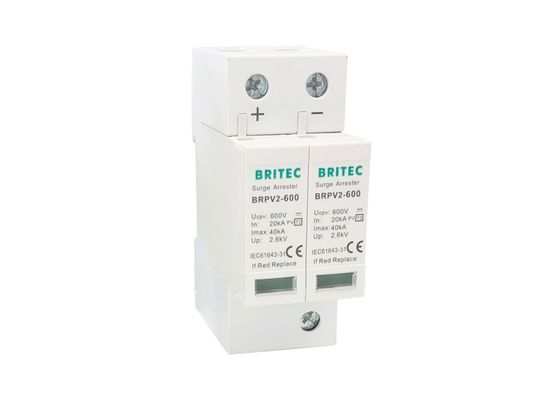

40kA DC 600V Pv Surge Arrester 35mm Din Rail Surge Protection Device 2

Shipping:

FAQ:

Q1: When can I receive your quotation and detail information after send the enquiry?
A: All your enquiry will be replied within 24 hours.

Q2: Can I get samples before place an order?
A: Of course! We also believe that sample order is the best way to prove the quality. Please send the enquiry to us.

Q3: Can you print our own logo?
A: Yes, our company are available for OEM.

Q4: How long is the quality guarantee?
A: 2 years warranty, our products are 100% inspection.

Q5: How long is the delivery time?
A: It usually takes about 7 working days for sample order, and 20 days for official order.
