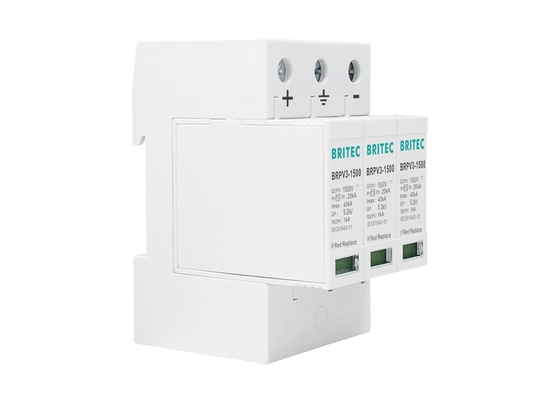

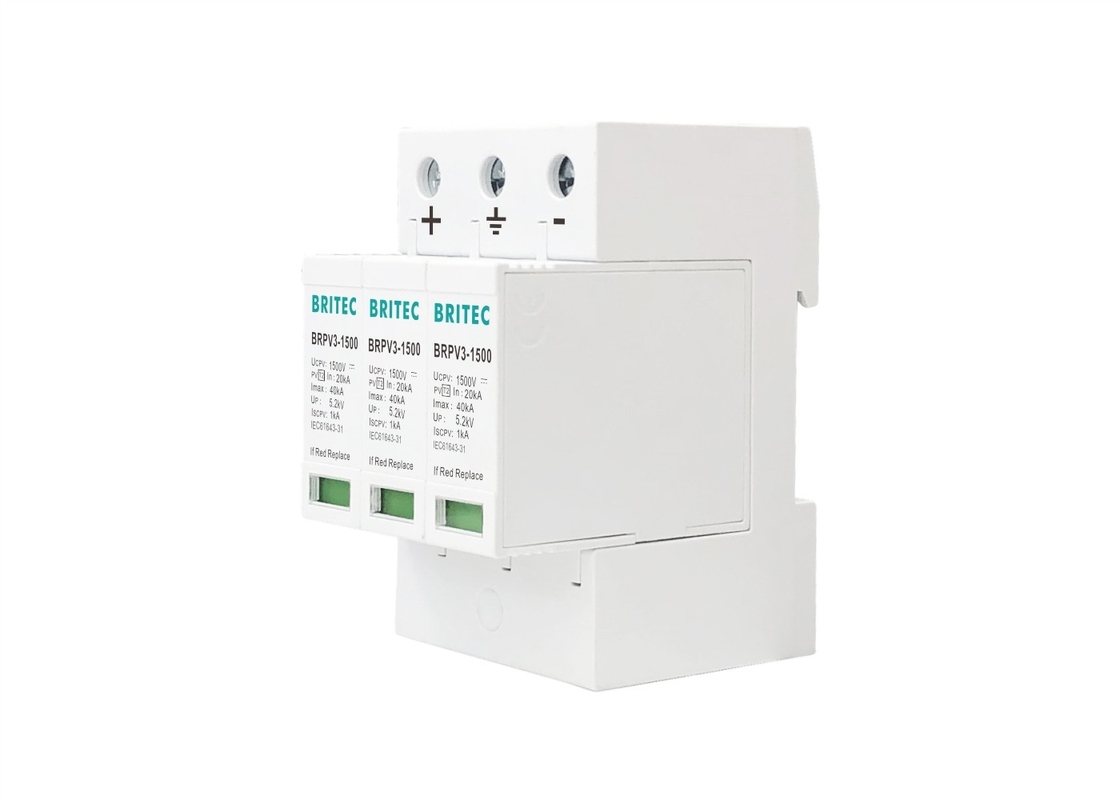

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service

  • Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service
  • Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service
Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV3-1500
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
TU: -40℃…+80℃ Material: Thermalplastic UL94-V0
Ucpv: 1500V In: 20kA
Imax: 40kA TA: ≤25ns
Class: Type 2 Item: Surge Arrester
OEM/ODM: YES Standard: IEC61643-31 / EN61643-31
Highlight:

dc surge arrester

,

dc surge suppressor

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service


Practical Type 2 Surge Arrester Product Details:



  BRPV3 1500
SPD classification according to EN61643-31 Type2
SPD classification according to IEC61643-31 Class II
Max.continuous operating d.c.voltage            Ucpv 1500V
Nominal discharge current(8/20us)                      In 20kA
Max. discharge current(8/20us)                       Imax 40kA
Voltage protection level [(DC+/DC-)→PE]          Up ≤5.2kV
Response time                                                     tA ≤25ns
Operating temperature range                              Tu -40℃…+80℃
Operating state/ fault indication green / red
Cross-section area(Min.) 4mm²
Cross-section area(Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection

IP20

Order Code B8018
Order Code(With remote signal) B8019


Dimension:

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 0


Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 1


Company Information:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 2


Exhibition:



Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 3


Certifications:



Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 4


Product Uses:



Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

Practical Type 2 Surge Arrester Dc Surge Arrester OEM / ODM Service 5


FAQ:



Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.



Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
