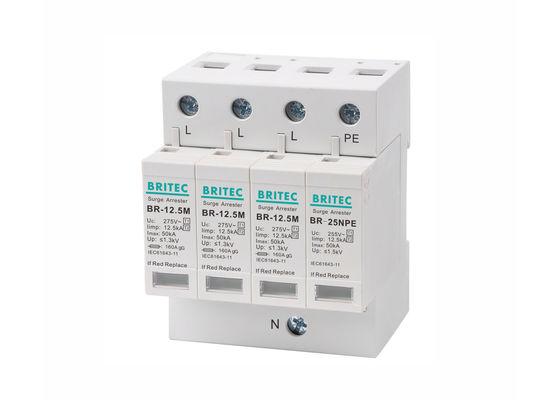

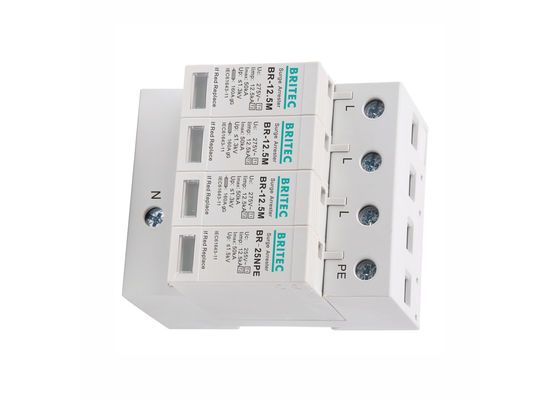

Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE

Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE

Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE
Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE
Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-12.5M-275 3+1
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: SPDs Model Number:: BR-12.5M-275 3+1
Material: Thermalplastic Pole Number:: 3P+NPE
Tu: -40℃-80℃ Uc: 275V
Standard:: IEC61643-11 / EN 61643-11 Iimp: 12.5kA
Type: Class B + C Application: Three Phase
Highlight:

single phase surge arrester

,

lighting surge arrester



Class B + C Three Phase SPDs 12.5kA 3P+NPE Surge Protection Device



Compact Class B + C Three Phase Electrical Surge Arrester Product Description:



• Type 1 and Type 2 SPD, Class I and Class II lightning arrester.
• Iimp: 12.5 kA / pole.
• Number of poles: 3P+NPE.
• Replaceable module.
• Visual fault signaling.
• Optional remote status signaling.
• Earthing systems: TT and TN-S system.
• Compliant with EN / IEC 61643-11 standards, tested and specified according to both T1 and T2 test classes.



Compact Class B + C Three Phase Electrical Surge Arrester Characteristics:



  BR-12.5M-275 3+1
SPD classification according to EN 61643-11 Type 1 + Type 2
SPD classification according to IEC 61643-11 Class I + Class II
Max. continuous operating a.c. voltage                         Uc 275V
Lightning impluse current (10/350us)                          Iimp 12.5kA
Nominal discharge current (8/20us) (L-N / N-PE)           In 20kA / 40kA
Max. discharge current (8/20us) (L-N / N-PE)            Imax 50kA / 70kA
Voltage protection level (L-N / N-PE)                             Up ≤1.3kV / ≤1.5kV
Voltage protection level 5kA (L-N / N-PE)                     Up ≤1.0kV / ≤1.5kV
Max. backup fuse 160A gG
Response time (L-N / N-PE)                                           tA ≤25ns / ≤100ns
Operating temperature range                                         Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Protection degree IP20
Enclosure material                  Thermal plastic UL94-V0


Dimension:



Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE 0


Compact Class B + C Three Phase Electrical Surge Arrester Application:

• Prevent overvoltage effects induced during a lightning strike and to prevent switching overvoltage.
• Protection against transient overvoltage for 230/400 V~ power networks (50/60 Hz).
• For general protection of main distribution board.
• For general protection of big installations and protection of small installations with external lightning protection.

Compact Class B + C Three Phase Electrical Surge Arrester Installation:

To be installed in low-voltage distributions at the boundary of LPZ 0–LPZ 1 zones and higher.

Certification:

Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE 1

Shipping:

Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE 2


About us:



Wenzhou Britec Electric Co., Ltd. has been committed to low voltage surge arrester products’ designing, R&D, manufacturing and marketing for 17 years. Britec factory locates in Wenzhou, Zhejiang, China. We own well-trained workers, rich experience production and R&D engineers. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as CE, CB, TUV. Our team can develop and test new products to meet variable markets’ tailored demands. Britec branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 50+ countries and districts.



Compact Class B + C Three Phase Electrical Surge Arrester SPDs 12.5kA 3P + NPE 3



FAQ:



Q1: We have our own design, do you offer OEM & ODM servies?

  A: Yes, please share with us your detailed requirements and drawing.



Q2: How about the MOQ requirement for surge protection?

  A: 100pcs.



Q3: If sample fee can be free or refundable?

  A: Sample fee (wihin USD150) can be refunded after receiving firm order.
