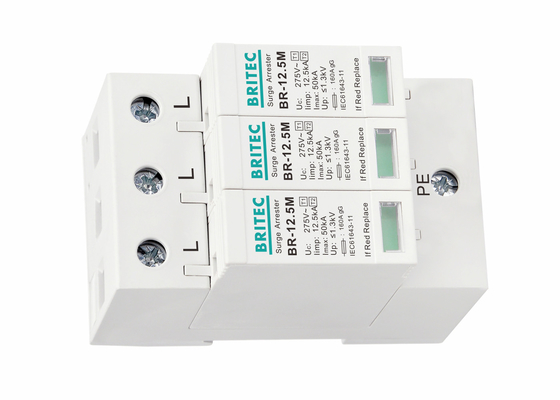

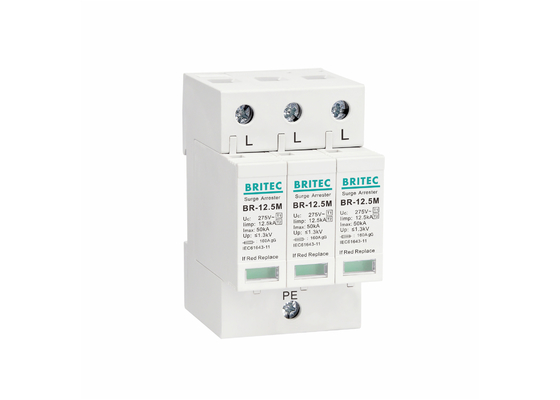

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System
T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System
T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System

Large Image :  T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-12.5M-275 3P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System

Description
Item Name:: Surge Protective Model Number:: BR-12.5M-275 3P
Uc: 275V Pole Number:: 3P
Tu: -40℃-80℃ Iimp: 12.5kA
Standard:: IEC/EN61643-11 Material: Thermal Plastic UL94-V0
Type: T1+T2 Phase No.: 3 Phase
Highlight:

lightning arrester surge protector

,

single phase surge arrester


T1 + T2 Surge Protector limp 12.5 kA 3P Surge Arrester TN-C System

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester Characteristics:


• Protection class: Type 1 + Type 2, Class I + II.
• Pole number: 3P.
• Iimp: 12.5kA.
• With plug-in modules and status indicators.
• In accordance with EN / IEC 61643.
• The use of high-performance varistor permits a rapid response time and a low protection level.
• Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring.


T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester Product Details:


 BR-12.5M-275 3P
SPD classification according to EN 61643-11Type 1 + Type 2
SPD classification according to IEC 61643-11Class I + Class II
Max. continuous operating a.c. voltage                       Uc275V
Lightning impluse current (10/350us)                        Iimp12.5kA
Nominal discharge current (8/20us)                              In20kA
Max. discharge current (8/20us)                               Imax50kA
Voltage protection level                                               Up≤1.3kV
Voltage protection level 5kA                                        Up≤1.0kV
Max. backup fuse160A gG
Response time                                                              tA≤25ns
Operating temperature range                                       Tu-40℃—80℃
Operating state / fault indicationgreen / red
Cross-section area (Min.)4mm2
Cross-section area (Max.)35mm2
For mounting on35mm Din rail
Enclosure material                  Thermal plastic UL94-V0
Degree of protectionIP20


Dimension:


T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System 0


T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester Application:

• For discharging lightning currents and protecting against voltage surges.
• Used to guard sensitive equipments from voltage spike.
• Suitable as the first step of protection in incoming power supply panels and areas with exposure to the atmosphere, where installations are usually provided with an external lightning protection system.
• Widely used to industry and automation, commercial and residential installations, telecom & IT & data centers, water treatment, smart grid & LV metering, photovoltaic & wind.


Company Information:

Wenzhou Britec Electric Co., Ltd is a manufacturer of low voltage surge arrester with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System 1

Certificate:

T1 + T2 Surge Protector Iimp 12.5 KA Surge Arrester 3 Phase TN - C System 2

FAQ:

Q1: What payment mrthod do you accept?
  A: T/T, Paypal, etc.

Q2: What is your product quality?
  A: Our raw materials are purchased from qualified suppliers, and we have a strong quality control team to guarantee our products quality.

Q3: Do you accept OEM/ODM?
  A: We accept OEM, as well as a professional team for customer ODM services.

Q4: Where can I get detailed specification regarding this product? Catalogue and price list?
  A: Please contact me for details, thanks!

Q5: How to work with us?
  A: Normally, after order confirmed and deposit paid, mass production will be arranged. We'll keep you posted about status of production. When it's finished, we will arrange shipment to you.
