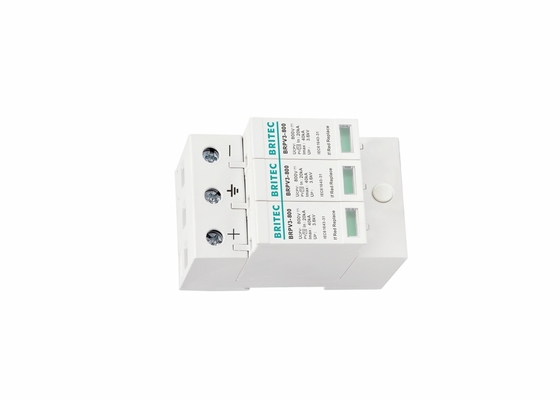

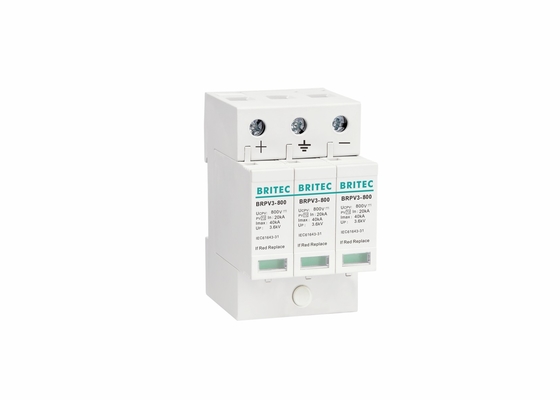

SPD DC 800V Electrical Lightning Surge Protector Solar Pv Surge Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRPV3-800

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	DC Surge Protector
Model Number:	BRPV3-800	Item Name:	Solar SPD
Material:	Thermal Plastic UL94-V0	Ucpv:	800V
Pole Number:	3P	Tu:	-40℃-80℃
In:	20kA	Standard:	IEC61643-11
High Light:	dc surge suppressor , dc surge protector solar

Solar SPD DC 800V Electrical Lightning Surge Protector for PV Solar System

SPD DC 800V Electrical Lightning Surge Protector Characteristic:

• Type: Surge protector.

• Response time (ns) : <=25.

• Plug surge protective device.

• Model Number: BRPV3-800.

• Protective level up (KV): 3.6.

• Max continuous operating voltage: 800V.

• Nominal discharge current (8/20s) In (KA): 20.

• Max discharge current (8/20s) Imax (KA): 40.

• Built-in temperature control circuit technology.

• The configuration remote communication interface, can realize remote control.

• The visual window color said protector working state; green (normal), red (fault).

SPD DC 800V Electrical Lightning Surge Protector Product detail:

3 Mod	BRPV3-800
SPD classification according to EN61643-11	Type 2
SPD classification according to EN50539-11	Class II
Max. continuous operating dc voltage Ucpv	800V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤3.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
Transport Package	Carton Box

Dimension:

SPD DC 800V Electrical Lightning Surge Protector Solar Pv Surge Protection 0

SPD DC 800V Electrical Lightning Surge Protector Application:

• Suitable for the new energy solar power generation system with the working voltage of 800V.

• Used to limit the instantaneous overvoltage of the power line and signal transmission line to the voltage range that the equipment or system can withstand, or A powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.

SPD DC 800V Electrical Lightning Surge Protector Advantage:

• No load current.

• High pass flow.

• Is customized: Yes

• High working voltages.

• High safety performance.

• Plug and pull design, easy to maintain.

• Safety super wide electrical spacing and creepage distance.

SPD DC 800V Electrical Lightning Surge Protector Installation:

The installation position is in the total power supply system of direct current circuit, to protect the indirect lightning current, direct lightning current or other instantaneous overvoltage.

Certification:

Company information:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has gothighly praise from customers.

FAQ:

Q1. Can I have a sample order for surge arrester?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 7 days, mass production time needs 3 weeks.

Q3. Do you have any MOQ limit for surge protection order?
A: Low MOQ, 100pcs.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for SPDs?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms and places deposit for formal order. Fourthly We arrange the production.
