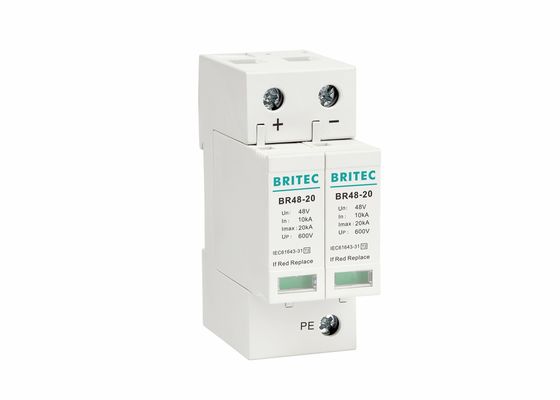

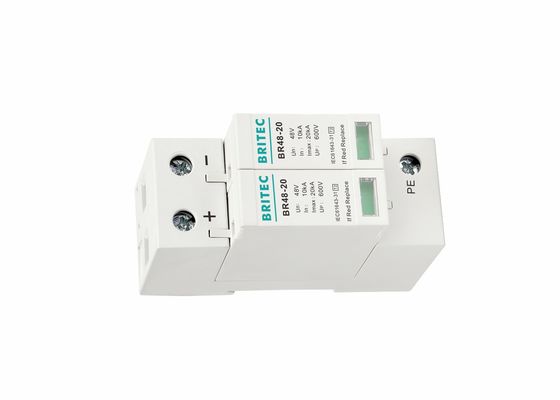

20 KA Class II DC Surge Protection Device DIN Rail 48V SPD Characteristic:
• DC power surge protector.
• Compact design.
• Pluggable module.
• Indoor/Outdoor: Indoor.
• For mounting: DIN-Rail.
• Service Voltage: 48Vdc.
• SPD Technology: MOV.
• The varistor have thermal disconnection devices.
• Designed according to IEC 61643-31/GB 18802.1.
• Fault indication via red mark in the inspection window.
• This SPD for DC is IP20 rated for solutions that require this level of protection.
• This surge suppression equipment device has maximum amperage of 20 kA.
| 2 Mod |
BR48-20 |
| SPD classification according to IEC61643-31 |
Class II |
| Operating Voltage Un |
DC 48V |
| Max. Continuous Operating Voltage Uc |
DC 65V |
| Nominal discharge current (8/20us) In |
10kA |
| Max. discharge current (8/20us) Imax |
20kA |
| Voltage protection level Up |
＜600V |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Nominal Load Current |
60A |
| Leakage current |
≤20µA |
| Protection Mode |
+/PE,-/PE |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
20 KA Class II DC Surge Protection Device DIN Rail 48V SPD Application:
• Prevent damage from overvoltage DC that can be caused by lightning surge and other strong changes in electricity.
• Protect sensitive electric and electronic equipment from transient voltage.
• Protect equipment connected to DC power supplies from lightning surges.
• Specially used for solar photovoltaic system 48Vdc.
20 KA Class II DC Surge Protection Device DIN Rail 48V SPD Advantage:
• Very low Up protection level.
• With Reliable control.
• Pluggable module, easy for installation and maintenance.
• High discharge capacity, quick response.
20 KA Class II DC Surge Protection Device DIN Rail 48V SPD Installation instruction:
It is connected in parallel on the line to be protected.
