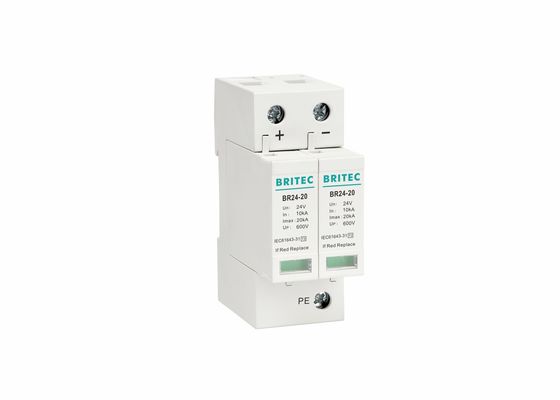

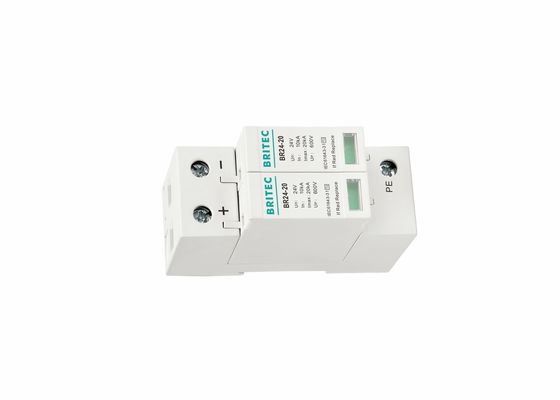

Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection

Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection

  • Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection
  • Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection
Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR24-20
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: Class II
Model Number: BR24-20 Item Name: DC Surge Protector
Material: Thermoplastic UL94-V0 Un: DC 24V
Pole Number: 2P Tu: -40℃-80℃
Uc: DC 35V Standard: IEC61643-31
High Light:

12v dc surge protector

,

dc surge protector solar

Multiple DC Power TVSS SPD 24V Surge Protector for Electrical Power Protection



Multiple Power TVSS SPD 24V DC Surge Protection Device Characteristic:


• DC power supply SPD.
• With working indication window.
• Designed according to IEC standards.
• The main module and the base are replaceable.
• Mounting on symmetrical rail 35mm (EN60715).
• Degree of protection according to IEC/EN60529: IP20.
• With temperature control circuit breaker and built-in over currents protective circuit.



Multiple Power TVSS SPD 24V DC Surge Protection Device Product detail:



2 Mod BR24-20
SPD classification according to IEC61643-31 Class II
Operating Voltage                                        Un DC 24V
Max. Continuous Operating Voltage             Uc DC 35V
Nominal discharge current (8/20us)               In 10kA
Max. discharge current (8/20us)               Imax 20kA
Voltage protection level                                Up <600V
Response time                                               tA ≤25ns
Operating temperature range                       Tu -40℃-80℃
Operating state / fault indication green / red
Suggest Fuse 32A Gg
Technology MOV
Format Plug-in modular box
Protection Mode +/PE,-/PE
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Standards compliance    IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1



Multiple Power TVSS SPD 24V DC Surge Protection Device Application:

• Used for protection lightning of + (1)-PE,-(2)-PE (2P).
• Protect equipment connected to direct current (and alternating current) power supplies from lightning surges.
• Used to protect equipment connected to direct current power (as well as alternatives) against surges due to lightning.
• Used to DC electrical power distribution, DC electrical circuit of machine-room, DC electrical distribution board, DC electrical power distribution cabinet, DC electrical power supply equipment, and 24V DC bus.

Multiple Power TVSS SPD 24V DC Surge Protection Device Advantage:

• Module designed.
• No follow currents.
• High MOV resistance.
• Color is customizable.
• Logo is customizable.
• 35mm din rail mounted.
• High discharge capacity.
• Package is customizable.
• Mechanical Status Indicator.
• Easy changing of the surge protection module.

Multiple Power TVSS SPD 24V DC Surge Protection Device Installation:

It is connected in parallel on the line to be protected.



Company information:



Wenzhou Britec Electric Co.,Ltd. specializes in R&D, production, sales SPDs. Products sold at home and abroad, well received by customers. Our mission is to produce highly cost-effective surge protection products for our customers. The company is determined to stick to a principle of "advanced technology and best quality" and provide the customers with perfect lightning arrester products. Britec has and will put customers first.



Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection 0



Certificate:



Multiple Power TVSS SPD 24V DC Surge Protection Device Electrical Power Protection 1



FAQ:



Q1. Where is your factory?

  A: Our factory is located in Yueqing city, Zhengjiang Province.



Q2. When can I get the quotation?

  A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please tell us in your e-mail so that we will pay more attention to it.



Q3. How can I get a sample to check your quality?

  A: After price confirmation, you can require for samples to check our quality. If you need the sample, we will charge for the sample fee and express fee. Moreover, the sample fee can be refunded after you place the order to us.



Q4. What kind of files do you accept for drawing?

  A: PDF, Core Draw, high resolution Jpg, etc.



Q5. Can you do the design for us?

  A: Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
