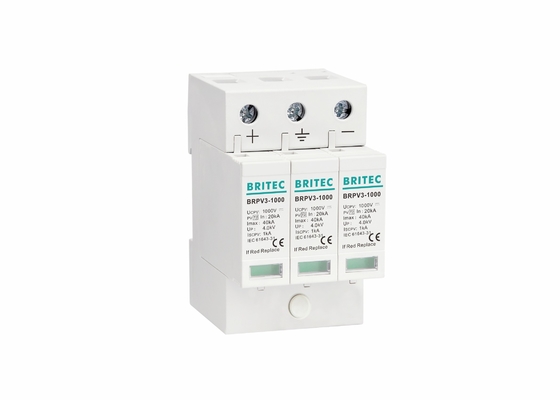

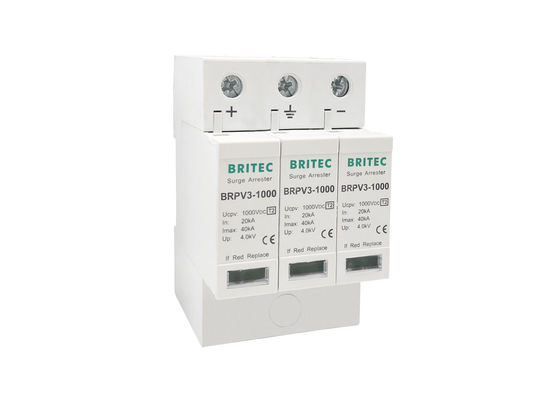

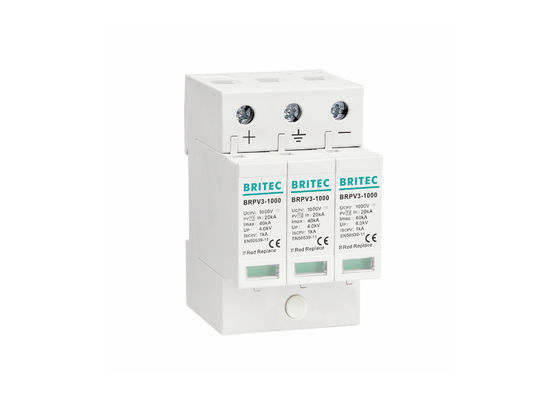

Name: Solar SPD 1000V Surge Protector DC 40kA Power Transient Voltage Suppression
Brand: BRITEC
SKU: BRPV3-1000
Rating: 4.6 (193 reviews)

Home Products DC Surge Protection Device

Solar SPD 1000V Surge Protector DC 40kA Power Transient Voltage Suppression

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BRPV3-1000

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	Type 2
Model Number:	BRPV3-1000	Item Name:	DC Surge Protector
Material:	Thermoplastic	Ucpv:	1000V
Pole Number:	3P	Tu:	-40℃-80℃
Imax:	40kA	Standard:	IEC61643-31
Highlight:	dc surge suppressor , dc surge protector solar

Solar SPD 1000V Surge Protector DC 40kA Power Transient Voltage Suppression

Solar SPD 1000V Surge Protector Characteristic:

• Ucpv: 1000 V dc.

• Mounting: Din rail 35mm.

• Optional remote signaling.

• Visual end of life indicators.

• Type 2 over voltage protection.

• Nominal discharge current (8/20μs): 20 kA.

• Maximum discharge current (8/20μs): 40 kA.

• I/O Connections: Multi core wire: 4-25mm2.

• Protection mode: +/----PE, -/+---PE, +/---- -/+.

• It is well tested and certified by the IEC 61643-31 standards.

• The core parts are metal oxide varistor components with high discharge capacity.

• Plug-in format, surge protection device is consisting of a base part and 3 plug-in high energy MOV protection modules.

Solar SPD 1000V Surge Protector Product detail:

3 Mod	BRPV3-1000
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	1000V
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤4.0kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

Solar SPD 1000V Surge Protector DC 40kA Power Transient Voltage Suppression 0

Solar SPD 1000V Surge Protector Application:

• Applied for the protection of photovoltaic devices.

• Protect against lightning surge voltage in solar system (photovoltaic power supply system).

• Suitable for all PV applications: large-scale, rooftop and self-consumption (off-grid) DC installations.

• Protect the solar equipment like solar panels and solar inverter from surges damage or overvoltage.

Advantage:

• Easy to be replace with pluggable design.

• 2 years warranty.

Noted:

• These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side).

• If possible, the connection between the external Solar PV Array and the internal power control equipment should be underground or electrically shielded to limit the risk of direct lightning strikes.

Certification:

Shipping:

According to customer's requirement, we usually shipping the product by express, air and sea also optional.

Solar SPD 1000V Surge Protector DC 40kA Power Transient Voltage Suppression 2

FAQ:

Q1: What is the MOQ order for your product?

A: 100pcs.

Q2: Do you supply OEM service?

A: Sure.

Q3: Can I get a lower price if I make the large order?

A: Of course! Cheaper prices with larger order.

Q4: What is the delivery date?
