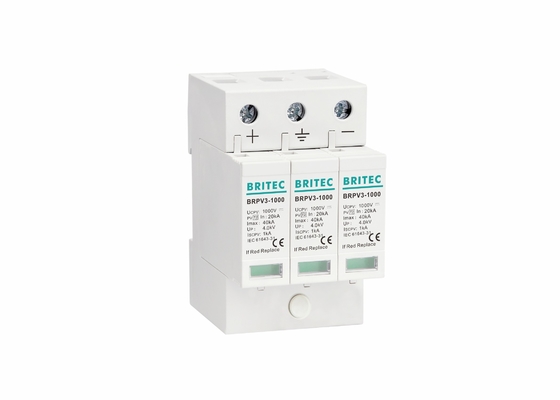

Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System

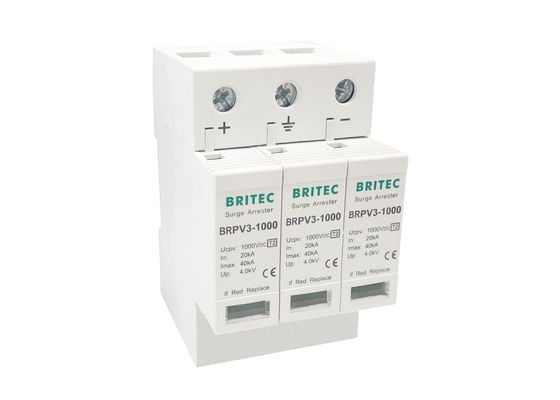

Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System

  • Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System
  • Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System
Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: Class II
Model Number: BRPV3-1000 Item Name: Dc Power Surge Protector
Material: Thermoplastic Ucpv: 1000V DC
Pole Number: 3 Mod Tu: -40℃-80℃
Imax: 40kA Standard: IEC61643-31
Highlight:

dc surge suppressor

,

dc surge protector solar

Energy Lightning Protection DC Power Surge Protector SPD for Photovoltaic System



Energy Lightning Protection DC Surge Protection Device SPD Characteristic:


• Class C surge protection for photovoltaic.
• Up: ≤4.0kv.
• Pluggable module.
• Response time: ≤25ns.
• Rated voltage: DC1000V.
• Provide remote alarm control.
• Material: Flame retardant material.
• Designed according to IEC 61643-31.
• Green window will change when fault.
• Discharge current In: 20kA / Imax: 40kA.



Energy Lightning Protection DC Surge Protection Device SPD Product detail:


3 Mod BRPV3-1000
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                     Ucpv 1000V
Nominal discharge current (8/20us)                              In 20kA
Max. discharge current (8/20us)                               Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                   Up ≤4.0kV
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermoplastic UL94-V0
Degree of protection IP20



Dimension:

Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System 0

Energy Lightning Protection DC Surge Protection Device SPD Application:

• Applied in modular SPD Class II (Class C) for photovoltaic power supply system.
• Protect against lightning surge voltages in photovoltaic power supply networks.
• Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.

Energy Lightning Protection DC Surge Protection Device SPD Advantage:

• Easy for installation and maintenance.
• High discharge capacity.
• Quick response.

Why Choose Us:

• Over 17 years’ experience in production and processing.
• Faster product innovation, production specialization, timely delivery.
• Strict quality inspection procedure.

Certification:

Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System 1

Company profile:

Wenzhou Britec Electric Co.,Ltd. specializes in R&D, production, sales SPDs. Products sold at home and abroad, well received by customers. Our mission is to produce highly cost-effective surge protection products for our customers. The company is determined to stick to a principle of "advanced technology and best quality" and provide the customers with perfect lightning arrester products. Britec has and will put customers first.

Energy Lightning Protection DC Surge Protection Device SPD For Photovoltaic System 2

FAQ:

• Q: When I can receive quotation and detail information after send the enquiry?
   A: Reply will be sent in 24hours.

• Q: How's the delivery? Because I really need them is urgently?
   A: Samples cost 7 days. Bulk order cost 20 days.

• Q: If i want to release order, what's the payment method you accept?
   A: We accept T/T, PayPal and so on.
