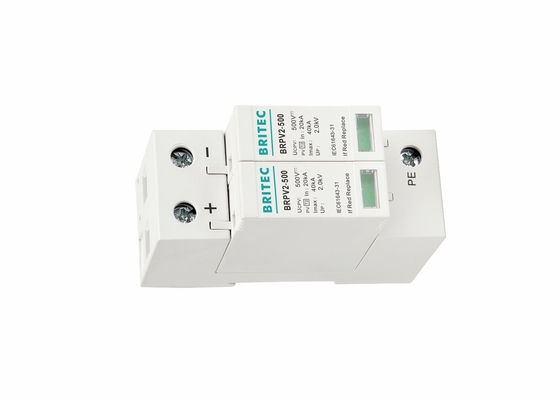

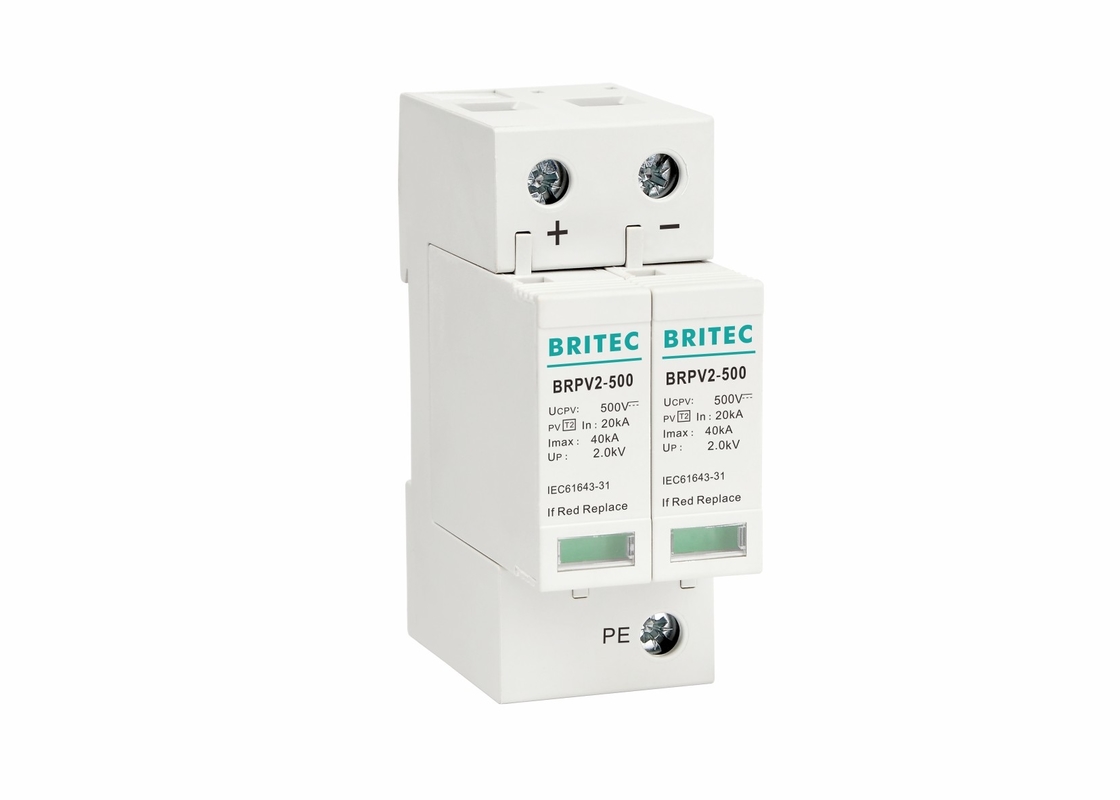

Name: 2P Pv Surge Protection Device 40KA DC Surge Protector 500V For PV Solar System
Brand: BRITEC
SKU: BRPV2-500
Rating: 4.5 (120 reviews)

Home Products DC Surge Protection Device

2P Pv Surge Protection Device 40KA DC Surge Protector 500V For PV Solar System

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRPV2-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	DC Surge Protector
Model Number:	BRPV2-500	Item Name:	PV Solar SPD
Material:	Thermoplastic UL94-V0	Ucpv:	500V DC
Pole Number:	2P	Tu:	-40℃-80℃
In:	20kA	Standard:	IEC61643-31
Highlight:	12v dc surge protector , dc surge protector solar

2P Surge Protective Device 20KA DC Surge Protector 500V PV Solar System

2P Pv Surge Protection Device 20KA DC Surge Protector Characteristic:

• In (8/20us): 20kA.

• Imax (8/20us): 40kA.

• Every pole achieves 500V.

• Din-rail mountable.

• Replaceable module.

• IP20 finger-safe design.

• Remote indicator (optional).

• EN / IEC 61643-31: Type 2 / Class II.

• The response time in the 25 nanosecond.

• The shell is made of flame retardant material.

• Consisting of a base part and plug-in protection modules.

• Indicator window is obvious (green is OK, red indicates failure).

• High energy MOVs equipped with specific thermal disconnections and related failure indicators.

2P Pv Surge Protection Device 20KA DC Surge Protector Product detail:

2 Mod	BRPV2-500
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	500V DC
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤2.6kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

2P Pv Surge Protection Device 20KA DC Surge Protector Application:

• Protecting low voltage equipment from surge damages.

• Protect against lightning surge voltages in solar system (photovoltaic power supply system).

• Used in lightning protection of solar photovoltaic power generation system or other DC power supply system and make the system against lightning overvoltage.

• Used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

2P Pv Surge Protection Device 20KA DC Surge Protector Advantage:

• High security.

• Quick response.

• Visual indicator.

• Easy installation.

• Stable performance.

• Low residual voltage.

• Fire-retardant materials.

• Remote signaling can be achieved.

• High flow, high safety and stability.

2P Pv Surge Protection Device 20KA DC Surge Protector Installation instruction:

• These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.

• Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
