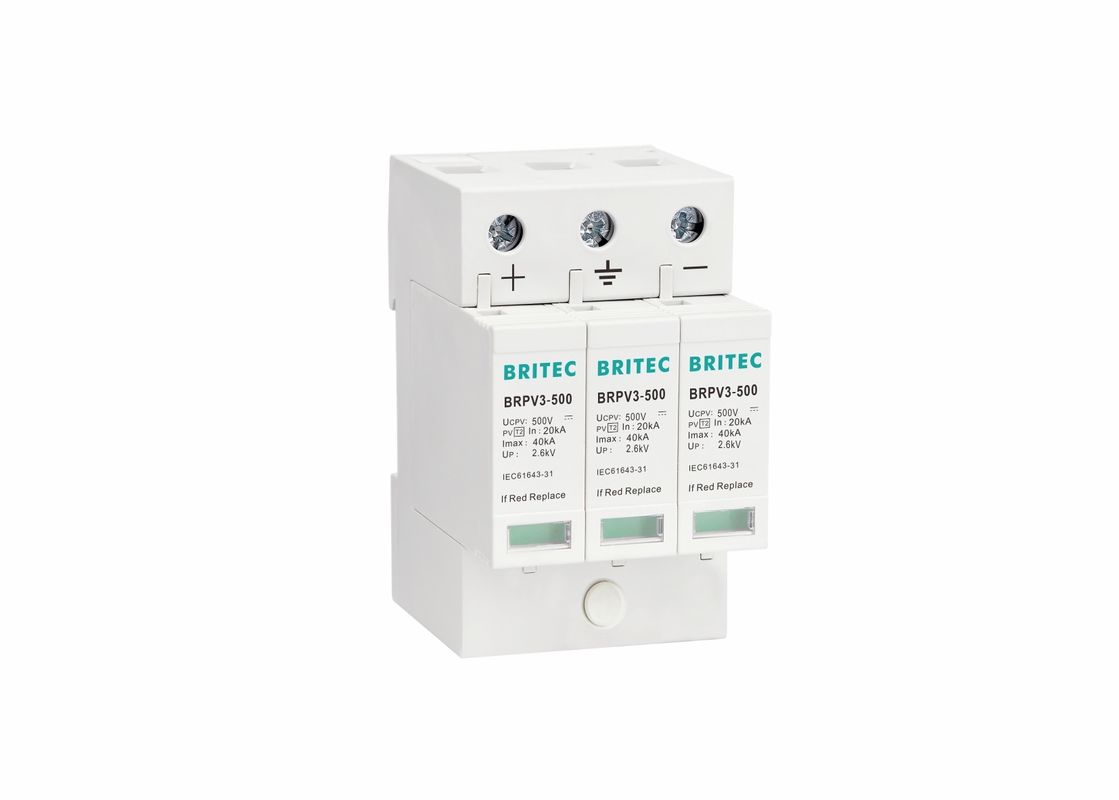

Long Life DC Surge Protection Device 500V Surge Arrester Superior SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRPV3-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Warranty:	2 Years
Pole:	3P	Voltage:	500V DC
Tu:	-40℃~80℃	Protection:	IP20
OEM:	Yes	Application:	Type 2
Payment Term:	T T, PayPal	MOQ:	100 Pcs
High Light:	12v dc surge protector , dc surge suppressor

Made In China DC Surge Protector Device 500V Surge Arrester Superior Quality SPD

Long Life DC Surge Protection Device 500V Surge Arrester Characteristic:

• DC Surge Protection Devices for Photovoltaic protection.

• Un dc: 500V.

• Class 2 / Type 2 available.

• Visual status indication.

• Remote signal contact: optional.

• Conform to IEC61643-31 standards.

• Common mode or Common + Differential mode protection.

• It is based on high energy PV equipped with specific thermal disconnections and related failure indicators.

Long Life DC Surge Protection Device 500V Surge Arrester Product detail:

3 Mod	BRPV3-500
SPD classification according to EN61643-31	Type 2
SPD classification according to IEC61643-31	Class II
Max. continuous operating dc voltage Ucpv	500V DC
Nominal discharge current (8/20us) In	20kA
Max. discharge current (8/20us) Imax	40kA
Voltage protection level [(DC+/DC-)→PE] Up	≤2.5kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃-80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20

Dimension:

Long Life DC Surge Protection Device 500V Surge Arrester Superior SPD 0

Long Life DC Surge Protection Device 500V Surge Arrester Application:

• Protect against lighting surge voltages in photovoltaic power supply networks.

• Recommended use at both ends of the DC power supply line (solar panel side and inverter/converter side).

• Suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection.

• Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.

Long Life DC Surge Protection Device 500V Surge Arrester Advantage:

• Low residual voltage.

• Visual warning module.

• Guide rail type installation.

• High flame retardant materials.

• High-performance wire frame.

• Plug type module, easy to change.

Long Life DC Surge Protection Device 500V Surge Arrester Installation instruction:

These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection.

Our company:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has gothighly praise from customers.

Long Life DC Surge Protection Device 500V Surge Arrester Superior SPD 1

Certificate:

FAQ:

Q1: Are you trading company or manufacturer?
A: We are factory.

Q2: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. Or it is 20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but it is not free.

Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
