| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR TY230-110P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Type: | Signal Lightning Protective |
|---|---|---|---|
| Model Number: | BR TY230-110P | Item Name: | DC Surge Protector |
| Material: | Thermal Plastic | Un: | 110v DC |
| Uc: | 130v DC | Tu: | -40℃-80℃ |
| In: | 5kA | Up: | 780v |
| High Light: | dc surge suppressor,dc surge protector solar |
||

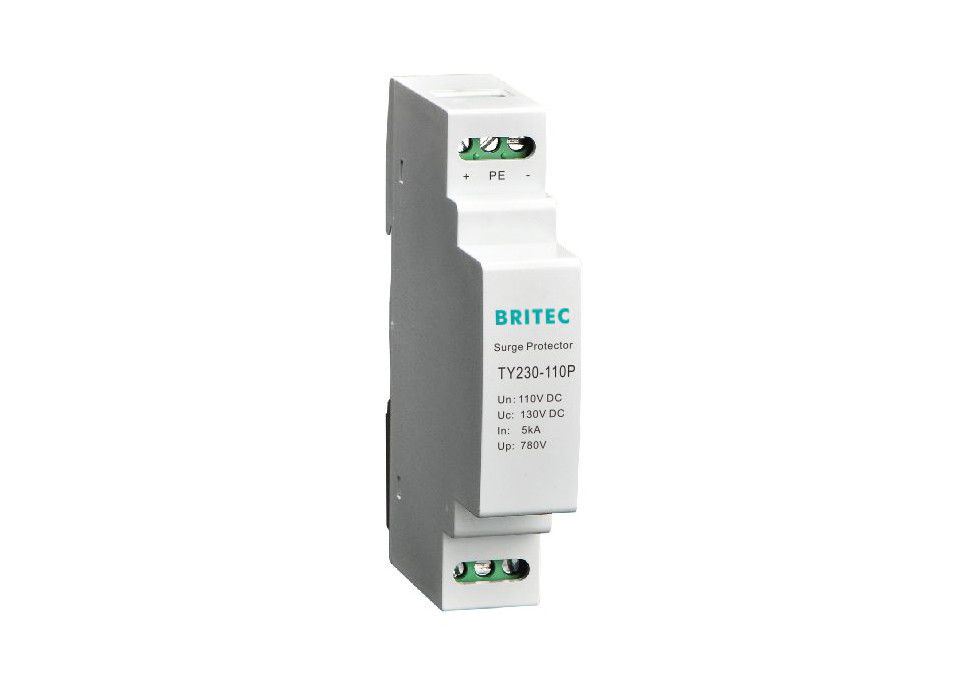

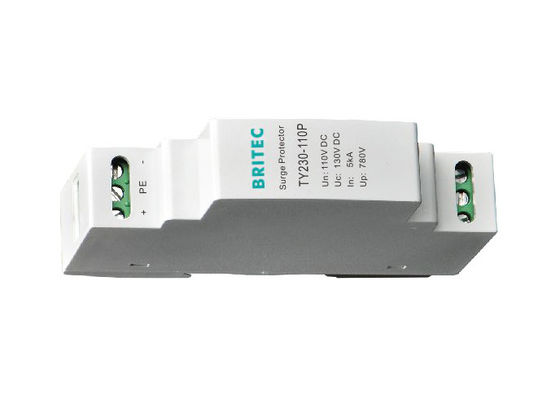

110v DC Surge Protector Industrial Control Signal Lightning Protective
Small 110v Dc Surge Protection Device Characteristic:
Small 110v Dc Surge Protection Device Product detail:
| Specification | BR TY230-110P |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | DC 110V |
| Max. Continuous Operating Voltage Uc | DC 130V |
| Leakage current | ≤20µA |
| Nominal discharge current (8/20μs) In | 5kA |
| Max. Discharge Current(8/20μs) Imax | 10kA |
| Voltage protection level Up | ≤780V |
| Response time tA | <25ns |
| Protection Mode | "+"-PE/"-"-PE |
| Operating temperature range Tu | -40℃-80℃ |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
Certification:
Company information:
Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has gothighly praise from customers.
Production line:
FAQ:
Q1: Are you the manufacturer or trader?
R: We are a professional manufacturer located in Yueqing city, Zhejiang province, China.
Q2: What is your after-sales service and delivery?
R: We can reply the customer's question and resolve it within 24 hours everyday and give full technical support in time about our products.The delivery is base on the order quantity, generally we need 20 days can finish it.
Q3: What is the quality warranty about your product?
R: About the quality warranty, we have the quality certificates like CE, CB, TUV etc. for our surge protection. Meanwhile, we also can supply 2 years quality guarantee.
Q4: What is your main market?
R: The main market for us is in South America, South-East Asia, Africa, Europe and so on.
Q5: Do you accept ODM and OEM?
R: Yes. Our R & D team owns latest technology, can develop and produce products base on the customers' drawing with their own brand.
