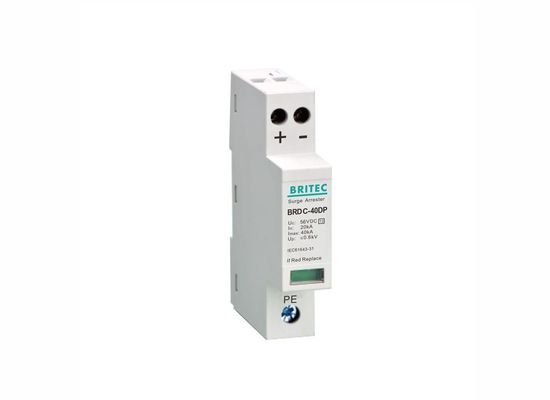

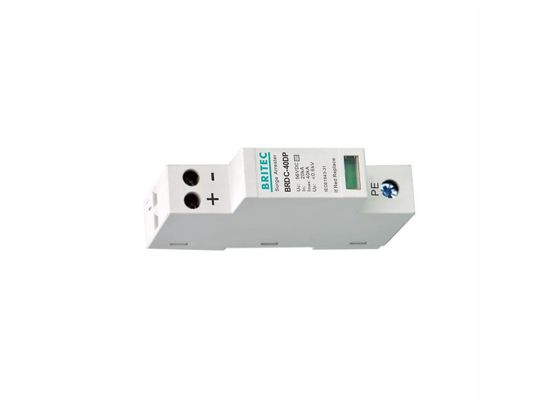

One - Mod Pv Surge Protector DC 24V 56V Surge Protective Characteristic:
• Type 2 DC Power Surge Protector.
• With working indication window.
• Available in Voltages 12 to 130V dc.
• Module and 35mm din rail mounting.
• Designed and manufactured according to IEC61643-31 standard.
• Accordance with the criterion of surge protective devices connected to low-voltage power systems–requirements and test methods.
| | BRDC-40DP |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to IEC61643-31 | Class II |
| Applicable Power Supply System | DC Power Supply System |
| Nominal voltage Un | DC 24V |
| Max. continuous operating voltage Uc | DC 56V |
| Nominal discharge current (8/20us) In | 20kA |
| Maximum Discharge Current (8/20µs) Imax | 40kA |
| Leakage Current | ≤20uA |
| Voltage protection level Up | ≤600V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Relative Humidity | ≤95%RH |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 2.5mm2 |
| Cross-section area (Max.) | 16mm2 |
| Protection Mode | "+"-PE, "-"-PE |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Remote Alarm Function | Optional |
One - Mod Pv Surge Protector DC 24V 56V Surge Protective Application:
• Protect equipment connected to DC power supplies from lightning surges.
• Suitable for equipment of small DC power supply voltage behind LPZ2 protection zone of buildings.
• Suitable for communications, TV broadcasting, computer room, automatic control, mechanical and electric control, mechanical and electrical equipment and related DC power equipment.
One - Mod Pv Surge Protector DC 24V 56V Surge Protective Installation:
It is connected in parallel on the line to be protected.
Company information:
Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPDs. We are specialized in surge protection device. We can offer lightning arrester with specifications and uses according to clients' requirements. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.
Certificate:
FAQ:
• Q: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
• Q: How's the warranty of SPD?
A: 2 years.
• Q: What's your shipment method?
A: We ship by Express, by air, by sea.
• Q: If i want to release order, what's the payment method you accept?
A: We accept T/T, PayPal etc.
