DC Surge Protection Device
>

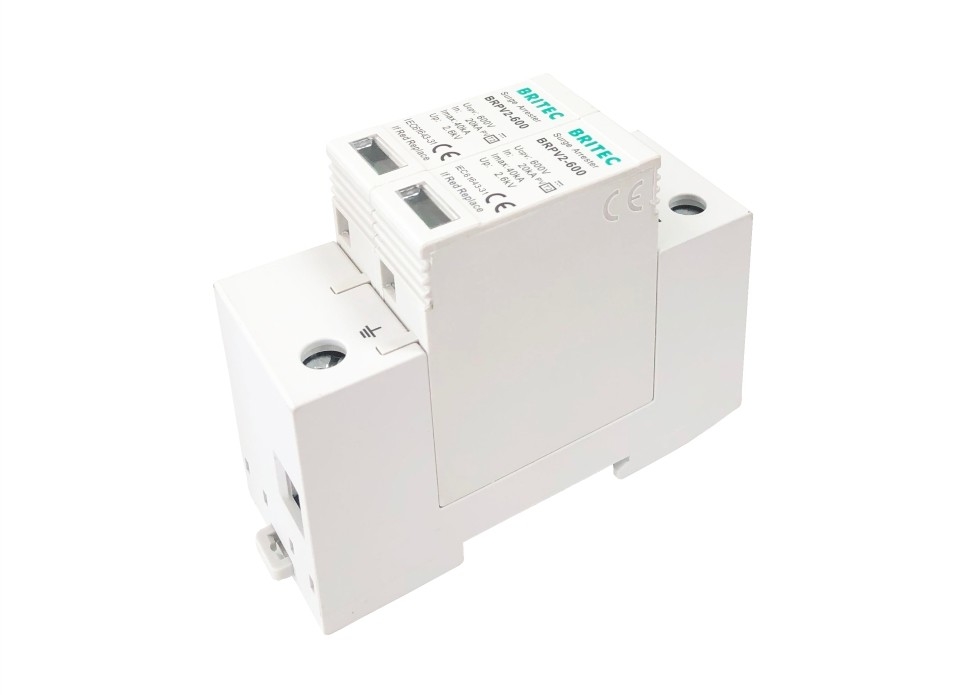

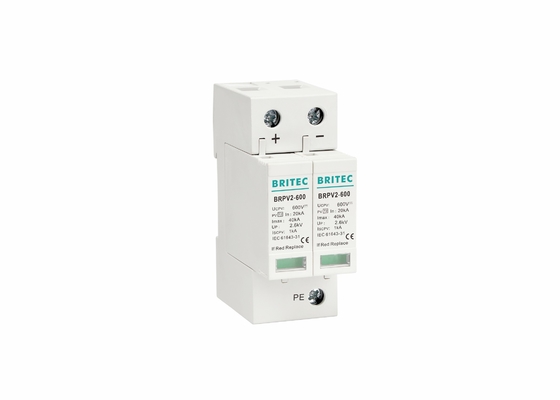

Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts

Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRPV2-600
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Model Number:
BRPV2-600
Place Of Origin:
Zhejiang, China (Mainland)
Type:
Solar SPD
Model Number:
BRPV2-600
Item Name:
DC Surge Protector
Material:
Thermoplastic
Ucpv:
500V, 600V, 800V, 1000V
In:
20kA
Imax:
40kA
Pole Number:
2P
Tu:
-40℃-80℃
Highlight:

High Light

Highlight:

dc surge suppressor

,

dc surge protector solar

Trading Information
Minimum Order Quantity:
100 Piece/Pieces
Packaging Details:
EXPORT PACKING
Delivery Time:
Shipped in 15 days after payment
Payment Terms:
L/C, D/A, T/T, Western Union
Supply Ability:
50000 Piece/Pieces Month
Product Description

Solar SPD PV600 DC Surge Protector 2P DIN-Rail Mounted with Remote Contacts


Solar Spd Pv600 Dc Surge Protection Device Characteristic:



• Pluggable modular multi-pole PV SPD.
• Din rail mountable.
• EU Category: Type 2.
• Flame retardant PC shell
• Status indication as standard.
• Remote signaling contact: optional.
• Protective Elements: High Energy MOV.
• Complies with IEC61643-11 and EN61643-11.
• Mode of Protection: (DC+) – PE, (DC-) – PE, (DC+) – (DC-).
• This series’ working voltage covers 500V, 600V, 800V and 1000V.
• Built-in over current and over heat, temperature control open circuit technology.


Solar Spd Pv600 Dc Surge Protection Device Product detail:


2 Mod BRPV2-600
Housing Design Modular design
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                        Ucpv 600V
Nominal discharge current (8/20us)                                 In 20kA
Max. discharge current (8/20us)                                 Imax 40kA
Voltage protection level                                                  Up ≤2.6kV
Response time                                                                 tA ≤25ns
Protection Modes DC+/PE, DC-/PE
Protective Element MOV
Leakage Current (at 75%U1mA) <20μA
Short Circuit Current Ratings (SCCR) 20kA rms
Operating temperature range                                          Tu -40℃-80℃
Relative Humidity                0% to 95% noncondensing
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Remote Contacts Optional


Dimension:

Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts 0


Solar Spd Pv600 Dc Surge Protection Device Application:

• For use in photovoltaic systems.
• Suitable for the new energy wind power generation system.
• Used in photovoltaic combiner box and photovoltaic power supply box.
• For installation in the DC circuits of solar photovoltaic systems, string box, inverter.
• Protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.

Solar Spd Pv600 Dc Surge Protection Device Advantage:

• Module design.
• Fast response time.
• Remnant low voltage.
• Precision manufacture.
• Convenient installation.
• Small creepage current.
• Can realize remote control.
• Plug-in module and separate base.

Solar Spd Pv600 Dc Surge Protection Device Installation instruction:

It is installed in the main power system at DC circuit.



Workshop:



Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts 1



Certifications:



Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts 2



Our company:



Wenzhou Britec Electric Co., Ltd. We have the first-class production equipment and testing equipment. The related products have passed international certifications such as CE and TUV. At present, it has a series of AC surge protector, DC surge protection, data surge arrester, LED lightning arrester. High-standard products meet the diverse needs of the market.

Solar Spd Pv 600V Dc Surge Protection Device Din Rail Mounted With Remote Contacts 3

FAQ:

Q1: Are you a factory or trading company?
  A: Yes, we are factory, supplying OEM/ODM service.

Q2: What certification do you have?
  A: TUV/CB/CE/ISO report.

Q3: How about your after sales-service?
  A: 24 hours online service.

Q4: How about the delivery time?
  A: Sample delivered in 7 days. Order delivered in 20 days.
