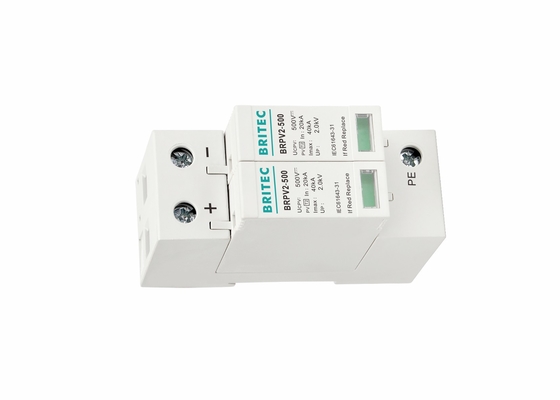

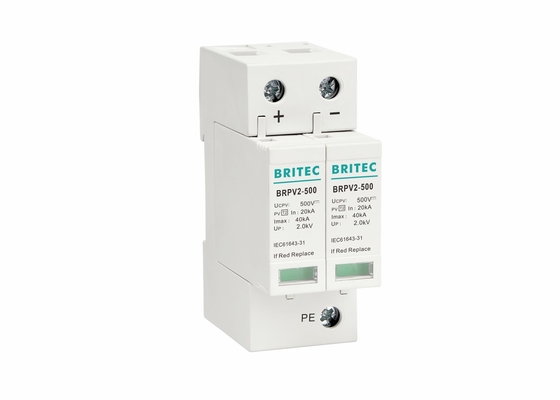

Power Surge Protector 2P DC Low-voltage Arrester Device for Solar PV System
2P DC Low - Voltage Arrester Device Power Surge Protector Characteristic:
• Type 2 surge protector for photovoltaic system.
• DIN rail mounting.
• Replaceable module.
• Designed for solar system.
• Discharge current range from 20KA to 40KA.
• The shell is made of flame retardant material.
• Indicator for remote failure alerts (optional).
• Indicator window is obvious (green is OK, red indicates failure).
• High energy MOVs equipped with specific thermal disconnections.
• Rated of 2 Poles can reach 500V DC, even can be customized to 12V DC, 24V DC, 48V DC.
2P DC Low - Voltage Arrester Device Power Surge Protector Product detail:
| 2 Mod |
BRPV2-500 |
| SPD classification according to EN61643-31 |
Type 2 |
| SPD classification according to IEC61643-31 |
Class II |
| Max. continuous operating dc voltage Ucpv |
500V |
| Nominal discharge current (8/20us) In |
20kA |
| Max. discharge current (8/20us) Imax |
40kA |
| Voltage protection level [(DC+/DC-)→PE] Up |
≤2.6kV |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
| Cross-section area (Min.) |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
Dimension:
2P DC Low - Voltage Arrester Device Power Surge Protector Application:
• For use in PV d.c. system at boundaries from LPZ 0B-1 and higher.
• Protect against lightning surge voltages in solar system (photovoltaic power supply system).
• Protect DC power equipment against lightning surge voltages in photovoltaic power supply network, such as inverters, combiner boxes and charge controllers.
2P DC Low - Voltage Arrester Device Power Surge Protector Advantage:
• No leakage.
• Failure status indicator.
• Convenient replacement.
• High discharge capacity.
• Fast clamp response, under 25ns.
• State-of-the-art surge protection technology.
2P DC Low - Voltage Arrester Device Power Surge Protector Installation instruction:
• Installation must be performed only by electrically skilled operator.
• These units must be installed in parallel on the DC networks to be protected.
• Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.
• If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.
Certificate:
Factory photos:
About Us:
Britec, a SPD manufacturer in China, which was founded in 2003. Main Products are AC surge arrester, PV (solar) surge protection, data surge protector, LED lightning protective device etc.
FAQ:
Q1. How about the warranty?
A: All products are Original new and have 2 years warranty.
Q2: What about the delivery time?
A: Normally 20 days after recieved the payment.
Q3: What about the shipment?
A: We can arrange shipment by DHL, FedEx, UPS, TNT, EMS with competitive price, of course, customers can also use their own freight forwarders.
Q4: How about the terms of payment?
A: We accept T/T, Paypal etc.
