| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR48-40 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Type: | Solar Surge Protection |
|---|---|---|---|
| Model Number: | BR48-20 | Item Name: | DC Surge Protector |
| Material: | Thermoplastic UL94-V0 | Un: | 48V DC |
| Pole Number: | 2P | Tu: | -5℃-40℃ |
| Uc: | 65V DC | Standard: | IEC61643-31 |
| High Light: | 12v dc surge protector,dc surge protector solar |
||

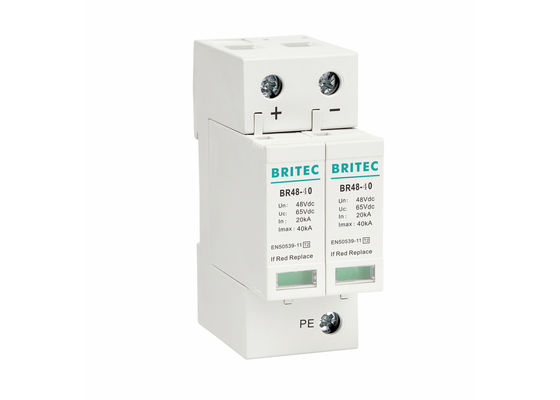

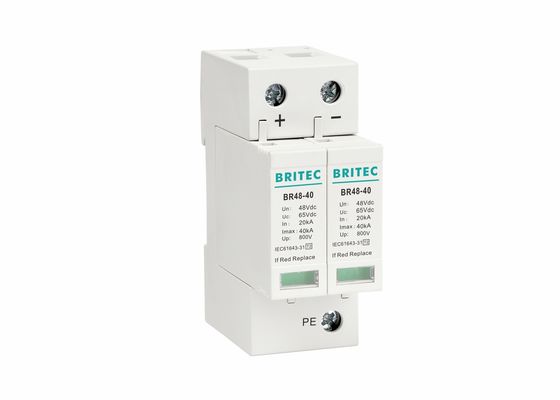

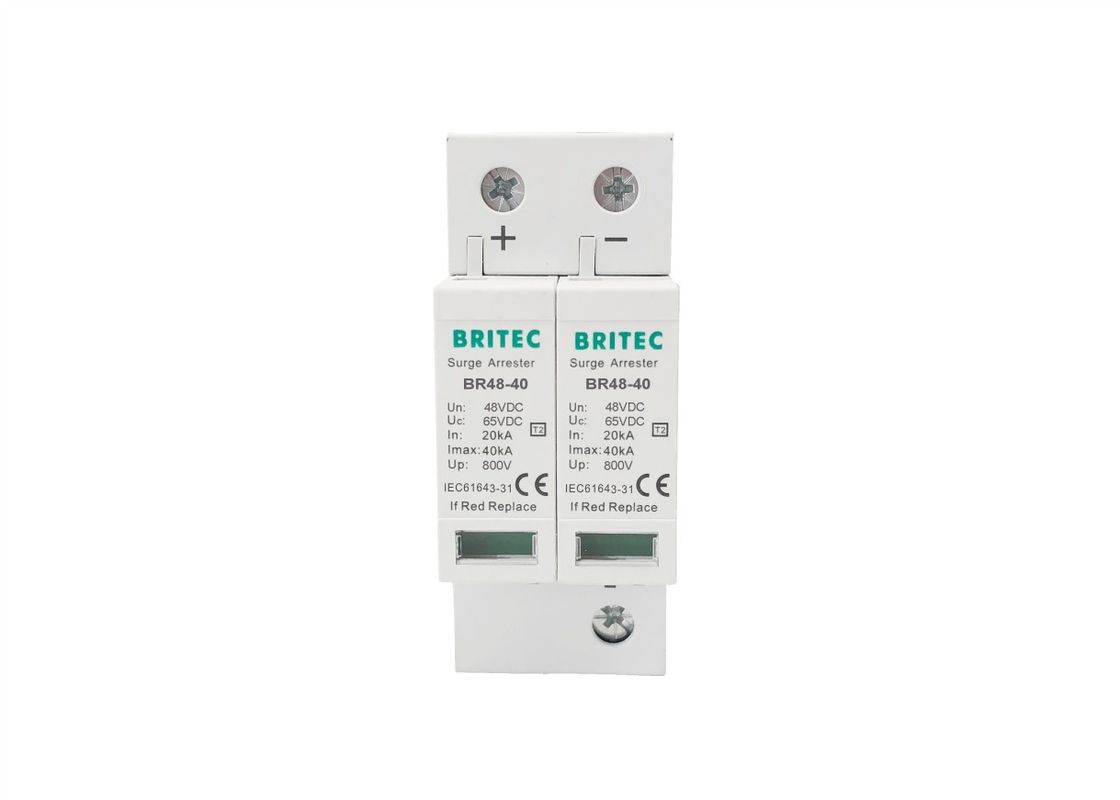

2P 40KA Solar Surge Protection Device 48V DC Type 2 Lightning Surge Protector
2P 40KA Solar Surge Protection Device Characteristic:
2P 40KA Solar Surge Protection Device Product detail:
| 2 Mod | BR48-40 |
| SPD classification according to IEC61643-31 | Class II |
| Operating Voltage Un | 48V DC |
| Max. Continuous Operating Voltage Uc | 65V DC |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Suggest Fuse | 63A |
| Technology | MOV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Remote Signalling | with remote signalling contact |
Dimension:
Certifications:
Company profile:
Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.
Workshop:
Test:
Shipping:
FAQ:
Q1: Can you make new mold if needed?
A: Yes we are open to new models. Our technician is very experienced. Please talk to our sales team for details.
Q2: How do I request for a quotation?
A: You can send us messages directly. Usually we will get back to you within 24 hours. If you prefer to contact us via email. Please send us a message with your email address, we will get back to you ASAP.
Q3: Do you accept small order quantity?
A: We are SORRY but in general we do not accept orders below the Minimum Order Quantity since our company applies low inventory policy. However, please do not hesitate to ask in case we happen to be manufacturing what you need. We can simply add your order along with it if you do not need any customization.
Q4: Do you provide free samples for quality check before placing the order?
A: We charge sample fees accordingly but the expense is always RETURNABLE as long as you place the order. In general, We will prepare and send the samples within 7-10 days with tracking numbers.
Q5: How do you control the quality of your products?
A: We have quality inspectors to walk around and inspect to ensure the quality of the products from the very beginning to the very end of the production process.
