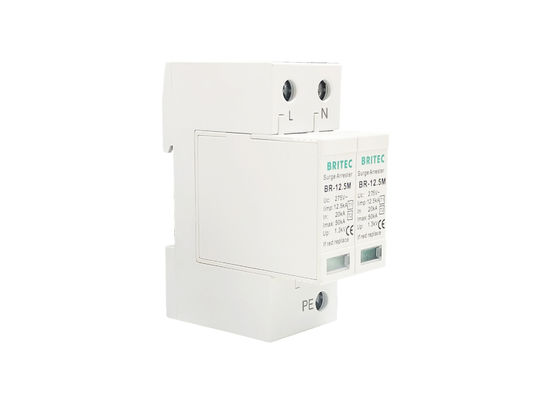

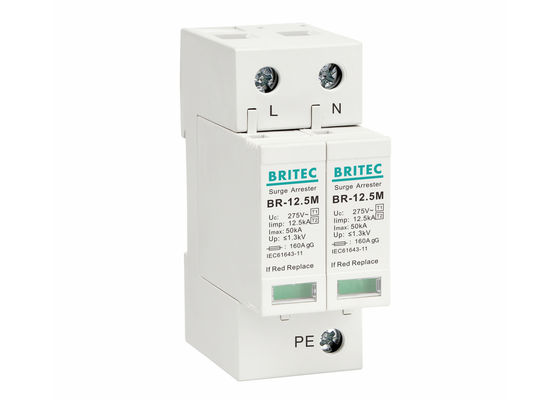

Din Rail Pluggable Power Surge Protection Device Class I+II Low Voltage Surge Protective

Name: Din Rail Pluggable Power Surge Protection Device Class I+II Low Voltage Surge Protective
Brand: Britec Electric Co., Ltd.
SKU: BR-12.5M 275 2P
Price: 3.50 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-12.5M 275 2P

Detail Information

Place of Origin:

China

Brand Name:

BRITEC

Model Number:

BR-12.5M 275 2P

Item Name:

Surge Protective

Place Of Origin:

Zhejiang, China (Mainland)

Brand Name:

BRITEC

Model Numbers:

BR-12.5M 2P

Safety Standard:

IEC61643-1

Uc:

275V

Iimp:

12.5kA

Weight (g):

250

For Mounting On:

35mm Din Rail

Modular:

Pluggable Design

Keyword:

Lightning Protection

Keyword:

Lightning Protection

Highlight:

High Light

Highlight:

lightning surge protector

power surge arrester

Trading Information

Minimum Order Quantity:

100 Piece/Pieces

Packaging Details:

EXPORT PACKING

Delivery Time:

Shipped in 15 days after payment

Payment Terms:

L/C, D/A, T/T, Western Union

Supply Ability:

50000 Piece/Pieces Month

Product Description

Din Rail Pluggable 275V 12.5kA AC Power Class I+II Low Voltage Surge Protective

Din Rail Pluggable Power Surge Protection Device Features:

• Designed according to IEC and GB standards.

• Plug design, easy maintenance.

• High security performance.

• Green light in notice window indicates normal; red indicates broken, replacement notice, which is clear and easy distinguished.

Din Rail Pluggable Power Surge Protection Device Technology characteristic:

	BR-12.5M 275 2P
No. of poles	2P
Power supply system	TN system
SPD classification according to IEC61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Max. discharge current (8/20us) Imax	50kA
Nominal discharge current (8/20us) In	20kA
Lightning impulse current (10/350us) Iimp	12.5kA
Operating state / fault indication	green / red
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Relative humidity	On condition that room temperature 30% to 90%
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20
For mounting on	35mm Din rail
Test grade	IEC61643-1 standards

Dimension:

Din Rail Pluggable Power Surge Protection Device Class I+II Low Voltage Surge Protective 0

Din Rail Pluggable Power Surge Protection Device Application:

• Applicable to low-voltage distribution system protection.

• Applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B+C lightning strike to power supply system or disoperation.

Certificate:

Shipping:

• If the quantity of order is not very big, we could send them to you by express delivery, such as TNT, DHL, UPS or EMS etc.
• If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent. Our long-term cooperated agent also available.

FAQ:

Q1: Are you trading company or manufacturer?
A1: We are factory.

Q2: How long is your delivery time?
A2: Generally it is about 20 days, it is according to quantity.

Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could provide samples, but it is not free.
