| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-20DP 2P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Type: | Ac Surge Protector |
|---|---|---|---|
| Material: | Plastic | Place Of Origin: | Zhejiang, China (Mainland) |
| Pole Number: | 2P | In: | 10kA |
| Imax: | 20kA | Certificate: | TUV/CE/ROHS/ISO9001 |
| Tu: | -40℃-80℃ | Application: | Surge Protective Device Is Suitable For Single-phase System |
| High Light: | type 3 surge protector,ac surge protector |
||

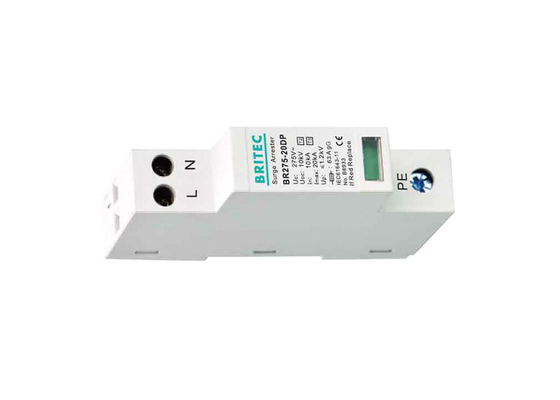

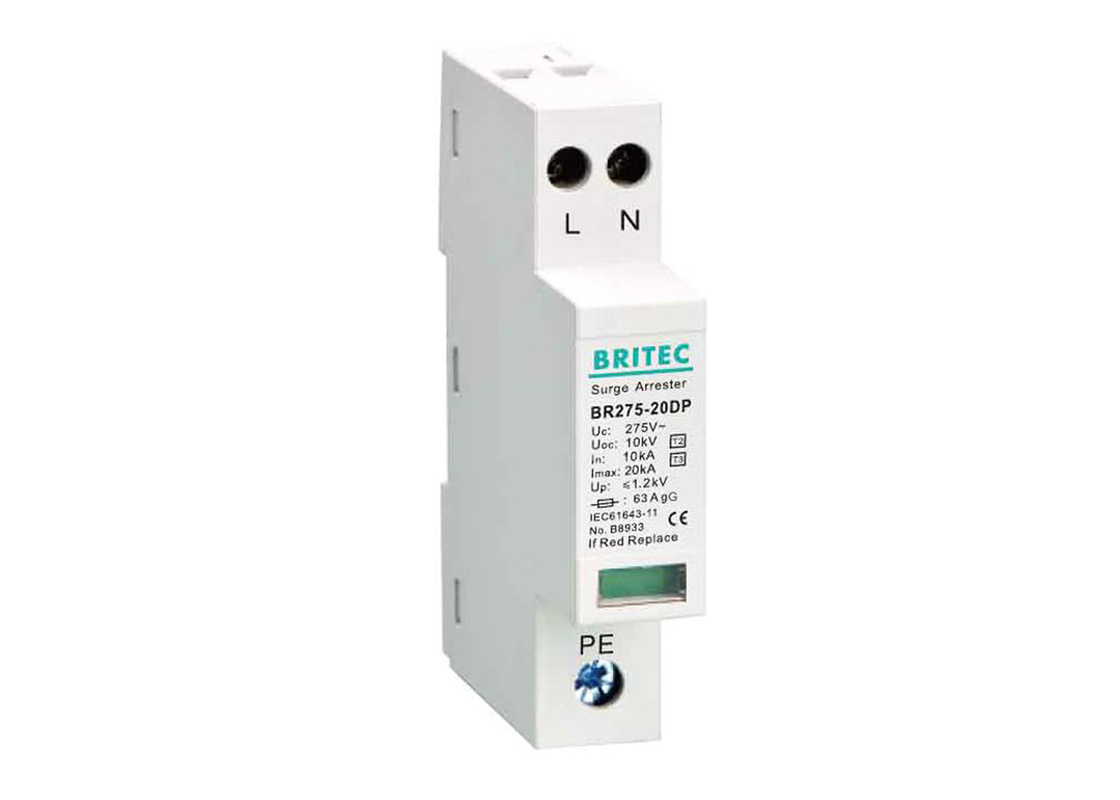

Sensitive 10 KA 20kA Surge Protective Device Type 3 63 A gG Max Backup Fuse
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Protection class: Type 3, Class III.
Pole number: 2P.
Surge areeare used to guard sensitive equipments from voltage spike.
Sensitive 10 KA 20kA Surge Protective Device Technology characteristic:
| Specification | BR-20DP 2P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 3 |
| SPD dassification according to IEC61643-11 | Class III |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 20kA |
| Norminal discharge current (8/20µs) In | 10kA |
| Voltage protection level Up | ≤1.1kV |
| Combined impulse Uoc | 10kV |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 2.5mm² |
| Cross-section area (Max.) | 16mm² |
| Enclosure material | Thermal plastic UL94-V0 |
Company Information:
Wenzhou Britec Electric Co,Ltd. is specialized in the research, development, design, production and marketing of SPD. These lines cover AC surge protector, DC surge protective, data surge protection devices, LED lightning arrester etc. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have CE, CB, TUV approvals, and are widely exported to 50 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
Certificate:
FAQ:
Q1: Are you a manufacturer of surge arrester?
A1: Yes. We have 17 years export exprience.
Q2: Delivery time?
A2: 20 days after the order confirmed.
Q3: After Sales Service?
A3: If you have any questions about the product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
