| Place of Origin: | China |
| Brand Name: | BRITEC |
| Model Number: | BR4-230 |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | Carton, EXPORT PACKING |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Un: | 230V | Uc: | 275V |
|---|---|---|---|
| Pole Number:: | 2P | In: | 5kA |
| Imax: | 10kA | Up: | ≤ 1.1kV |
| Standard: | IEC61643-11 | Class: | Type 3 |
| Color: | Red | Item: | Surge Protective Device |
| High Light: | type 3 surge arrester,ac surge protector |
||

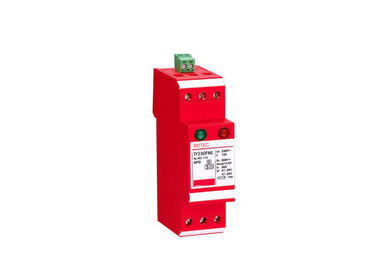

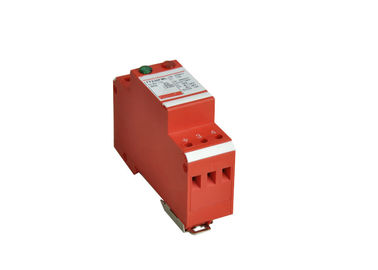

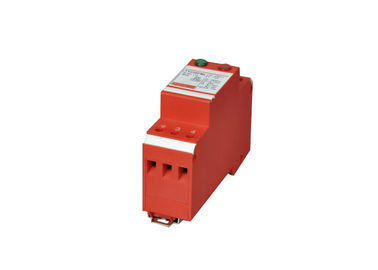

10kA Type 3 Surge Arrester Surge Protective Device BR4-230
Red Color Surge Protective Device Type 3 Surge Protector Application:
BR4-230 series surge protector is for protecting low-voltage consumer’s installations against indirect lightning discharges and is to be installed in LEPM zone: LPZ2 - LPZ3 as per IEC 62305. It consists of a high performance varistor with thermal disconnection tripping device. Britec hold patent for the design of casing.
Red Color Surge Protective Device Type 3 Surge Protector Technical Data:
| BR4-230 2P | |
| Protection class | Type 3, Class III |
| Pole number | 2P |
| Max. continuous operating voltage Uc | 275V |
| Nominal discharge current (8/20μs) In | 5kA |
| Max. discharge current (8/20μs) Imax | 10kA |
| Protection level Up | ≤ 1.1kV |
| Combined impulse Uoc | 10kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state/fault indication | green/red |
| Cross-section area (Min.) | 2.5mm² |
| Cross-section area (Max.) | 15mm² |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
| Remote contacts | Available |
Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.
Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
FAQ:
Q1: Are you a manufacturer of surge arrester?
A1: Yes. We have 17 years export exprience.
Q2: Delivery time?
A2: 20 days after the order confirmed.
Q3: After Sales Service?
A3: If you have any questions about the product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
