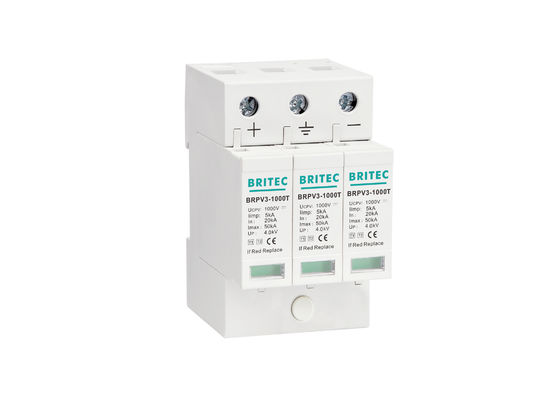

Name: Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device
Brand: BRITEC
SKU: BRPV3-1000T1-5
Price: 1 USD
Availability: InStock
Rating: 4.6 (116 reviews)

Home Products PV Surge Arrester

Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRPV3-1000T1-5

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Type:	PV (solar)	Class:	Type 1+2
Ucpv:	1000V	Iimp:	5kA
Imax:	50kA	TA:	≤25ns
Material:	Thermalplastic UL94-V0	Warranty:	2 Years
OEM/ODM:	Welcome, 17 Years Factory	Protection Dagree:	IP20
High Light:	1000v lightning protection device , 5kA spd lightning protection , 5kA lightning protection device

Type 1+2 1000v 5kA DC SPD Solar Lightning Protective Device Special Products Current Protector

Type 1+2 1000v 5kA DC SPD Solar Lightning Protective Device Description:

• Lightning/ Surge Protector Type 1+2 at 1000VDC to protect the solar PV circuit from over-voltage or directly lightning damage.

• Indicator window is obvious (green is OK, red indicates failure)

• The 1000V T 1+2 DC SPD BRPV3-1000T is developed according to the newest PV standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.

• The shell is made of PC flame retardant material, fire insulation

• Remote status signaling (BRPV3-1000T) is optional

• Replaceable module

Type 1+2 1000v 5kA DC SPD Solar Lightning Protective Device Product Details:

	BRPV3-1000 T1-5
SPD classification according to EN61643-31	Type 1+2
SPD classification according to IEC61643-31	Class I &II
Max. continuous operating d.c. voltage Ucpv	1000V
Impulse Current by pole Iimp	5kA
Nominal discharge current(8/20μs) In	20kA
Max. discharge current(8/20μs) Imax	50kA
Voltage protection level Up	4.0kV
Residual Current Ipe	None
Follow current Ifi	None
Max backup fuse	125A gG
Response time tA	25ns
Operating temperature range Tu	－40℃~80℃
Operating state/fault indication	Green/Red
For mounting on	35mm Din Rail
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermal plastic UL94－V0
Degree of Protection	IP20

Technology characteristic:

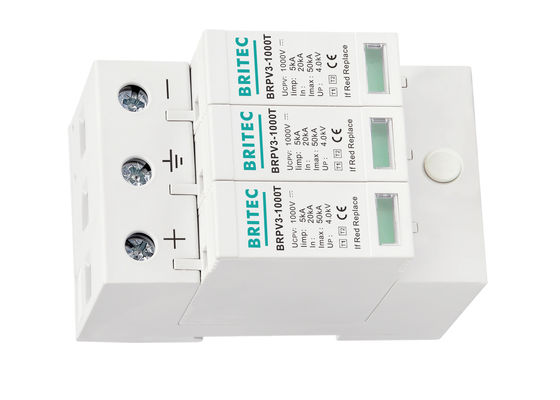

Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device 0

Type 1+2 1000v 5kA DC SPD Solar Lightning Protective Device Features:

* Type 1+2 DC SPD for 1000V solar photovoltaic application

* Class I+II / Type 1+2 surge protective devices.

* According to IEC 61643-31:2018.

* Low residual voltage and quick response

* Thermal disconnect for fault indication

* Warning indicator device, green (normal), red (fault).

* Remote signal contact for options.

* The module design, easy installation, online replacement.

* 2 years warranty

Type 1+2 1000v 5kA DC SPD Solar Lightning Protective Device Application:

• BRPV3-1000T Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).

• For direct and indirect lightning strike, is especially for use with the inverters.

• These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.

• Protect the solar equipment like solar panels and solar inverter from surges damage or overvoltage. Improve the PV system safety for a longer PV system life.

• Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.

WHY CHOOSE US:

Wenzhou Britec Electric CO., LTD. is a professional manufacturer on R&D and producing on surge protection products. Our company gathered all kinds of high-skilled personals with more than 17 years’ experience. In-house testing lab. Guarantee out-going products quality. Products are certified with TUV, CE and CB approved.

WORKSHOP:

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device 1

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device 2

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Type 1+2 1000v 5kA DC SPD PV Solar Lightning Protection Device 3

FAQ:

Q1: Are you factory or trading company?
A: We are professional SPD factory, ISO9001 certified, we have our own mould, R&D, engineer, production, and QC department. Our products have very competitive advantage in price, quality, and lead time.

Q2: How about the pay term?
A: T/T, Paypal etc.

Q3: How about the shipping period?
A: Mass production time is 20 days (depend on your order quantities). Shipping by express is about 7 working days.

Q4: What certifications do you have?
A: We have approved ISO9001, CE, CB, TUV etc.

Q5. Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
