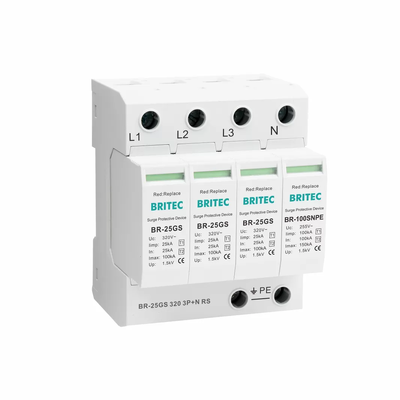

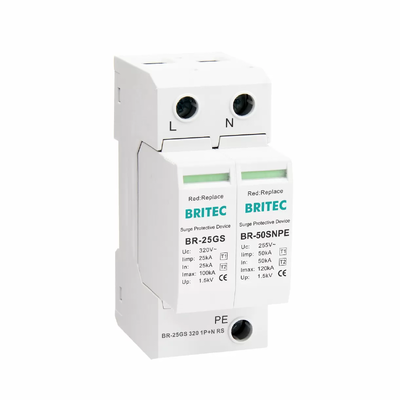

TUV BR-25GS 3P+N Type 1+2 25kA Surge Arrester For TT And TNS T1 Power Surge Protective Device
25kA Single Phase 3+1 Type 1 Class I Lightning Surge Protective Device
Product Features
- Number of poles: 3P+N
- Up: 1.5kV
- Imax: 100 kA
- Uc: 320 V
- Power distribution system: SPD in TT system
- Remote signalling optional
- BR-25GS 3P+N compliant with EN/IEC 61643-11 standards
- Tested and specified according to both T1 and T2 test classes
We have 25 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
Technical Specifications
| Specification |
BR-25GS 150 3P+N |
BR-25GS 275 3P+N |
BR-25GS 320 3P+N |
| SPD classification (EN61643-11) |
Type 1 + Type 2 |
Type 1 + Type 2 |
Type 1 + Type 2 |
| SPD classification (IEC61643-11) |
Class I + Class II |
Class I + Class II |
Class I + Class II |
| Nominal operating a.c. voltage (Un) |
120V/240V(50/60Hz) |
230V/400V(50/60Hz) |
240V/415V(50/60Hz) |
| Max. continuous operating a.c. voltage (Uc L-N/N-PE) |
150V/255V(50/60Hz) |
275V/255V(50/60Hz) |
320V/255V(50/60Hz) |
| Lightning impulse current (10/350μs) (Iimp L-N/N-PE) |
25kA/100kA |
25kA/100kA |
25kA/100kA |
| Nominal discharge current (8/20μs) (In L-N/N-PE) |
25kA/100kA |
25kA/100kA |
25kA/100kA |
| Max. discharge current (8/20μs) (Imax L-N/N-PE) |
100kA/150kA |
100kA/150kA |
100kA/150kA |
| Voltage protection level (Up L-N/N-PE) |
≤1.5kV/≤1.5kV |
≤1.5kV/≤1.5kV |
≤1.5kV/≤1.5kV |
| Max. backup fuse |
200A gG |
200A gG |
200A gG |
| Response time (tA) |
≤100ns |
≤100ns |
≤100ns |
| Operating temperature range (Tu) |
-40℃-85℃ |
-40℃-85℃ |
-40℃-85℃ |
| Order Code |
B17058 |
B17071 |
B17096 |
Suffixes: Add Suffix "RS" for dry contact remote signaling version. Example: BR-25GS 275 3P+N RS
Key Features
- Type: T1+T2 Surge protector
- Response time: ≤100ns
- Labeled connections
- Composite type: 3P+N
- Installation: standard rail 35mm
- Designed to protect low-voltage electrical installations from electrical surges
- According to IEC61643-11
- Thermal disconnect device
- Screw terminal connection
Applications
Protects electrical installations against direct lightning strokes, and discharge the back-current from lightning spreading from the earth conductor to the network conductors. The device is designed to be used between Zone O and Zone 1 (according to IEC 62305-4 definition of Lightning Protection area). Can be used to protect three-phase power system.
Installation Guidelines
- Determine the discharge current path
- Mark the wires that produce an additional voltage drop on the device terminal
- Mark the PE conductor of each device to avoid unnecessary induction loops
- An equipotential connection is established between the device and SPD

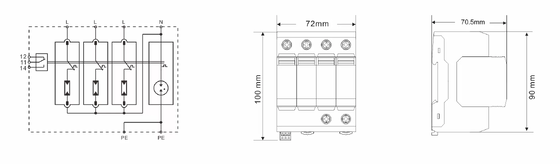

- During installation, connect the device according to the installation diagram, where L is the phase line, N is the neutral line, and PE is the ground line. Do not misconnect the device.
Manufacturing Capabilities
Britec owns advanced test equipment and product lines, perfect management, professional technical personnel and well-trained workers. Britec team keeps developing newest products for our customers, which is why technical level of our products can reach leading levels. We also can help customers with OEM/ODM.
Company Information
Wenzhou Britec Electric Co., Ltd. was established in 2003. BRITEC and TYCOTIU are sister companies. Britec is a professional surge protective devices (SPD) manufacturer who designs and manufactures surge protection devices for power protection, data protection, PV protection etc.
Britec owns in-house laboratory with 100kA 10/350 lightning impulse generator, 25kA 10/350 impulse generator, 120kA 8/20 generator, 1.2/50 20kV combination generator, TOV test station and other test equipment.
The company carries ISO9001, ISO45001, ISO14001 management system. Various products are TUV, CB CE, RoHS certified. Britec has long business relationship with European customers and well experience working with multi-national companies.
Global Presence
Britec has a strong sales team, our surge protection devices are sold to many countries around the world. Europe and Asia are our main markets. We would like to cooperate with global customers and help you succeed in your market.
Certifications
Britec offers full range of SPD products which have CE, RoHS, TUV, SEMKO, CB certification. The company implements ISO9001 quality management system.
Product Applications
Britec has developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system, PV system and data, etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
Frequently Asked Questions
How about your experience?
We have our own factory and in-house test laboratory, our R&D department have more than 25 years experiences.
What's your advantage?
Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year. Quality recognized: cooperate with transnational company.
Is custom design package acceptable?
Inner box and out carton are made as per international standard. We can make packaging according to customer's need.
Could you do OEM for us?
Sure, we accept OEM and ODM orders, please supply with the letter of Authorization for the brand.
How about warranty?
5 years.
Could I buy 1pc sample first and small order?
Of course, support sample orders, especially for new customers under certain condition.
How long make a sample?
3-5 days.
How does your company do regarding the quality control?
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
