1. Nominal Discharge Current In (8/20μs):4kA~150kA;
2. Impulse Discharge Current Iimp(10/350μs):4kA~50kA;
3. Maximum Diameter of Down Conductor D≤20mm,Maximum Width of Flat Steel<35mm,Thickness<12mm;
5. Protection Level:IP65;
7.Working Temperature:-40℃~+85℃.
Lightning strike counter is a universal counter. When the lightning protection circuit system is normal, no current flows on the discharge line, and the lightning strike counter docs not count; when lightning current discharge occurs in the line, the lightning protection circuit discharges lightning current to the ground, and there is current on the discharge line. When it flows through, the counter is coupled to the induced voltage, causing the counter to count.
Lightning strike counter is suitable for all SPDs, lightning rods, etc. It can sense and discharge lightning current,and the cumulative number of lightning strikes is displayed on the counter. The product counts accurately and does not malfunction; it works without power supply, the counting value will not be lost for a long time, and cannot be reset to zero; it has dust-proof, waterproof and other functions.
Features:

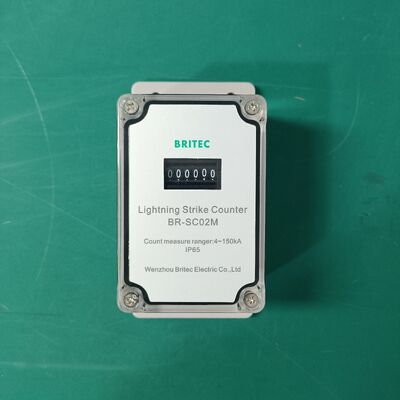

- Product Name: Lightning Strike Counter
- Function: Lightning Strike Counter device for accurate lightning detection
- Shipping Terms: Available via TNT, DHL, FEDEX, EMS, and UPS
- Protection Degree: IP65 rated for dust and water resistance
- Response Time: Less than 25 nanoseconds for rapid lightning detection
- Printing: Customizable printing as per your requests
- Reliable lightning counter suitable for various environments
- High precision lighting strike counter device to ensure safety monitoring
Technical Parameters:
| Model Numbers |
BR-SC02M |
| Function |
Lightning Strike Counter |
| Application |
Count Surge Strikes |
| Response Time |
<25ns |
| Protection Degree |
IP65 |
| Net Weight |
350g |
| Temperature Range |
-40°C - 80°C |
| Printing |
As Your Requests |
| Shipping Term |
TNT, DHL, FEDEX, EMS, UPS |
Customization:
BRITEC offers comprehensive product customization services for the Lightning Strike Counter, model number BR-SC02M. Manufactured in China and certified with ISO9001, ISO14001, and ISO45001, this Lightning Strike Counter is designed to meet high-quality standards and reliability.

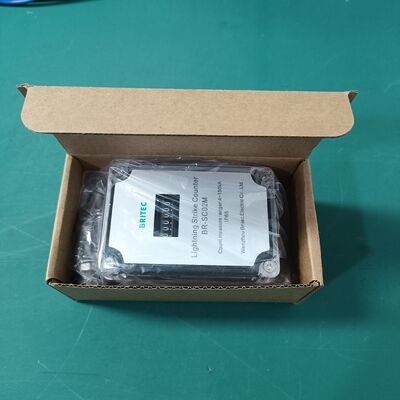

We support a minimum order quantity of 10PCS, with packaging details including secure carton packaging to ensure safe delivery. Our supply ability reaches up to 1,000,000 units per month, ensuring prompt fulfillment of large orders.
The delivery time for customized orders is 15 days after receipt of deposit, with payment terms via TT. The Lightning Strike Counter features a fast response time of less than 25ns and is suitable for counting surge strikes, making it ideal for surge arrester counters in various applications.
With a net weight of 350g, this device operates efficiently within a temperature range of -40°C to 80°C and offers protection degree IP65, ensuring durability and reliable performance in harsh environments.
Choose BRITEC’s Lightning Strike Counter customization services for tailored solutions that meet your precise requirements and guarantee quality and efficiency in surge arrester counters.
Support and Services:
Product Technical Support and Services for the Lightning Strike Counter are designed to ensure optimal performance and reliability of your device. Our support team provides comprehensive assistance including installation guidance, troubleshooting, firmware updates, and maintenance tips.
If you experience any issues with your Lightning Strike Counter, our technical experts are available to help diagnose and resolve problems efficiently. We offer detailed user manuals and online resources to assist with common questions and product features.
Regular firmware updates are provided to enhance functionality and keep your device up-to-date with the latest technology improvements. We recommend checking our support portal regularly to download the latest software versions.
For maintenance, it is advised to keep the Lightning Strike Counter clean and protected from extreme environmental conditions to prolong its lifespan. Our service team can also assist with repairs or replacement parts if necessary.
Your satisfaction is our priority, and we strive to deliver prompt and effective technical support to maximize the value of your Lightning Strike Counter.
