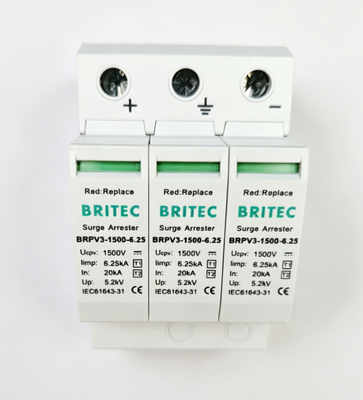

BRPV3-1500-6.25 dc spd surge protection device solar dc spd dc spd 1500v 3 pole spd dc 500v t1 t2

spd dc 500v t1 t2 Product Description:

The DC Surge Protection Device is an essential component designed to safeguard photovoltaic (PV) systems from the damaging effects of electrical surges, ensuring the longevity and reliability of solar power installations. Specifically engineered as a pv surge protector, this device offers robust protection against transient overvoltages caused by lightning strikes or switching operations, which can otherwise compromise the performance and safety of PV modules and associated electrical equipment.

One of the standout features of this DC Surge Protection Device is its exceptionally fast response time of ≤25 nanoseconds. This rapid reaction capability is critical in preventing surge currents from penetrating sensitive components within the photovoltaic system. By quickly diverting surge energy away from the protected circuits, the device minimizes potential damage, thereby reducing maintenance costs and downtime for solar power systems.

In terms of surge handling capacity, the device boasts a maximum discharge current rating of 40kA (8/20μs waveform). This high discharge current capability enables it to effectively absorb and dissipate large surge currents resulting from lightning strikes or other transient events. As a lightening protector, it provides a reliable barrier, preserving the integrity of the entire solar installation even under extreme electrical stress conditions.

Environmental adaptability is another key attribute of this DC Surge Protection Device. It is designed to operate efficiently in humidity conditions up to 95% RH, making it suitable for a wide range of climatic environments where PV systems are commonly installed. This level of humidity tolerance ensures consistent performance and durability, regardless of varying weather conditions.

The device also accommodates a maximum cross-section area of 35mm² for wiring connections, facilitating easy integration into existing PV system infrastructures. This compatibility with larger conductor sizes helps maintain low resistance connections, which is crucial for the overall efficiency and safety of the surge protection setup.

Furthermore, the voltage protection level of the device is rated at 5.2kV, indicating the maximum voltage that the device allows to pass through to the protected equipment during a surge event. This low voltage protection level is vital in minimizing the stress on PV modules and electrical components, thereby preventing insulation breakdowns and extending the service life of the system.

As a dedicated pv surge protector, this device not only enhances the safety of solar power installations but also contributes to the optimization of energy output by maintaining the operational integrity of the PV modules. Its role as a lightening protector ensures that solar array components are shielded from potentially catastrophic damage caused by direct or indirect lightning strikes.

In summary, the DC Surge Protection Device is a highly effective and reliable solution for protecting photovoltaic systems against electrical surges. With its rapid response time of ≤25ns, high maximum discharge current capacity of 40kA, wide humidity operating range up to 95% RH, compatibility with conductor cross-sections up to 35mm², and a low voltage protection level of 5.2kV, it stands out as an indispensable component for any solar power installation seeking to enhance durability, safety, and performance. Whether used as a pv surge protector or a specialized lightening protector, this device ensures that your investment in renewable energy is well shielded against the unpredictable forces of nature.

Features:

• Product Name: DC Surge Protection Device (SPD)
• Designed as a reliable DC surge protective device for enhanced electrical safety
• Humidity Range: ≤95% RH, suitable for various environmental conditions
• Operating State Indication: Green / Red for easy monitoring of device status
• Degree of Protection: IP20, providing basic protection against solid objects
• Supports Cross-section Area (Max.): 35mm² for flexible wiring options
• Ensures efficient surge protection in DC circuits to prevent equipment damage
• Compact design optimized for installation in control panels and electrical systems

Technical Parameters:

Applications:

The BRITEC DC Surge Protection Device, model BRPV3-1500-6.25, is designed to provide reliable protection against overvoltage and transient surges in a wide range of applications. Manufactured in China and certified by TUV, CB, CE, ROHS, and ISO9001, this high-quality dc spd ensures safety and durability in critical electrical environments.

One of the primary application occasions for the BRITEC DC Surge Protection Device is in solar photovoltaic (PV) power systems. As solar installations often operate at voltages up to 1000V, the 1000v surge arrester effectively safeguards inverters, panels, and other sensitive equipment from damaging voltage spikes caused by lightning strikes or switching operations. Its fast response time of ≤25ns and maximum discharge current of 40kA (8/20μs) guarantee quick and efficient surge mitigation, preventing downtime and costly repairs.

Additionally, this dc spd is ideal for use in telecommunications infrastructure, battery storage systems, and electric vehicle charging stations where stable DC voltage protection is critical. The device’s robust thermoplastic UL94-V0 enclosure material provides excellent flame retardancy and environmental resistance, making it suitable for both indoor and outdoor installations under various environmental conditions.

Industrial automation and control systems also benefit from the BRITEC surge protection device, especially in factories and manufacturing plants where voltage transients can disrupt sensitive electronic controls. By integrating the BRPV3-1500-6.25 dc spd into the electrical network, facilities can enhance the longevity and reliability of their equipment.

With a supply ability of 1,000,000 units per month, a minimum order quantity of 20PCS, and a delivery time of just 15 days after receipt of deposit, BRITEC ensures timely and efficient fulfillment of large-scale projects. The product is packaged securely in cartons and payment can be conveniently made via TT, supporting smooth procurement processes for businesses.

In summary, the BRITEC DC Surge Protection Device BRPV3-1500-6.25 is a versatile and high-performance 1000v surge arrester suitable for protecting DC power systems across solar, telecommunications, industrial, and energy storage applications. Its advanced features and certifications make it a trusted choice for reliable surge protection.

Support and Services:

Our DC Surge Protection Devices are designed to safeguard your electrical systems from transient overvoltages caused by lightning strikes and switching events. For optimal performance, please ensure the device is installed according to the provided installation guidelines and within the specified voltage and current ratings.

Regular inspection and maintenance are recommended to verify the integrity of the device. Replace the surge protection device immediately if any visible damage or degradation is observed, or if the device has operated under surge conditions that exceed its capacity.

For troubleshooting, if you experience frequent device failures or inadequate surge protection, check the system grounding and bonding, as proper grounding is critical for the effective operation of surge protection devices.

Our technical support team is available to assist with product selection, installation guidance, and resolving any technical issues related to the DC Surge Protection Device. Please have the product model number and installation details ready when seeking support.

We also offer extended services including on-site inspections, customized protection solutions, and training sessions to ensure your electrical systems remain protected and compliant with industry standards.

FAQ:

Q1: What is the brand and model number of this DC Surge Protection Device?

A1: The DC Surge Protection Device is from the brand BRITEC, and the model number is BRPV3-1500-6.25.

Q2: Where is the BRITEC DC Surge Protection Device manufactured?

A2: This product is made in China.

Q3: What certifications does the BRPV3-1500-6.25 DC Surge Protection Device have?

A3: It is certified with TUV, CB, CE, ROHS, and ISO9001.

Q4: What is the minimum order quantity and packaging details for this product?

A4: The minimum order quantity is 20 pieces, and the products are packaged in cartons.

Q5: What are the delivery time and payment terms for ordering the BRITEC DC Surge Protection Device?

A5: The delivery time is 15 days after receipt of deposit, and the payment terms are via TT (Telegraphic Transfer).

Q6: What is the monthly supply capacity of the BRPV3-1500-6.25 model?

A6: The supply ability is up to 1,000,000 units per month.
