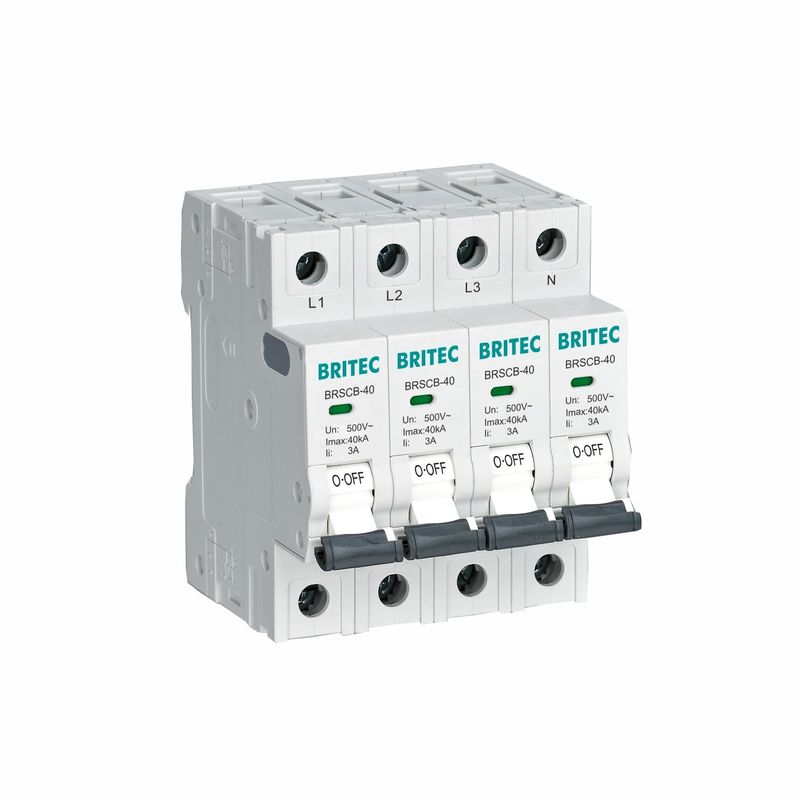

BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester.

BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester.

  • BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester.
  • BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester.
BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester.
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BRSCB-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: Shipped in 15 days after payment
Payment Terms: TT, L/C, D/A, D/P
Supply Ability: 1000000per month
Contact Now
Detailed Product Description
Voltage Rating: 500V Mounting: DIN Rail 35 Mm.
Rated Frequency (f): 50/60Hz Material: Thermoplastic UL94-V0
Type: Dedicated Backup Protector Warranty: 5 Years
Product Name: SCB

BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 0

BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 1



Product Description:



Specification   BRSCB-40 4P BRSCB-40 3P BRSCB-40 2P BRSCB-40 1P
Nominal a.c. voltage Un 500V 500V 500V 500V
Nominal discharge current (8/20μs) In 20kA 20kA 20kA 20kA
Max. discharge current (8/20μs) Imax 40kA 40kA 40kA 40kA
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state/fault indication   green/red green/red green/red green/red
Cross-section area (Min.)   2.5mm² 2.5mm² 2.5mm² 2.5mm²
Cross-section area (Max.)   35mm² 35mm² 35mm² 35mm²
For mounting on   35mm Din rail
Enclosure material   Thermoplastic UL94-V0
Degree of protection   IP20 IP20 IP20 IP20
Order Code   B8476 B8477 B8478 B8479

Features:

MCB specially designed for Surge Arrester.

It can cut the leakage current to 3A

The color of the visual alarm window indicates the working status of the protection, green (normal) and red (fault).

Flame-retardant housing design for easy installation on 35mm din rail.

Surge backup protector for TN systems.





BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 2

BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 3



BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 4



BRSCB-40 Class II 40KA Dedicated Backup Protector Surge Protection Device MCB specially designed for Surge Arrester. 5
