Type 2 PV Surge Arrester with 36V Protection and 5-Year Warranty for Solar Systems

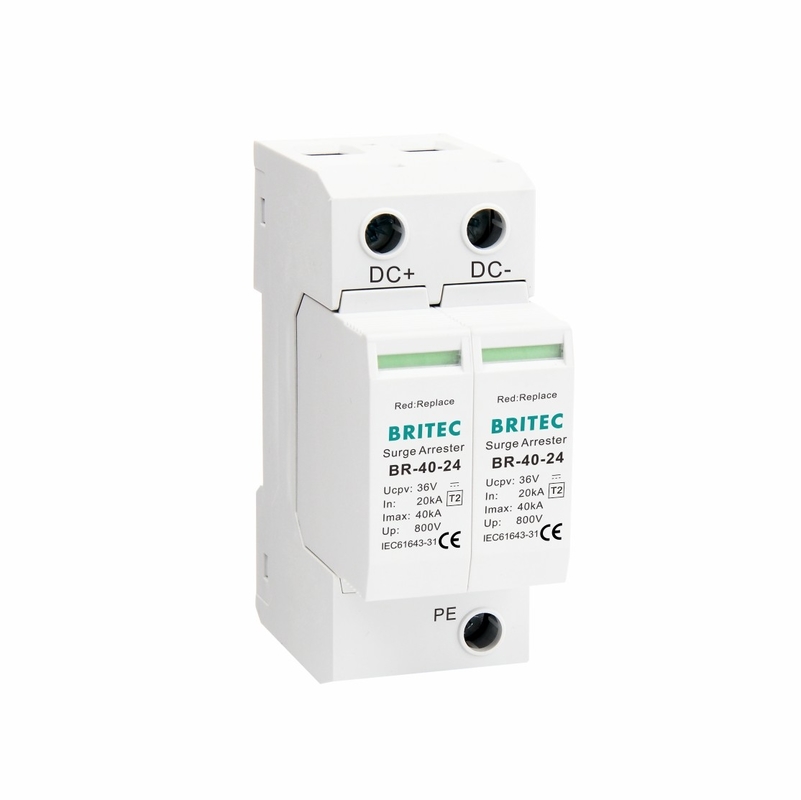

Large Image : Type 2 PV Surge Arrester with 36V Protection and 5-Year Warranty for Solar Systems

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-40 24

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Packaging Details:	carton
Delivery Time:	15 days after receipt of deposit
Payment Terms:	TT
Supply Ability:	1000000 per month

Contact Now

Type 2 PV Surge Arrester with 36V Protection and 5-Year Warranty for Solar Systems

Description

Protection Dagree:	IP20	Temperature Range:	-40°C - 80°C
Module:	2	Shipping Term:	TNT DHL FEDEX EMS UPS
Warranty:	5 Years	Classification:	Type 2 /Class II
Material:	Thermoplastic	Class:	Type 2
Highlight:	24 PV Surge Arrester , IP20 Dc Surge Protector , IP20 Solar Surge Protection Device

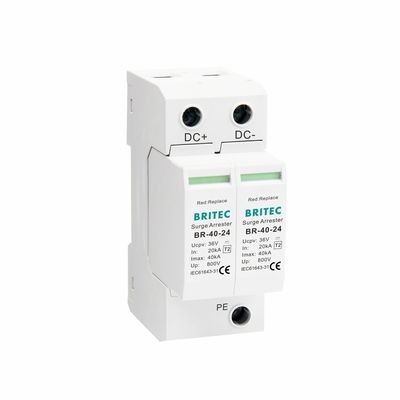

BR-40 24 PV Surge Arrester DC Surge Protector

Product Overview

Our PV Surge Arrester is designed for easy mounting on a 35mm DIN rail, making it simple to install and integrate into your existing PV setup. With a protection degree of IP20, you can be confident that your equipment is safe from moisture and dust, ensuring optimal performance and longevity.

With a Type 2/Class II classification, our PV surge protection device is designed to protect against indirect lightning strikes and other power disturbances that can damage your PV system. Whether you're using your PV system for residential or commercial purposes, our PV lightning arrester is an essential component to ensure reliable and effective performance.

Key Features

Product Name: PV Surge Arrester
Class: Type 2
Temperature Range: -40°C - 80°C
Transport: By Air, By Sea Or Express
Ucpv: 36V
Warranty: 5 Years

Technical Specifications

Parameter	Specification
PV Lightning Arrester Type	Type 2
Insulation Material	Thermoplastic UL94-V0
Max Working Voltage	36V
Ucpv	36V
Temperature Range	-40°C - 80°C
Material	Thermoplastic
For Mounting On	35mm DIN Rail
Protection Degree	IP20
Warranty	5 Years

Available Options

Other configurations available:
• Maximum discharge current: 40kA, 50kA
• Number of poles: 2P, 3P
• Maximum continuous operating DC voltage: 24V, 48V, 110V, 150V, 220V, 600V, 1000V, 1500V
• Lightning impulse current (10/350μs): 12.5kA, 5kA

Applications

The PV Surge Arrester is suitable for use in various PV applications including solar power plants, residential PV systems, and commercial PV installations. It provides reliable protection against power surges and electrical disturbances that can cause damage and downtime.

Installation & Support

Our technical support team is available to assist with any questions regarding installation, operation, or troubleshooting. We also offer servicing and repair services to ensure your PV Surge Arrester continues to function properly and protect your solar system for years to come.
