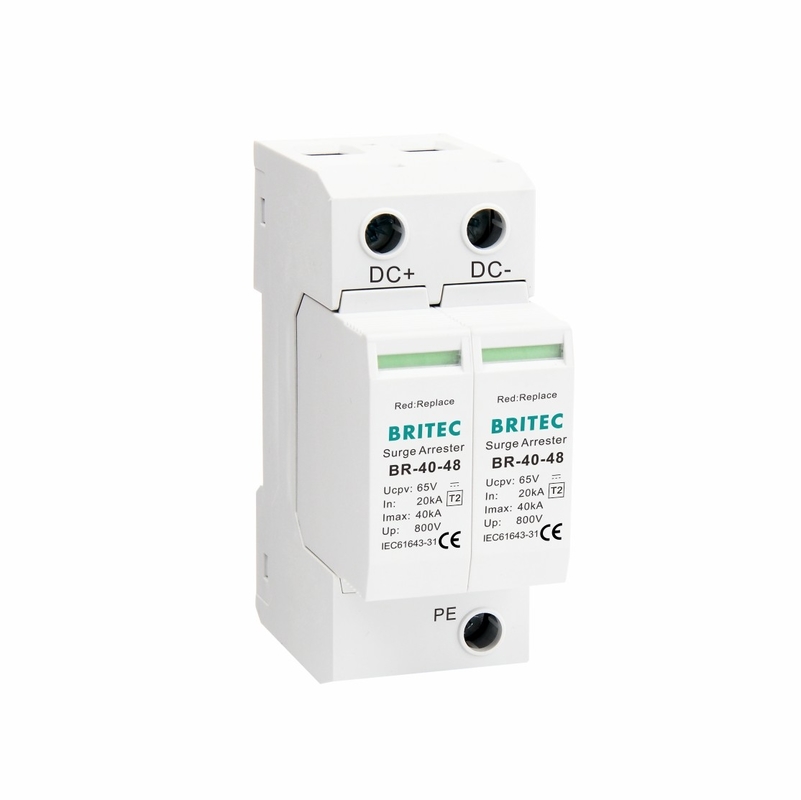

BR-40 48 DC SPD pv surge protection device 48V surge arrester thunder protector

BR-40 48 DC SPD pv surge protection device 48V surge arrester thunder protector

  • BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector
  • BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector
  • BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector
BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-40 48
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Contact Now
Detailed Product Description
Operating State: Green / Red Storage Temperature Range: -40℃~+85℃
Response Time: ≤25ns Product Name: DC Surge Protection Device
Maximum Discharge Current: 40kA(8/20μs) Cross-section Area (Min.): 4mm²
Degree Of Protection: IP20 Operating Temperature Range: -40℃~+85℃

BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 0BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 1

Product Description:

The DC Surge Protection Device can handle a humidity range of up to 95%RH, making it ideal for use in humid environments. It is designed to protect your electronic devices from power surges and voltage spikes while providing reliable and consistent power to your DC power supply system. With a minimum cross-section area of 4mm², this SPD is capable of handling high levels of current and is suitable for use in a wide range of applications.

The operating temperature range of the DC Surge Protection Device is -40℃~+85℃, meaning it can operate efficiently in both hot and cold environments. The device has an operating state indicator which displays green when it is functioning normally, and red when it is in a faulty state.

The DC Surge Protection Device is an essential component for any DC power supply system, and is an effective solution for preventing damage to your electronic devices caused by power surges and voltage spikes. It is easy to install and provides reliable protection for your sensitive electronic equipment. With its high-quality construction and reliable performance, the DC Surge Protection Device is the perfect choice for protecting your DC power supply system.



Features:

  • Product Name: DC Surge Protection Device
  • Format: Plug-in Modular
  • Response Time: ≤25ns
  • Max. Continuous Operating Voltage: DC 48V
  • Voltage Protection Level: 800V
  • Operating Temperature Range: -40℃~+85℃

This DC Surge Protection Device is a 48V surge arrester, commonly referred to as a DC SPD.



Technical Parameters:

Technical Parameter Value
Product Name DC Surge Protection Device
Product Type Lightning Protector
Humidity Range ≤95%RH
Max. Continuous Operating Voltage DC 48V
Operating Temperature Range -40℃~+85℃
Operating State Green / Red
Maximum Discharge Current 40kA(8/20μs)
Storage Temperature Range -40℃~+85℃
Cross-section area (Min.) 4mm²
Degree of protection IP20
Response Time ≤25ns
Cross-section area (Max.) 35mm²


DC surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Applications:

The DC Surge Protection Device or dc spd is a device that protects electronic devices and systems from voltage spikes and surges. It is suitable for various applications and scenarios, particularly in solar power systems. Since solar panels generate DC voltage, it is important to have a solar surge protective device to prevent damage and ensure safety. The BR-40 48 model has a maximum discharge current of 40kA(8/20μs), making it capable of handling high voltage surges. It also has a cross-section area (Min.) of 4mm², which can accommodate various wire sizes.



Customization:

Our surge protection device is a high-quality pv surge protector that has various certifications such as TUV, CB, CE, ROHS, and ISO9001. It is made in China and has a minimum order quantity of 1PCS. The packaging details come in a carton, and the delivery time is 15 days after receipt of deposit.

We accept payment terms through TT and have a supply ability of 1000000 per month. The format of our surge protection device is plug-in modular with a degree of protection at IP20. It has an operating state of Green/Red and a storage temperature range of -40℃~+85℃. The max continuous operating voltage is at DC 48V.

Customizing our spd product to fit your requirements is our specialty. Contact us now to start your customization project.



Support and Services:

The DC Surge Protection Device is a product that provides protection for DC power systems against voltage surges and lightning strikes. It offers the following technical support and services:

  • Designed to protect DC power systems up to a specified voltage level
  • Provides reliable and continuous protection against voltage surges and lightning strikes
  • Easy to install and maintain
  • Comes with a user manual for proper installation and operation
  • Technical support available for troubleshooting and assistance
  • Regular maintenance and testing services offered to ensure proper functioning and protection



BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 2

BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 3

BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 4

BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 5

BR-40 48  DC SPD pv surge protection device 48V surge arrester  thunder protector 6
