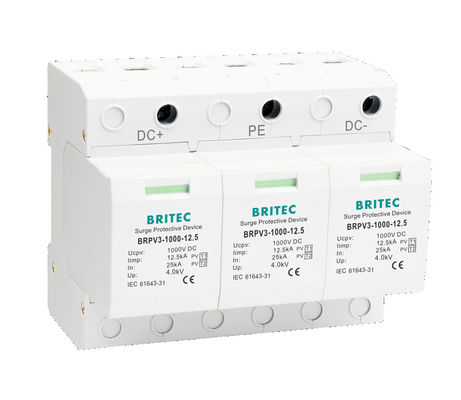

BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc

BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc
BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc

Large Image :  BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000
Document: BRPV3.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Contact Now

BRPV3-1000 DC Surge Protection Device with DC 1200V Max Voltage, Plug-in Modular Design, Surge Protection Dc

Description
Response Time: ≤25ns Degree Of Protection: IP20
Max. Continuous Operating Voltage: DC 1200V Enclosure Material: Thermoplastic UL94-V0
Format: Plug-in Modular Cross-section Area (Max.): 35mm²
Voltage Protection Level: 4.0kV Operating State: Green / Red
Item: DC Power Surge Protector
Highlight:

Plug In Power Surge Protector

,

BRPV3-1000 DC SPD

,

IP20 Dc Surge Suppressor SPD

DC SPD Plug In Power Surge Protector
DC Surge Protection Device designed for photovoltaic systems and DC power applications.
DC Surge Protection Device front view DC Surge Protection Device side view
Product Overview
DC Surge protector is typically installed at the DC input terminal of photovoltaic combiner boxes and inverters. Currently, the maximum Ucpv of DC Surge protector is 1200V DC. This surge protective device protects against lightning surge voltages in solar systems (photovoltaic power supply systems).
  • Storage Temperature Range: -40℃ to +85℃
  • Max. Continuous Operating Voltage: DC 1200V
  • Enclosure Material: Thermoplastic UL94-V0
  • Humidity Range: ≤95%RH
  • Product Name: DC Surge Protection Device
Features and Benefits
The DC Surge Protection Device is a highly reliable and efficient surge arrester, capable of protecting electronic devices from voltage surges up to 1000V. Its compact and durable thermoplastic enclosure provides excellent protection against harsh environmental conditions, making it suitable for both indoor and outdoor use.
Key Features
  • Product Name: DC Surge Protection Device
  • Operating state: Green/Red indicator
  • Humidity Range: ≤95%RH
  • Operating Temperature Range: -40℃ to +85℃
  • Storage Temperature Range: -40℃ to +85℃
  • PV Surge Protector
  • Solar Surge Protective Device
  • 1000V Surge Arrester
Technical Parameters
Parameter Specification
Product Name DC Surge Protection Device
Max. Continuous Operating Voltage DC 1200V
Cross-section area (Max.) 35mm²
Storage Temperature Range -40℃ to +85℃
Humidity Range ≤95%RH
Response Time ≤25ns
Format Plug-in Modular
Maximum Discharge Current 40kA (8/20μs)
Cross-section area (Min.) 4mm²
Voltage Protection Level 4.0kV
Key Applications
  • Suitable for solar surge protection
  • PV surge protector
  • DC surge protector
  • Designed for use in photovoltaic systems
Product Specifications
Brand Name: BRITEC
Model Number: BRPV3-1000
Place of Origin: China
Certification: TUV/CB/CE/ROHS/ISO9001
Degree of Protection: IP20
Ordering Information
  • Minimum Order Quantity: 1 PCS
  • Packaging Details: Carton
  • Delivery Time: 15 days after receipt of deposit
  • Payment Terms: TT
  • Supply Ability: 1,000,000 per month

Wenzhou Britec Electric  Co., Ltd. was established in 2003. BRITEC and TYCOTIU are sister company. Britec is a professional surge protective devices (SPD) manufacturer who design and manufacture surge protection devices for power protection, data protection, PV protection etc.



Britec owns in-house laboratory, the lab has 100kA 10/350 lightning impulse generator, 25kA 10/350 impulse generator and 120kA 8/20 generator, 1.2/50  20kV combination generator, TOV test station and other test equipment.

The company carries ISO9001, ISO45001 , ISO14001 management system. Various products are TUV, CB CE, RoHS, certified.



Britec has long business relationship with European customers and well experience working with multi-national companies.

DC Surge Protection Device technical diagram DC Surge Protection Device installation view DC Surge Protection Device application in solar system
DC Surge Protection Device close-up view DC Surge Protection Device packaging
Customization Services
BRITEC offers customized services for DC surge protective devices to meet specific customer requirements. Our products are rigorously tested and certified, ensuring reliability and safety for various applications.
