Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV/CB/CE/ROHS/ISO9001 |
Model Number: | BR-50GR 1P |
Minimum Order Quantity: | 100PCS |
---|---|
Packaging Details: | carton |
Delivery Time: | 15 days after receipt of deposit |
Payment Terms: | TT |
Supply Ability: | 1000000 per month |
Operation Voltage: | Low Voltage | Origin: | Wenzhou |
---|---|---|---|
Iimp: | 50kA | Product Structure: | Plug |
Weight: | 0.25kgs | Protection Level: | Type 1 |
Rated Voltage: | 150V/275V/320V | Usage: | Low Voltage |
Brand: | BRITEC | OEM: | YES |
Highlight: | Surge Protective Device 150V,Type1 Surge Protective Device 50kA,OEM Type 1 Surge Protector |

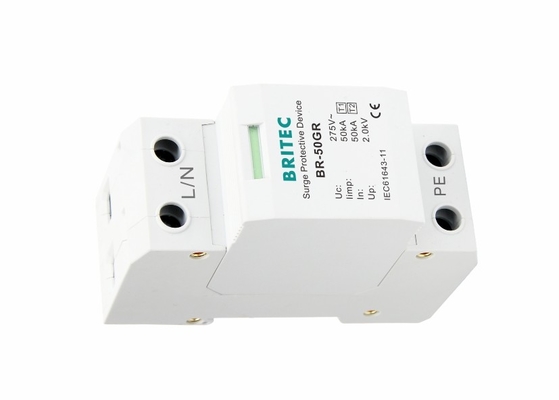

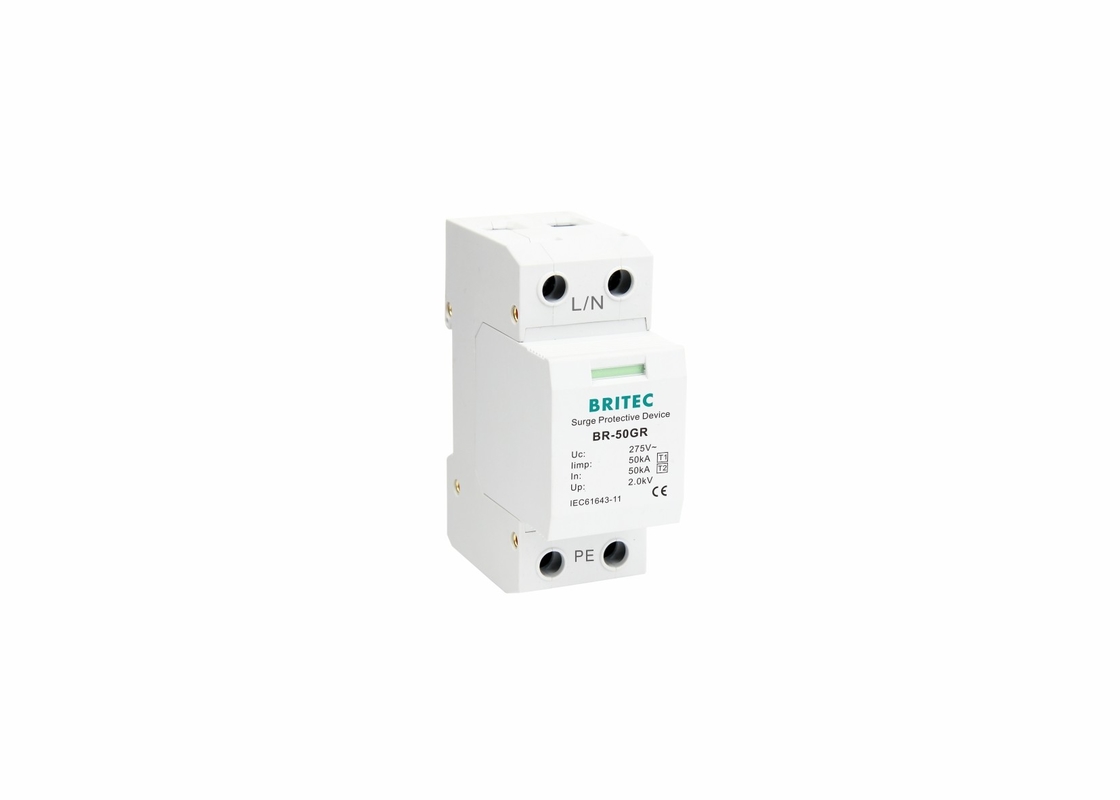

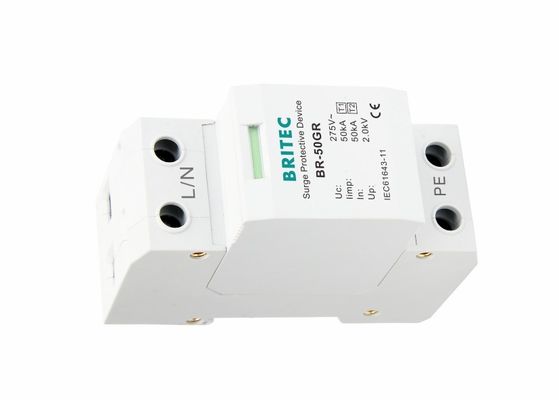

The Type 1 Surge Protection Device is a reliable and compact surge protector device that provides safety against power surges. It is designed to protect electrical and electronic devices from damage caused by sudden voltage spikes, making it an essential component for any home or commercial building.
With an Iimp of 50kA, this surge protection device is capable of handling high levels of surge currents, ensuring the protection of your valuable equipment. It is suitable for use in low voltage systems and is compatible with a wide range of rated voltages, including 150V, 275V, and 320V.
The product structure of the Type 1 Surge Protection Device is plug-in, making it easy to install and use. This feature also makes it suitable for use in various applications, such as residential, commercial, and industrial settings.
Overall, the Type 1 Surge Protection Device is a reliable and essential component for protecting your electrical and electronic devices from power surges. Its plug-in structure, safety, reliability, and ease of installation make it a highly recommended choice for any building or system.
Specification | BR-50GR 1P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 1 |
SPD dassification according to IEC61643-11 | Class I |
Max continuous 0perating a.c. voltage Uc | 275V |
Lightning impulse current (10/350µs) limp | 50kA |
Norminal discharge current (8/20µs) In | 50kA |
Max discharge current (8/20µs) Imax | 200kA |
Voltage protection level Up | ≤2.0kV |
Short-circuit current rating a.c. lsccr | 25kA rms |
Max. backup fuse | 350A gG |
Response time tA | ≤100ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Operating temperature range Tu | -40℃—80℃ |
Cross-section area (Min.) | 4mm² |
Cross-section area (Max.) | 35mm² |
Enclosure material | Thermoplastic UL94-V0 |
Product Name: Type 1 Surge Protection Device
Oem: YES
Protection Level: Type 1
Total Product Width: 36mm
Iimp: 50kA
Application: Commercial/Industrial
Our Type 1 Surge Protection Device is carefully packaged and shipped to ensure safe delivery to our customers.
Each device is individually wrapped in protective packaging to prevent any damage during transportation.
All components and accessories are securely packed to avoid any possible breakage or loss.
The packaging is designed to be compact and lightweight for easy handling.
Clear labeling is used to identify the product and its specifications for easy identification.
We offer various shipping options to meet the specific needs of our customers.
All packages are shipped using reliable and trusted carriers to ensure timely and safe delivery.
We provide tracking information for each shipment so customers can monitor the status of their order.
For international shipments, we comply with all customs regulations to ensure a smooth delivery process.
