| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | TY-40 24 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | TT |
| Supply Ability: | 1000000per month |
| Material: | Thermoplastic UL94-V0 | Warranty: | 5 Years |
|---|---|---|---|
| Response Time: | 25ns | Waveform: | 8/20us |
| Product Name: | DC Surge Protection Device | Mounting: | DIN Rail 35 Mm. |
| Standard: | IEC Standard | Certificate: | TUV,CE,CB,IEC Etc |
| Highlight: | TY-40 24 Surge Protection Device,type2 surge supressor,DIN Rail 35 Mm surge supressor |
||

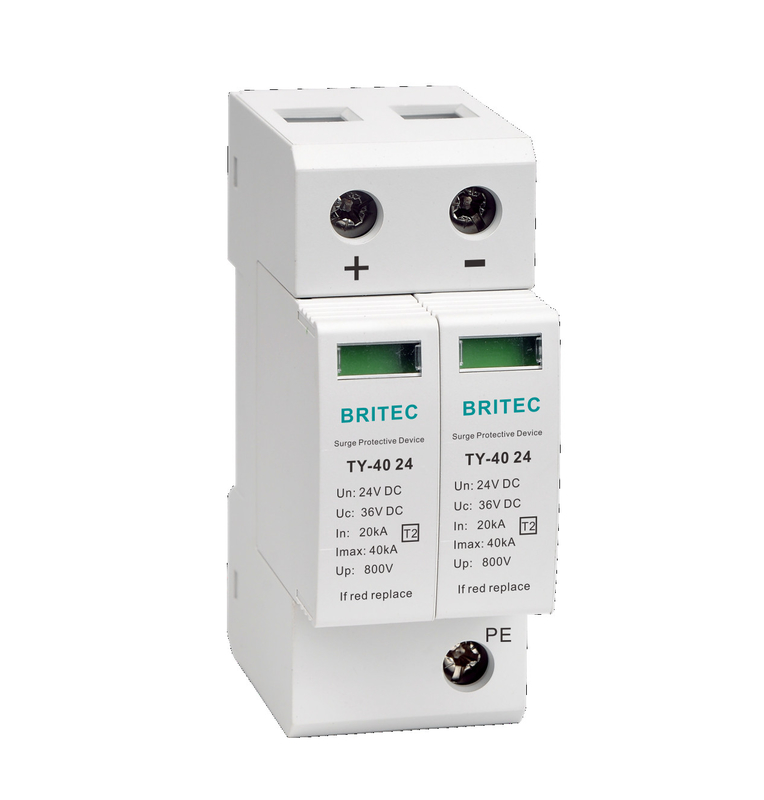

DC 24v Surge Protector 2P 40KA Lightning Arrester Product detail:
| 2 Mod | TY-40 24 |
| SPD classification according to IEC61643-31 | Class II |
| Operating Voltage Un | DC 24V |
| Max. Continuous Operating Voltage Uc | DC 36V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ＜800V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Technology | MOV |
| Format | Plug-in modular |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Standards compliance | IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
Dimension:
Company information:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Certificate:
FAQ:
Q1. Where is your factory?
A: Our factory is located in Yueqing city, Zhengjiang Province.
Q2. When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please tell us in your e-mail so that we will pay more attention to it.
Q3. How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality. If you need the sample, we will charge for the sample fee and express fee. Moreover, the sample fee can be refunded after you place the order to us.
Q4. What kind of files do you accept for drawing?
A: PDF, Core Draw, high resolution Jpg, etc.
Q5. Can you do the design for us?
A: Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Contact Person: Lucky
BR-40 2P Surge Protection Device Class II Spd 275v lightning surge protector varistor surge arrester
BR-40 1+1 DIN Rail Type 2 Surge Protection Device Spd Lightning Protection

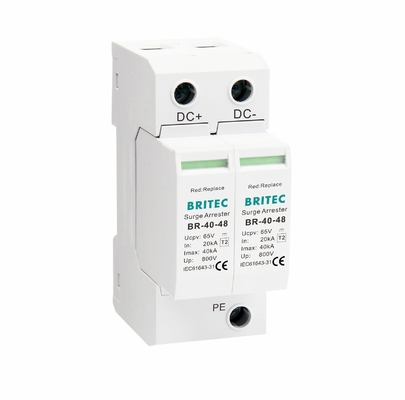

BR-40 48 DC SPD Surge Protection Device Dc Surge Suppressor 40kA 48v Pv Surge Arrester
