|Place of Origin:||China|
|Model Number:||TY-40 1P|
|Minimum Order Quantity:||1PCS|
|Delivery Time:||15 days after receipt of deposit|
|Supply Ability:||1000000 per month|
|Operating Temperature:||-40℃ To +85℃||Max. Discharge Current (8/20μs):||40kA|
|Enclosure Material:||Thermoplastic UL94-V0||Output Current:||10A|
|Product Name:||Power Surge Protection Device||Response Time:||≤25ns|
|For Mounting On:||35mm Din Rail||Max. Continuous Operating A.c. Voltage:||150V-440V|

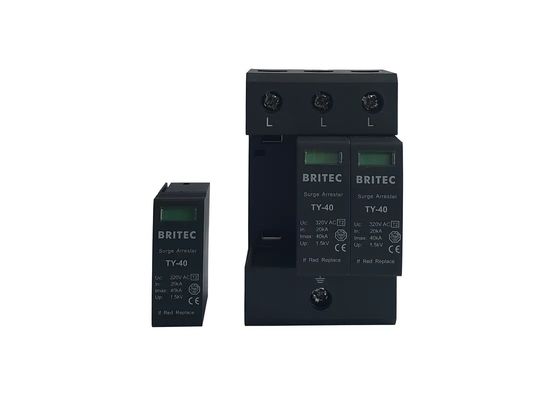

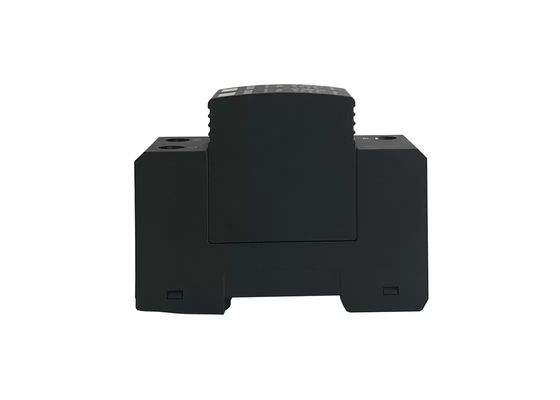

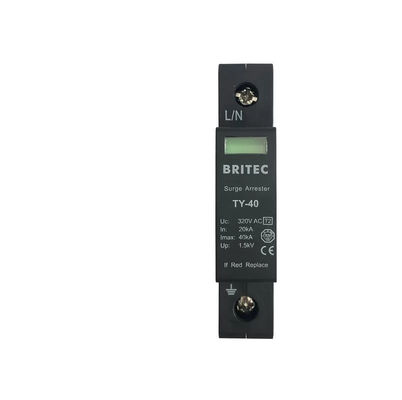

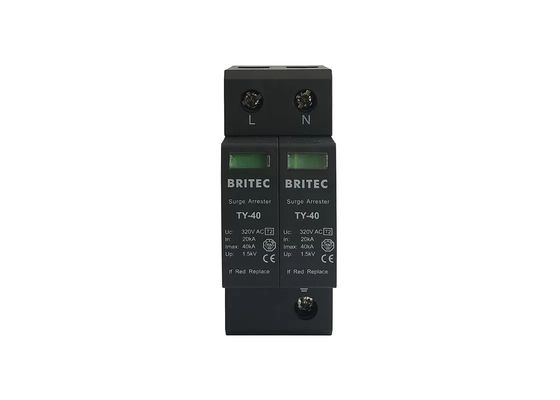

TY-40 1P Surge Protection Device,
Lightning Protection spd surge Device,
275v Lightning Surge Protector Device
The Power Surge Protection Device is designed to provide reliable and robust surge protection for residential, commercial, and industrial applications. It features a maximum continuous operating a.c. voltage of 150V-440V, and a maximum discharge current of 40kA (8/20μs). It is also designed with lightening protection to ensure safe and reliable operation in any environment. This surge suppressor is designed to operate in temperatures ranging from -40℃ to +85℃, making it suitable for various applications. Furthermore, it is designed with a 40kA surge suppressor, lightening protector, and 40kA surge suppressor, making it the ideal choice for reliable surge protection.
|Product Name||Power Surge Protection Device|
|Max. continuous operating a.c. voltage||150V-440V|
|Operating Temperature||-40℃ To +85℃|
|For mounting on||35mm Din Rail|
|Max. discharge current (8/20μs)||40kA|
|Enclosure material||Thermoplastic UL94-V0|
BRITEC's TY-40 1P Power Surge Protection Device provides superior surge protection to ensure reliable operation of your devices and equipment. This 40ka surge suppressor has been certified by TUV/CB/CE/ROHS/ISO9001 and is designed to handle high surge currents and voltages. It boasts a maximum continuous operating a.c. voltage of 150V-440V and a high protection level with a response time of ≤25ns. The Thunder Protector is available in a minimal order quantity of 1PCS, and each piece will be packed in a carton. Delivery time is 15 days after receipt of deposit, and the payment terms are TT. BRITEC guarantees a supply ability of 1000000 pieces per month.
This BRITEC TY-40 1P Power Surge Protection Device is a thunder protector, specially designed for your safety and security. It is equipped with the highest protection level, and features a thermoplastic UL94-V0 enclosure which is highly resistant to lightning strikes. It also provides a very fast response time of ≤25ns, and can handle up to 10A of output current. With its TUV/CB/CE/ROHS/ISO9001 certification, you can rest assured that your safety is guaranteed.
Power Surge Protection Device Technical Support and Service
The Power Surge Protection Device (PSPD) is designed to protect your device from power surges. Our team is dedicated to providing superior technical support and service for the PSPD.
We offer a wide range of technical support options, including online support, phone support, and in-person support. Our technical support team is available to answer any questions you may have about the PSPD and its features. We also provide step-by-step instructions for troubleshooting and resolving any issues you may encounter.
We also offer a variety of services, such as installation, maintenance, and repairs. Our experienced technicians are available to assist you with any service needs. We also provide warranty and extended warranty services.
If you have any questions or need assistance with the PSPD, please contact us via email or phone. We look forward to helping you get the most out of your Power Surge Protection Device!
