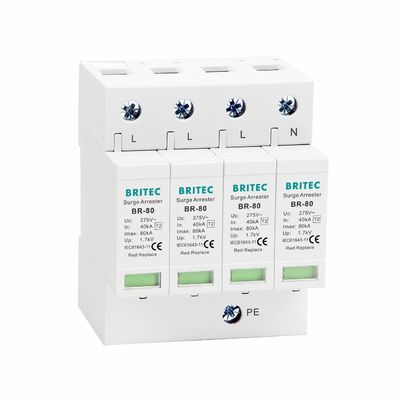

BR-80 4P Type 2 Surge Protection Device SPD 80KA 4P Surge Protector for Lightning Protection

Large Image : BR-80 4P Type 2 Surge Protection Device SPD 80KA 4P Surge Protector for Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE/TUV/CB
Model Number:	BR-80 4P
Document:	BR-80 4P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Export packaging
Delivery Time:	30 days after receipt of deposit
Payment Terms:	T/T
Supply Ability:	100000 per month

Contact Now

BR-80 4P Type 2 Surge Protection Device SPD 80KA 4P Surge Protector for Lightning Protection

Description

Standards:	EN61643-11/IEC61643-11	Spd According:	Type 2
Class:	Class II	Humidity Range:	0~95%RH
Model:	AC SPD	Waveform:	8/20 Us
Housing Material:	UL94V-0 Standard	Item:	Lightning Arrester
Product Srtucture:	Plug	Keyword:	Lightning Protection
Highlight:	BR-80 Type2 Surge Protection Device , 80KA 4P Surge Protector , 4P Type2 Surge Protection Device

BR-80 4P Type 2 Surge Protection Device SPD 80KA 4P Surge Protector

Product Overview

This Type 2 Surge Protection Device provides maximum protection against power surges with advanced design offering protection levels up to IP20. Suitable for various voltage applications and available as an OEM product, the BR-80 4P model delivers reliable surge protection for diverse applications.

Technical Specifications

Parameter	BR-80 150 4P	BR-80 275 4P	BR-80 320 4P	BR-80 385 4P
SPD classification (EN61643-11)	Type 2	Type 2	Type 2	Type 2
SPD classification (IEC61643-11)	Class II	Class II	Class II	Class II
Max. continuous operating voltage Uc	150V	275V	320V	385V
Nominal discharge current (8/20μs) In	40kA	40kA	40kA	40kA
Max. discharge current (8/20μs) Imax	80kA	80kA	80kA	80kA
Voltage protection level Up	≤1.0kV	≤1.7kV	≤2.0kV	≤2.3kV
Voltage protection level 5kA Up	≤0.5kV	≤0.9kV	≤1.1kV	≤1.3kV
Max. backup fuse	160A gG	160A gG	160A gG	160A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range	-40℃ to 80℃	-40℃ to 80℃	-40℃ to 80℃	-40℃ to 80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20

Dimensions

Key Features

Product Name: Type 2 Surge Protection Device
Model number: BR-80 4P
OEM: Yes
Uc: 150V/275V/320V/385V
Type: Type 2 Surge Protection Device
Response Time: ≤25ns

Applications

The Type 2 Surge Protection Device from BRITEC provides protection from dangerous voltage surges and spikes. Suitable for AC 50/60Hz systems, typically installed in household distribution boxes, computer centers, information equipment, electronic equipment, and control systems.

Support and Services

Technical support and service are provided by our experienced team of professionals who will help identify the most suitable product for your application. Our team offers expert advice and guidance in surge protection devices, along with comprehensive after-sales services including replacement of defective parts.

Frequently Asked Questions

What is the Brand Name of the Type 2 Surge Protection Device?

The Brand Name of the Type 2 Surge Protection Device is BRITEC.

What is the Model Number of the Type 2 Surge Protection Device?

The Model Number of the Type 2 Surge Protection Device is BR-80 4P.

Where is the Type 2 Surge Protection Device made?

The Type 2 Surge Protection Device is made in China.

What is the Minimum Order Quantity for the Type 2 Surge Protection Device?

The Minimum Order Quantity for the Type 2 Surge Protection Device is 100pcs.
