60kA Type 2 Surge Protection Device 3P+NPE Surge Protector for AC Systems

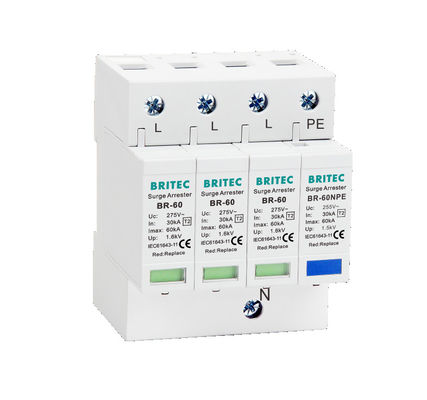

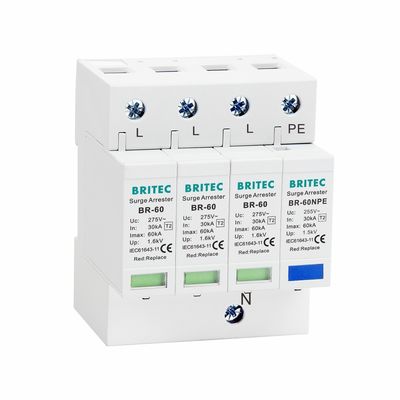

Large Image : 60kA Type 2 Surge Protection Device 3P+NPE Surge Protector for AC Systems

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-60 3+1
Document:	BR-60 3+1.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Export packaging
Delivery Time:	30 days after receipt of deposit
Payment Terms:	T/T
Supply Ability:	100000 per month

Contact Now

60kA Type 2 Surge Protection Device 3P+NPE Surge Protector for AC Systems

Description

Dimension:	907270mm	Maximum Discharge Current:	60kA
Nominal Discharge Current:	30kA	Installation Type:	DIN Rail 35 Mm
Pole No:	3P+NPE	Spd According:	Type 2
Nominal Voltage:	230V/400V	Standard:	IEC/EN 61643-11
Application:	AC System	Keyword:	Lightning Protection
Highlight:	60KA Surge Type2 Protection Device , 3P+NPE Surge Protector Device , 907270mm Surge Protector Device

60KA Type 2 Surge Protection Device T2 Class II 3P+NPE Surge Protector

Product Overview

Type 2 Surge Protection Device is designed for protecting sensitive electronic equipment from power surges. Constructed from fire-resistant and temperature-resistant Thermoplastic UL94-V0 material, it offers fast response time of 25ns. Available in low voltage classes and OEM versions for custom applications.

Technical Specifications

Parameter	BR-60 150 3+1	BR-60 275 3+1	BR-60 320 3+1	BR-60 385 3+1
SPD classification (EN61643-11)	Type 2	Type 2	Type 2	Type 2
SPD classification (IEC61643-11)	Class II	Class II	Class II	Class II
Max. continuous operating voltage Uc	150V	275V	320V	385V
Max. continuous operating voltage [N-PE] Uc	255V	255V	255V	255V
Nominal discharge current (8/20μs) In	30kA	30kA	30kA	30kA
Max. discharge current (8/20μs) Imax	60kA	60kA	60kA	60kA
Voltage protection level Up	≤1.0kV	≤1.6kV	≤1.8kV	≤2.2kV
Voltage protection level 5kA Up	≤0.5kV	≤0.6kV	≤1.0kV	≤1.2kV
Voltage protection level [N-PE] Up	≤1.5kV	≤1.5kV	≤1.5kV	≤1.5kV
Max. backup fuse	160A gG	160A gG	160A gG	160A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Response time [N-PE] tA	≤100ns	≤100ns	≤100ns	≤100ns
Operating temperature range	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20

Dimensions

Key Features

Product Name: Type 2 Surge Protection Device
Size: 90*72*70mm
Protection Mode: Common Mode, Differential Mode
Humidity: ≤95%RH
Operating Temperature: -40℃ to +80℃

Applications

Ideal for providing protection for electrical systems against lightning and power surge events. Suitable for low voltage applications and an excellent choice for comprehensive lightning and surge protection solutions.

Frequently Asked Questions

Q1: What is the brand name of this product?

A1: The brand name of this product is BRITEC.

Q2: What is the model number of this product?

A2: The model number of this product is BR-60 3+1.

Q3: Where is this product manufactured?

A3: This product is manufactured in China.

Q4: What is the minimum order quantity?

A4: The minimum order quantity is 100 pieces.
