|Place of Origin:||China|
|Model Number:||BR-25M 2P|
|Minimum Order Quantity:||1PCS|
|Delivery Time:||15 days after receipt of deposit|
|Supply Ability:||1000000 per month|
|Product Structure:||Plug||Response Time:||≤100ns|
|Product Name:||Type 1 Surge Protection Device||Protection Class:||IP20|

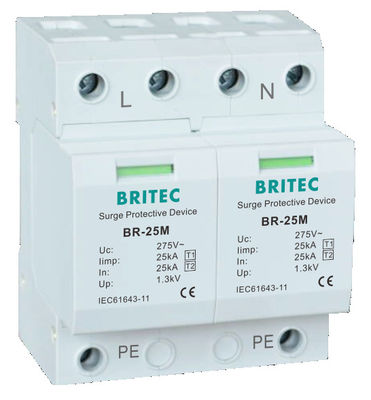

BR-25M Type1 Surge Protection Device,
T1 Low Voltage Arrester Device,
SPD T1 Arrester Device
Combined impulse: 25kV.
Anti-counterfeiting label pressure molding, ensure the uniqueness of the product.
Remote signal terminals, the product can be configured remote terminals, remote monitoring.
The shell adopts thermal plastic material, high flame retardant, anti-corrosion, harsh environment still normal use.
Type 1 Surge Protection Device (SPD) is designed to protect AC power lines and communication lines from over voltage lightning strikes and other power disturbances. It provides superior protection against transient over-voltage events up to 6000V and boasts a super fast response time of less than 100 nanoseconds, in full compliance with IEC 61643-11 standard. The surge protector device has a lightweight yet robust construction, weighing only 0.5kg, and is capable of operating in a wide temperature range of -40°C to 80°C.
|Specification||BR-25M 150 2P||BR-25M 275 2P||BR-25M 320 2P|
|SPD classification according to EN61643-11||Type 1 + Type 2 + Type 3|
|SPD classification according to IEC61643-11||Class I + Class II + Class III|
|Nominal operating voltage||Un||120V(50/60Hz)||230V(50/60Hz)||230V(50/60Hz)|
|Max. continuous operating a.c. voltage||Uc||150V(50/60Hz)||275V(50/60Hz)||320V(50/60Hz)|
|Lightning impulse current (10/350μs)||Iimp||25kA||25kA||25kA|
|Nominal discharge current (8/20μs)||In||25kA||25kA||25kA|
|Max. discharge current (8/20μs)||Imax||100kA||100kA||100kA|
|Quantity of electric charge||Q||12.5As||12.5As||12.5As|
|Voltage protection level||Up||≤1.3kV||≤1.3kV||≤1.3kV|
|Short-circuit current rating a.c.||Isccr||25kA rms||25kA rms||25kA rms|
|Max. backup fuse||315A gG||315A gG||315A gG|
|Temporary overvoltage||TOV||335V/5s -withstand|
|Operating temperature range||Tu||-40℃-80℃||-40℃-80℃||-40℃-80℃|
|Cross-section area (Min.)||4mm²||4mm²||4mm²|
|Cross-section area (Max.)||35mm²||35mm²||35mm²|
|For mounting on||35mm Din rail|
|Enclosure material||Thermoplastic UL94-V0|
|Degree of protection||IP20||IP20||IP20|
|Order Code (With remote signaling)||B7205||B8124||B7218|
BRITEC BR-25M 2P Type 1 Surge Protection Device is the ideal lightning and overvoltage protection solution for residential and commercial applications. This product is certified by TUV/CB/CE/ROHS/ISO9001 and is designed to meet the highest quality standards. It features a minimum order quantity of 1PCS, comes in a carton for delivery, and can be ordered within 15 days after receipt of deposit. Payment terms are TT, and supply ability is up to 1000000 per month. Additionally, the response time is ≤100ns and the weight of the product is 0.5kg. It offers a protection class of IP20 and a humidity rating of 95%. The number of poles is also adjustable, with 1P, 1P+N, 2P, 3P, 3P+N, 4P options available.
Brand Name: BRITEC
Model Number: BR-25M 2P
Place of Origin: China
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Standard: IEC Standard
Humidity Rating: 95%

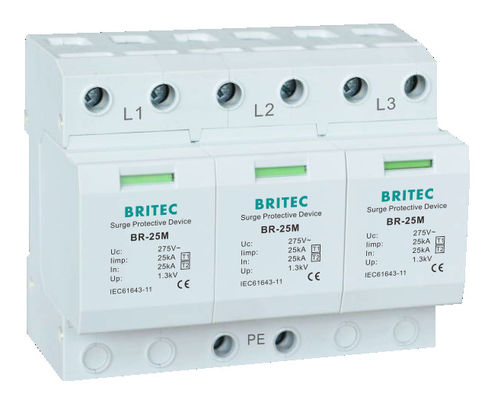

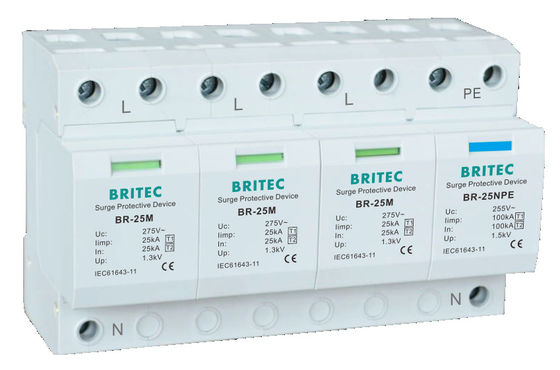

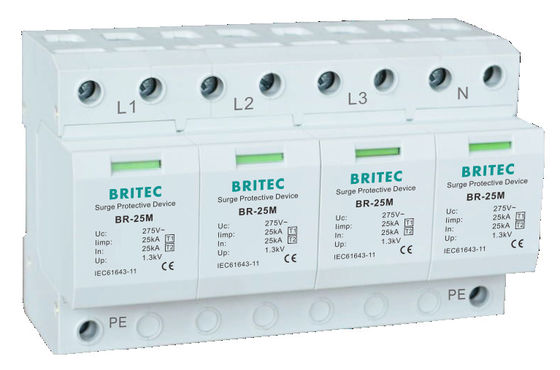

Number of Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P Optional
Protection Level: Type 1
This BRITEC BR-25M 2P Type 1 Surge Protection Device is an ideal choice for protecting valuable electrical equipments from the damaging effects of high voltage surges. It is 25ka surge protector with IEC Standard, suitable for 1P, 1P+N, 2P, 3P, 3p+N and 4P configurations. It is certified by TUV/CB/CE/ROHS/ISO9001 and comes with a minimum order quantity of 1PCS. It has a humidity rating of 95% and a weight of 0.5kg.
Packaging and Shipping for Type 1 Surge Protection Device:
