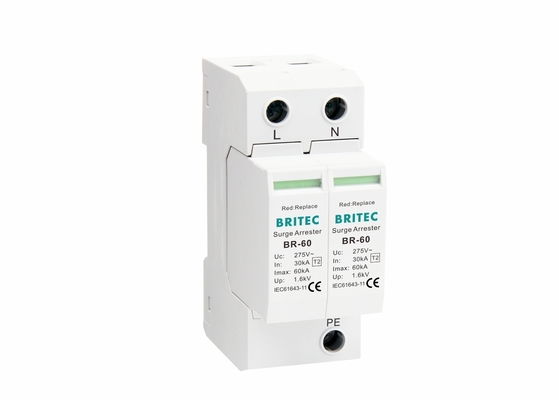

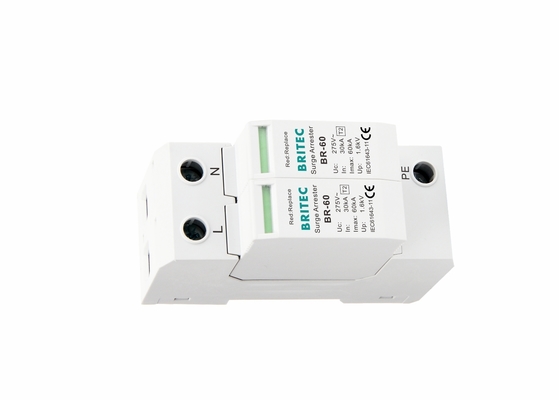

Type 2 Surge Protection Device 30kA 60kA SPD Product Description:
BRITEC Type 2 Surge Protection Device is the ultimate solution for lightning protection. It is designed to protect your devices from overvoltage caused by lightning strikes and other adverse conditions. It is also robust enough to withstand operating temperatures ranging from -40℃ to +80℃ and humidity levels between 5% and 95% RH, making it a reliable choice for your lightning protection needs. With BRITEC Type 2 Surge Protection Device, you can rest assured that your device is safe from lightning-induced electrical damage.
Type 2 Surge Protection Device 30kA 60kA SPD Features:
- Product Name: Type 2 Surge Protection Device
- Max. Discharge Current: 60kA
- Max. Continuous Operating Voltage: 150V/275V/320V/385V
- Rated Voltage: 230V/400V
- Nominal Discharge Current: 30kA
Type 2 Surge Protection Device 30kA 60kA SPD Technical Parameters:
| |
BR-60 150 2P |
BR-60 275 2P |
BR-60 320 2P |
BR-60 385 2P |
| SPD classification according to EN61643-11 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification according to IEC61643-11 |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating a.c. voltage Uc |
150V |
275V |
320V |
385V |
| Nominal discharge current (8/20us) In |
30kA |
30kA |
30kA |
30kA |
| Max. discharge current(8/20μs) Imax |
60kA |
60kA |
60kA |
60kA |
| Voltage protection level Up |
≤1.0kV |
≤1.6kV |
≤1.8kV |
≤2.2kV |
| Voltage protection level 5kA Up |
≤0.5kV |
≤0.6kV |
≤1kV |
≤1.2kV |
| Max. backup fuse |
160A gG |
160A gG |
160A gG |
160A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
| Cross-section area (Min.) |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
Surge arrester sizing:
Type 2 Surge Protection Device 30kA 60kA SPD Applications:
BRITEC BR-60 2P Type 2 Surge Protection Device is designed to protect against overvoltage transients, which can cause serious damage to electrical and electronic equipment. BRITEC BR-60 2P Type 2 Surge Protection Device is ideal for both industrial and commercial applications. It ensures safe and reliable operation of electrical and electronic equipment.
Surge arrester definition
A surge arrester, also known as a surge protection device (SPD) or lightning arrester, is a device designed to protect electrical equipment from voltage surges, which are sudden increases in voltage that can damage or destroy sensitive electronics.
Surge arrester protection
FAQ:
Q1: What is the Brand Name of the Type 2 Surge Protection Device?
A1: The Brand Name of the Type 2 Surge Protection Device is BRITEC.
Q2: What is the Model Number of the Type 2 Surge Protection Device?
A2: The Model Number of the Type 2 Surge Protection Device is BR-60 2P.
Q3: Where is the Type 2 Surge Protection Device produced?
A3: The Type 2 Surge Protection Device is produced in China.
Q4: What is the Minimum Order Quantity for the Type 2 Surge Protection Device?
A4: The Minimum Order Quantity for the Type 2 Surge Protection Device is 100pcs.
