|Place of Origin:||China|
|Model Number:||BR-25GR 1P+1|
|Minimum Order Quantity:||1PCS|
|Delivery Time:||15 days after receipt of deposit|
|Payment Terms:||TT, L/C, D/A, D/P|
|Supply Ability:||1000000 per month|
|Type Of Current:||AC||Operating Temperature:||-40℃~+85℃|
|Product Name:||T1+T2 Surge Arrester B+C||Material:||Thermoplastic UL94-V0|
|Warranty:||5 Years||Respones Time:||≤100ns|
|Rated Frequency:||50/60Hz||Mounting:||DIN Rail 35 Mm.|
BR-25GR T1+T2 Surge Arrester B+C,
T1+T2 Surge Arrester B+C 25KA,
Single phasse T1+T2 Surge Arrester B+C

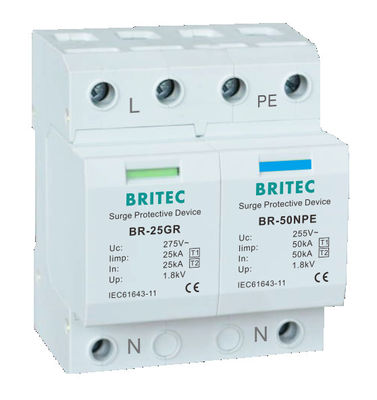

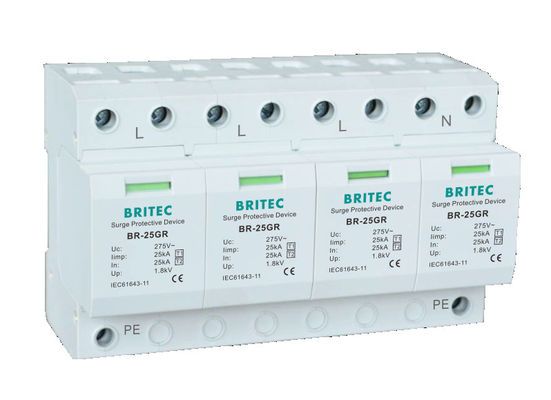

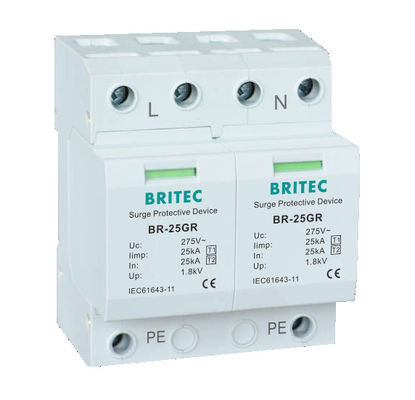

The T1+T2 Surge Arrester B+C is a Surge Protection Device (SPD) designed for use in low voltage installations, providing protection against the effects of lightning and other transient overvoltages. It is a lightening protector suitable for the protection of electrical and electronic equipment against transient overvoltages. This SPD is easy to install and provides reliable protection.
The T1+T2 Surge Arrester B+C is made of thermoplastic material UL94-V0 and can be mounted on a DIN Rail 35mm. It has 1 pole + 1. Its waveform is 10/350. This SPD guarantees that the protected equipment is safe from electrical overvoltages, preventing any damage or malfunction.
|Product Name||T1+T2 Surge Arrester B+C|
|Protection Level||Up To 1.8kV|
|Type of current||AC|
|Mounting||DIN Rail 35 Mm.|
BRITEC BR-25GR 1P+1 T1+T2 Surge Arrester B+C is a reliable and effective Surge Protection Device (SPD) designed for lightning protection. It is certified by TUV/CB/CE/ROHS/ISO9001, built with Thermoplastic UL94-V0 material, and has a response time of ≤100ns and a waveform of 10/350. This surge arrester is capable of withstanding high voltage surges and can be used for a variety of applications including electrical systems, power lines, and communication systems. It has a minimum order quantity of 1PCS and is packaged in a carton for safe delivery. With a supply ability of 1000000 per month, BRITEC BR-25GR 1P+1 T1+T2 Surge Arrester B+C is ideal for those looking for a fast and reliable lightning protection solution. Payment terms are TT and the delivery time is 15 days after receipt of deposit.
According to different lightning protection areas, AC Surge protective device is divided into four categories: Type 1, Type 2, Type 3 and Type 1+2 Surge protective devices.
We provide technical support and service for T1 + T2 Surge Arrester B+C. Our team of experts is available to answer any questions you may have about the product. We can also provide installation and maintenance services, as well as troubleshooting and repair services. We are committed to providing the best possible customer experience and ensuring your satisfaction.
T1+T2 Surge Arrester B+C Packaging and Shipping:
The T1+T2 Surge Arrester B+C will be packaged and shipped in an appropriate packaging material that can protect the product from damage and ensure its safe delivery. It will be shipped in a cardboard box, bubble wrap, and foam padding. The box will also include a packing slip and an instruction manual. The package will be marked with the product name and the shipping address.
A1: T1+T2 Surge Arrester B+C is a product of BRITEC, model number BR-25GR 1P+1. It is designed to protect electrical equipments from over-voltage surges.
A2: T1+T2 Surge Arrester B+C is certified by TUV/CB/CE/ROHS/ISO9001.
A3: The minimum order quantity of T1+T2 Surge Arrester B+C is 1PCS.
A4: T1+T2 Surge Arrester B+C is packaged in a carton.
A5: T1+T2 Surge Arrester B+C will be delivered in 15 days after receipt of deposit.
