| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV,CE,CB,IEC |
| Model Number: | BR-40 3+1 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Export packaging |
| Delivery Time: | 20 days after receipt of deposit |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 per month |
| Origin: | Wenzhou | Brand: | BRITEC |
|---|---|---|---|
| Response Time: | Less Than 25 Nanosecond | Operating Temperature Range: | -40°C To +80°C |
| Protection Modes: | L-N, L-PE, N-PE | Warranty: | 2 Years |
| Protection Indication: | Mechanical | Maximum Discharge Current: | 40kA |
| Nominal Discharge Current: | 20kA | Protection Level: | IP20 |

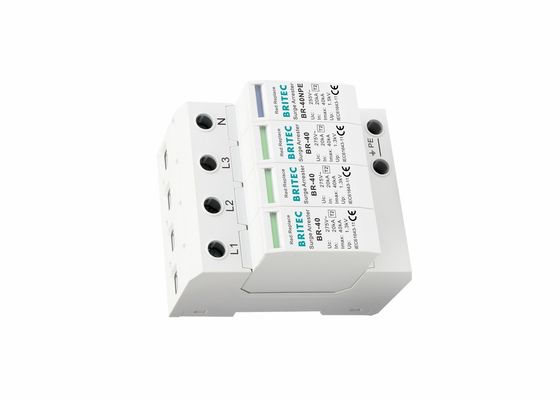

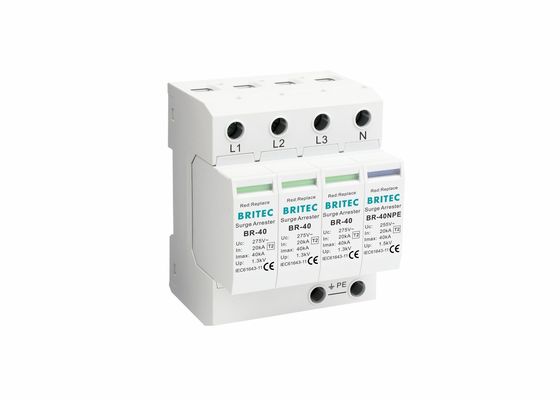

| High Light: | Type 2 Surge Protector Device 40kA,3P+NPE Type 2 Surge Protector,BR-40 IP20 Type 2 Surge Protector |
||
The Type 2 Surge Protection Device is an essential device for protecting electronic equipment from the damaging effects of transient overvoltage. It is designed to provide the highest level of protection with IP20, response time less than 25 nanoseconds, mechanical protection indication and nominal discharge current of 20kA. The device is also highly reliable, and can be used for a variety of applications. It is backed up by a 2 years warranty for added peace of mind. With its user-friendly design, it is easy to install and maintain. It is a perfect solution for protecting your electronic equipment from the damaging effects of transient overvoltage.
| BR150 40 3P+NPE | BR275 40 3P+NPE | BR320 40 3P+NPE | BR385 40 3P+NPE | BR440 40 3P+NPE | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V | 440V |
| Max. continuous operating a.c. voltage[N -PE] Uc | 255V | 255V | 255V | 255V | 255V |
| Nominal discharge current (8/20us) In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current(8/20μs) Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Voltage protection level [N-PE] Up | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Follow current extinguishing capability[ N-PE]a.c.Ifi | 100Arms | 100Arms | 100Arms | 100Arms | 100Arms |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Response time [N-PE] tA | ≤100ns | ≤100ns | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail | ||||
| Enclosure material | Thermoplastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
| Order Code | B8451 | B8453 | B8455 | B8457 | B8249 |
| Order Code (With remote signaling) | B8452 | B8454 | B8456 | B8458 | B8250 |
Type 2 Surge Protection Device is securely packaged for shipping with the following:
A: A Type 2 Surge Protection Device (also known as a SPD) is an electrical device designed to protect electrical and electronic equipment from the damaging effects of transient voltage, such as lightning and utility switching.
A: The Brand Name is BRITEC, the Model Number is BR-40 3+1 and the Place of Origin is China.
A: The BRITEC BR-40 3+1 Surge Protection Device has TUV, CE, CB and IEC certifications.
A: The Minimum Order Quantity is 100pcs.
A: The Packaging Details is Export packaging, the Delivery Time is 20 days after receipt of deposit, the Payment Terms is T/T and the Supply Ability is 1000000 per month.
