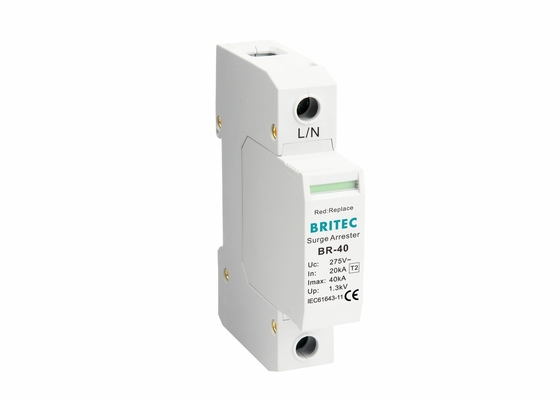

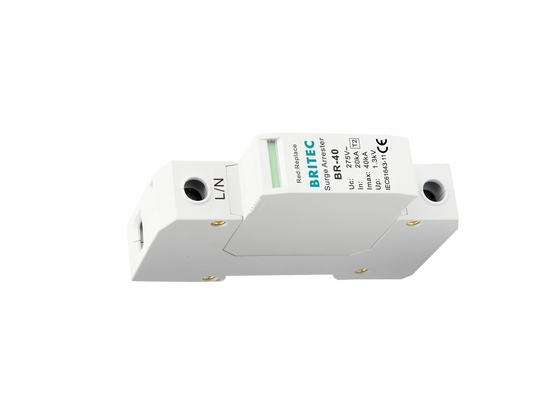

CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V

CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V

  • CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V
  • CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V
CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CB/S/CE
Model Number: BR-40 1P
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Export packaging
Delivery Time: 20 days after receipt of deposit
Payment Terms: T/T
Supply Ability: 1000000 per month
Contact Now
Detailed Product Description
Origin: Wenzhou Model: BR-40 1P
Product Name: Type 2 Surge Protection Device Response Time: Less Than 25ns
Certificate: CB/S/CE Protection Level: IP20
Nominal Discharge Current: 20KA Max. Discharge Current: 40kA
Operating Temperature Range: -40℃~80℃ Maximum Continuous Operating Voltage: 150V/275V/320V/385V/440V
Highlight:

CB/S Type2 Surge Protector

,

Type2 Surge Protector 440V

,

40kA Type2 Surge Protector Device

CB/S Certified Type 2 40kA Surge Protector Product Description:

Type 2 Surge Protection Device

This Type 2 Surge Protection Device from BRITEC has been certified by CB/S and guarantees the highest levels of safety and protection. It is designed to safeguard various electrical and electronic devices from damaging surges and transients. It has a maximum discharge current of 40kA and is rated for voltage up to 230V/400V. This device is an effective solution for protecting your valuable equipment from power surges and lightning strikes.

CB/S Certified Type 2 40kA Surge Protector Features:

  • Product Name: Type 2 Surge Protection Device
  • Maximum Continuous Operating Voltage: 150V/275V/320V/385V/440V
  • Brand: BRITEC
  • Certificate: CB/S
  • Nominal Discharge Current: 20KA
  • Humidity Range: 0-95%RH

CB/S Certified Type 2 40kA Surge Protector Technical Parameters:

  BR150 40 1P BR275 40 1P BR320 40 1P BR385 40 1P BR440 40 1P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)               Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                             tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                      Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication green / red green / red green / red green / red green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20
Order Code B8101 B8103 B8105 B8107 B8109
Order Code (With remote signaling) B8102 B8104 B8106 B8108 B8110



Dimension:

CB/S Certified Type 2 40kA Surge Protector 150V / 275V / 320V / 385V / 440V 0

CB/S Certified Type 2 40kA Surge Protector Applications:

The BRITEC Type 2 Surge Protection Device BR-40 1P is a reliable and efficient surge protector that is designed to protect sensitive equipment from power surge and overvoltage damage.

This BRITEC Type 2 Surge Protection Device BR-40 1P is an ideal choice for protecting sensitive equipment from power surges and overvoltage that could otherwise cause costly damage. It is certified by the leading international safety standards, and is designed to provide reliable, efficient, and safe surge protection for all types of applications.

Support and Services:

Type 2 Surge Protection Device technical support and service include:

  • 24-hour customer service hotline
  • Free online training and tutorials
  • Comprehensive product warranty

FAQ:

Q1: What is the Brand Name of this Type 2 Surge Protection Device?

A1: The Brand Name of this Type 2 Surge Protection Device is BRITEC.

Q2: What is the Model Number of this Type 2 Surge Protection Device?

A2: The Model Number of this Type 2 Surge Protection Device is BR-40 1P.

Q3: Where is this Type 2 Surge Protection Device made?

A3: This Type 2 Surge Protection Device is made in China.

Q4: What certifications does this Type 2 Surge Protection Device have?

A4: This Type 2 Surge Protection Device has TUV,CE,CB,IEC certifications.

Q5: What is the minimum order quantity for this Type 2 Surge Protection Device?

A5: The minimum order quantity for this Type 2 Surge Protection Device is 200pcs.
