BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA

BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA

  • BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA
  • BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA
  • BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA
BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV,CE,CB,IEC
Model Number: BR-40 3P
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Export packaging
Delivery Time: 15 days after receipt of deposit
Payment Terms: T/T
Supply Ability: 1000000 per month
Contact Now
Detailed Product Description
Operating Temperature: -40°C - 80°C Protection Level: IP20
Series: BR-40 Characteristics: Surge Protection Device
Frequency Range: 50/60Hz Waveform: 8/20
Product Type: Type 2 Surge Protection Device Location: Indoor
Highlight:

Three Phase Type2 Spd Lightning Arrester

,

Type2 Spd Surge Protector 40kA

,

BR-40 3P Type2 Surge Protector

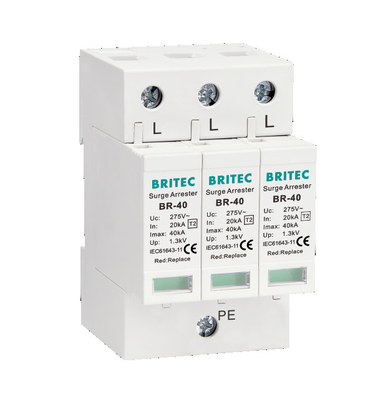

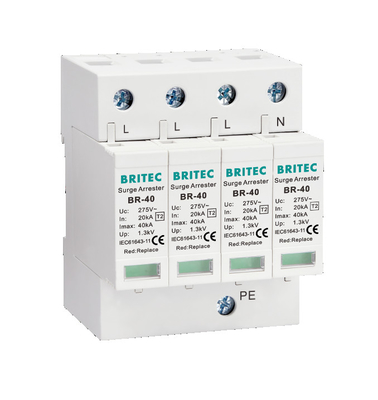

BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA 0



BR-40 3P Three Phase Spd Lightning Arrester Class II Surge Protector 40kA 1

Product Description:

Type 2 Surge Protection Device is designed to protect electrical and electronic equipment from overvoltages resulting from both internal and external sources. It works by limiting the voltage supplied to an electrical device, and is especially important in protecting delicate hardware from surges and spikes. The device is capable of withstanding a max. discharge current of 40kA and operating temperature of -40℃~+80℃.  It also has an 8/20 waveform which is suitable for most types of equipment. Therefore, the Type 2 Surge Protection Device is an ideal choice for both residential and commercial applications.



Features:

  • Product Name: Type 2 Surge Protection Device
  • Product Type: Type 2 Surge Protection Device
  • Operating Temperature: -40℃~+80℃
  • Max. Discharge current: 40kA
  • Nominal Discharge Current: 20kA
  • Location: Indoor


Technical Parameters:

Item Description
Product Type Type 2 Surge Protection Device
Response Time 25ns
Shipping term TNT DHL FEDEX EMS UPS
Voltage 150V/275V/320V/385V/440V
Protection Level IP20
Nominal Discharge Current 20kA
Max. Discharge Current 40kA
Humidity Range 0~95%RH
Material Thermoplastic UL94-V0
Operating Temperature -40℃~+80℃


Applications:

BRITEC's BR-40 3P Type 2 Surge Protection Device is a reliable and trusted surge protection solution. It is certified by TUV, CE, CB, and IEC, and comes with a minimum order quantity of 10pcs. The product is expertly packaged in export packaging to ensure its safety during transit. Delivery time is 15 days after receipt of deposit. Payment terms are T/T and a supply ability of 1000000 pieces per month is available. The protection class is Class II and the protection level is IP20, with a response time of 25ns. It is part of the BR-40 series of Type 2 Surge Protection Devices.



Customization:

Type 2 Surge Protection Device – BRITEC BR-40 3P
  • Brand Name: BRITEC
  • Model Number: BR-40 3P
  • Place of Origin: China
  • Certification: TUV,CE,CB,IEC
  • Minimum Order Quantity: 10pcs
  • Packaging Details: Export packaging
  • Delivery Time: 15 days after receipt of deposit
  • Payment Terms: T/T
  • Supply Ability: 1000000 per month
  • Series: BR-40
  • Frequency Range: 50/60Hz
  • Location: Indoor
  •

BRITEC BR-40 3P Type 2 Surge Protection Device is designed to protect electrical and electronic equipment against transient overvoltages. With its high surge current handling capacity and superior protection characteristics, this type 2 surge protector ensures reliable protection for your equipment. It offers reliable protection with minimum losses, and is certified to TUV,CE,CB,IEC standards.

Features:

  • Frequency range 50/60Hz
  • Location: indoor
  • Nominal discharge current: 20kA

Minimum order quantity: 10pcs

Delivery time: 15 days after receipt of deposit

Payment terms: T/T

Supply ability: 1000000 per month



Support and Services:

Type 2 Surge Protection Device Technical Support and Service

We provide technical support and service for Type 2 Surge Protection Devices. Our team of experienced technicians is available to provide assistance and assistance with installation, maintenance and troubleshooting of these devices.

Our support staff is available 24/7 to answer any questions you may have about the device and provide helpful advice on proper usage. We also provide a comprehensive warranty that covers defects and malfunctions for up to one year.

We strive to provide the best possible customer service and satisfaction. If you ever have any issues with your device or need assistance, please don’t hesitate to contact us.



FAQ:

Q: What is the brand name of Type 2 Surge Protection Device?
A: The brand name of Type 2 Surge Protection Device is BRITEC.

Q: What is the model number of this product?
A: The model number of Type 2 Surge Protection Device is BR-40 3P.

Q: Where is this product manufactured?
A: This product is manufactured in China.

Q: What certifications does this product have?
A: This product has TUV,CE,CB,IEC certifications.

Q:How many pieces does one minimum order contain?
A: One minimum order contains 10 pieces.
