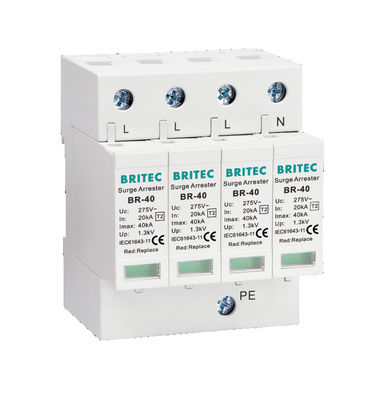

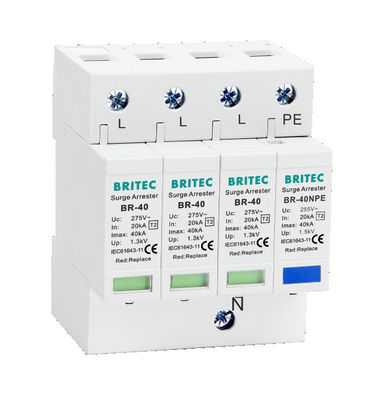

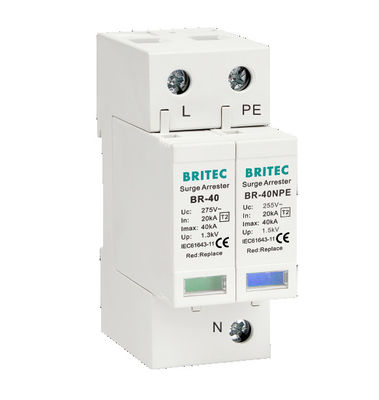

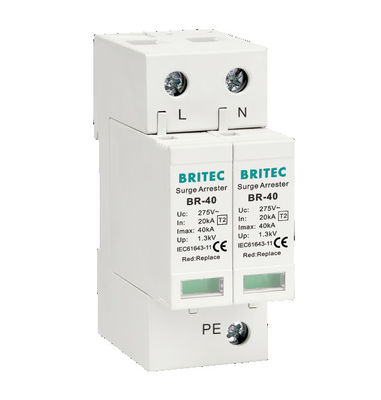

BR-40 4P 20kA - 200kA Power Surge Protection Device
Product Description
The BR-40 4P Surge Protection Device is a reliable and cost-effective solution for overvoltage protection. Designed to protect sensitive electronic equipment from high voltage surges and lightning strikes, it's suitable for both residential and commercial applications. This device features a maximum surge current of 20kA-200kA, 5-year warranty, voltage rating of 275V-440V, and compliance with IEC standards.
Key Features
- Product Name: Surge Protection Device
- Maximum Surge Current: 20kA-200kA
- Type: Surge Protector
- Warranty: 5 Years
Technical Parameters
| Parameter |
Value |
| Product Name |
Surge Protection Device |
| Type |
Surge Protector |
| Response Time |
1ns-20ns |
| Current Wave |
8/20 µs |
| Color |
White, Black, Gray |
| Standard |
IEC Standard |
| Voltage Rating |
275V-440V |
| Maximum Surge Current |
20kA-200kA |
| Class |
Type 2 |
| Warranty |
5 Years |
Applications
The BRITEC BR-40 4P is a high-performance protective device against electrical surges, equipped with thermoplastic UL94-V0 material to ensure reliable operation. Certified with TUV/CB/CE/ROHS/ISO9001 standards for quality guarantee, this device provides up to 20kA-200kA maximum surge current to protect your electrical system from unexpected surge currents.
Customization Options
- Brand Name: BRITEC
- Model Number: BR-40 4P
- Place of Origin: China
- Certification: TUV/CB/CE/ROHS/ISO9001
- Minimum Order Quantity: 1PCS
- Delivery Time: Shipped in 15 days after payment
- Payment Terms: TT
- Supply Ability: 1,000,000 per month
- Voltage Rating: 275V-440V
- Response Time: 1ns-20ns
Packaging and Shipping
Surge Protection Device requires special packaging and shipping to ensure safe delivery in perfect condition.
Packaging: Devices are packaged in heavy-duty plastic or cardboard boxes sealed with strong adhesive to prevent moisture entry. Boxes are clearly labeled with product name and contents.
Shipping: Shipped via reputable carriers (FedEx, UPS, or DHL) with package tracking and insurance against damage or loss during transit.
Manufacturer Information
Wenzhou Britec Electric Co., Ltd. was established in 2003. Britec is a professional surge protective devices (SPD) manufacturer designing and manufacturing surge protection devices for power protection, data protection, and PV protection.
Britec owns an in-house laboratory with 100kA 10/350 lightning impulse generator, 25kA 10/350 impulse generator, 120kA 8/20 generator, 1.2/50 20kV combination generator, TOV test station and other test equipment.
The company carries ISO9001, ISO45001, ISO14001 management systems with various products TUV, CB CE, RoHS certified. Britec has long business relationships with European customers and extensive experience working with multi-national companies.
Frequently Asked Questions
Q: What is the brand name of the Surge Protection Device?
A: The brand name is BRITEC.
Q: What is the model number of the Surge Protection Device?
A: The model number is BR-40 4P.
Q: Where is the Surge Protection Device made?
A: The device is made in China.
Q: What certifications does the Surge Protection Device have?
A: It has TUV/CB/CE/ROHS/ISO9001 certification.
Q: What is the minimum order quantity for the Surge Protection Device?
A: The minimum order quantity is 10PCS.
Delivery Time: Shipped in 15 days after payment. Payment Terms: TT. Supply Ability: 1,000,000 per month.
