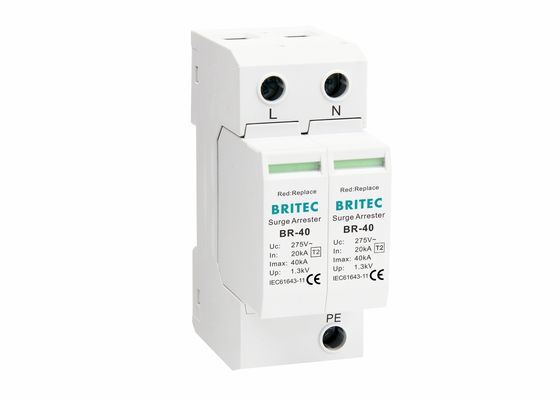

40kA Type 2 Surge Protector Product Description:
Our Type 2 Surge Protection Device is a reliable and robust protector designed to protect against overvoltage and electrical surges. It is IP20 rated for protection against dust, dirt and other particles, providing a secure and long-lasting connection. With a response time of 25ns, it is able to quickly detect any voltage changes or spikes and react accordingly. It is capable of withstanding up to 150V/275V/320V/385V/440V of voltage, making it suitable for a range of applications. The device is made from high-quality thermoplastic UL94-V0, ensuring a durable and reliable product.
It is easy to install and has a long-lasting connection. It is perfect for protecting electronic and electrical equipment from damage caused by electrical surges. It is also a great choice for industrial applications, providing a secure and reliable surge protection solution.
40kA Type 2 Surge Protector Features:
- Product Name: Type 2 Surge Protection Device
- Product Type: Type 2 Surge Protection Device
- Protection Level: IP20
- Response Time: 25ns
- Nominal Discharge Current: 20kA
- Operating Temperature: -40℃~+80℃
40kA Type 2 Surge Protector Technical Parameters:
| |
BR-40 150 2P |
BR-40 275 2P |
BR-40 320 2P |
BR-40 385 2P |
BR-40 440 2P |
| SPD classification according to EN61643-11 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification according to IEC61643-11 |
Class II |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating a.c. voltage Uc |
150V |
275V |
320V |
385V |
440V |
| Nominal discharge current (8/20us) In |
20kA |
20kA |
20kA |
20kA |
20kA |
| Max. discharge current(8/20μs) Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
| Voltage protection level Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
| Voltage protection level 5kA Up |
≤0.6kV |
≤1kV |
≤1.2kV |
≤1.3kV |
≤1.5kV |
| Max. backup fuse |
100A gG |
100A gG |
100A gG |
100A gG |
100A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
green / red |
| Cross-section area (Min.) |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
4mm2 |
| Cross-section area (Max.) |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
35mm2 |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
| Order Code |
B18201 |
B18203 |
B18205 |
B18207 |
B18209 |
| Order Code (With remote signaling) |
B18202 |
B18204 |
B18206 |
B18208 |
B18210 |
Dimension:
40kA Type 2 Surge Protector Applications:
It is designed to protect electric systems against overvoltage transients with a maximum discharge current of 40kA, and is applicable for voltage from 150V/275V/320V/385V/440V.
Difference between lightning arrester and surge absorber
A lightning arrester and a surge absorber both protect electrical systems from overvoltages, but they differ in their primary function, application, and the type of surges they address. A lightning arrester, typically installed externally, intercepts and diverts high-voltage surges from lightning strikes to the ground. A surge absorber, often used internally, manages overvoltages from both external (like lightning) and internal (like switching) sources, reducing the steepness of the surge wave and protecting sensitive equipment.
Double pole surge arrester.
Use epcos surge arrester inside.
Customization:
Customized Type 2 Surge Protection Device Services
We offer customized Type 2 Surge Protection Device services, including the BRITEC BR-40 2P. It has the following features:
- Brand Name
- Model Number
- Packaging Details
Our Type 2 Surge Protection Device is the perfect choice for all your surge protection needs. Contact us today for more information.
FAQ:
- Q: What is the Brand Name of this Type 2 Surge Protection Device?
- A: The Brand Name of this Type 2 Surge Protection Device is BRITEC.
- Q: What is the Model Number of this Type 2 Surge Protection Device?
- A: The Model Number of this Type 2 Surge Protection Device is BR-40 2P.
- Q: Where is this Type 2 Surge Protection Device made?
- A: This Type 2 Surge Protection Device is made in China.
- Q: What certifications does this Type 2 Surge Protection Device have?
- A: This Type 2 Surge Protection Device has a CB/S certification.
- Q: What is the minimum order quantity for this Type 2 Surge Protection Device?
- A: The minimum order quantity for this Type 2 Surge Protection Device is 200pcs.
