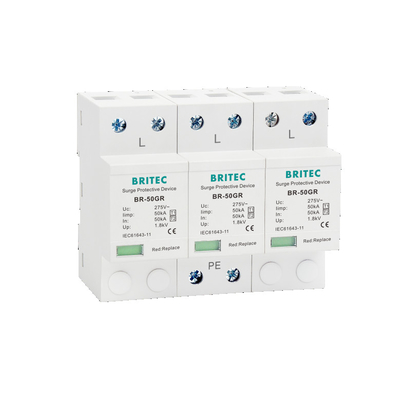

BR-50GR 275 3P Spd Ac Type 1 Surge Protective Device Lightning Arrester T1 T2 Three Phase

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-50GR 275 3P

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Protection	Type:	Class 1 Spd
Response Time::	≤100 Ns	Pole Number:	4P
Color:	White	SPD Disconnector:	Both
Mounting Method:	Fixed	Certificate:	TUV/CE/ROHS Approved Standard
Temperature Range:	Normal	Required SPD-disconnectors:	Internal Thermal Disconnector
SPD Failure Behaviour:	Open Circuit	Degree Of Protection:	IP 20
High Light:	Spd Type1 Surge Lightning Protective Device , T1 Type1 Surge Protective Arrester , Three Phase Type1 Surge Protective Arrester

Ac Lighting Type 1 Surge Protection Device

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity

Type 1: Surge protection devices that can discharge partial lightning current of typically 10/350µs waveform. They are installed before the main isolation device in the load center, typically between the transformer’s secondary and load center’s main circuit breaker. They are used in building with an installed lightning protection system and can protect partial lightning currents resultingfrom direct hit lightnings. Type 1 devices usually use spark gap technology and are commonly referred to as surge arresters.

Quality:

With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV etc.

Ac Lighting Type 1 Surge Protection Device Technology characteristic:

Specification	BR-50GR 3P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Voltage protection level Up	1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

BR25R 3+1 1+1.jpg

Product Features
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs)
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof

Ac Lighting Type 1 Surge Protection Device Advantage:

• Competitively priced against other brands.

• High current.

• High speed action response time.

• With overheat protection.

• high reliability.

• Large flow capacity, low residual pressure.

• The structure is rigorous, the installation is convenient, and the maintenance is simple.

Our Services:

• 20 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Ac Lighting Type 1 Surge Protection Device Installation and note:

• Usually installed in the low-voltage main distribution cabinet of the building incoming line.

• In the normal use of this surge protector, especially during the thunderstorm season, the grounding system of the surge protector should be checked in time to keep it in good grounding condition, otherwise the protection effect of the surge protector will be affected to varying degrees.
