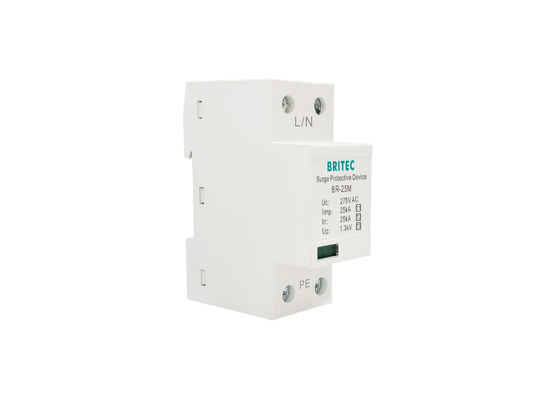

25kA Class I+II+III Surge Protector Feature:
• Part name: Class I+II+III surge protector
• There is a thermal cutoff member inside the protective device, when the device is over-current or over-voltage, the thermal cutoff member will automatically separate from the surge protective device from the electrical network, and the indication window will turn red from green.
• Model number: BR-25M 1P
• According to EN 61643-11 & IEC 61643-1
• Maximum continuous operating voltage Uc: 150VAC/275VAC/320VAC
25kA Class I+II+III Surge Protector Technology Characteristic:
| |
BR-25M 1P |
| SPD classification according to EN61643-11 within 5M |
Type 1 + Type 2 + Type 3 |
| SPD classification according to IEC61643-11 within 5M |
Class I + Class II + Class III |
| Max. continuous operating a.c. voltage Uc |
275V |
| Lightning impulse current (10/350us) Iimp |
25kA |
| Nominal discharge current (8/20us) In |
25kA |
| Maximum discharge current (8/20us) Imax |
100kA |
| Combined impluse Uoc |
20kV |
| Voltage protection level Up |
≤1.3kV |
| Response time tA |
≤25ns |
| Operating temperature range Tu |
-40℃—80℃ |
| Cross-section area (Min.) |
4mm² |
| Cross-section area (Max.) |
35mm² |
| For mounting on |
35mm Din rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
Dimension:
25kA Class I+II+III Surge Protector Application:
• It is mainly used for the Class I lightning protection of AC distribution system
• Suitable as the first step of protection in incoming power supply panels and areas with greater exposure to the atmosphere, where installations are usually provided with an external lightning protection system.
• Used to protect electrical and electronic equipment from induced voltages, operating transients voltage, and overvoltages.
Single Phase SPD Connection Diagram: In an electrical systems, surge protection devices (SPDs) are usually installed in tap-off configuration (in parallel) between the live conductors and the earth.
SPD (Sistema de Protección contra Sobretensiones) es un equipo que protege los aparatos de las sobretensiones.
When an SPD senses a transient overvoltage (also known as a voltage spike or a power surge) in a circuit, it operates by ‘diverting’ the current from the circuit to and through the connected surge protector, rather like a bypass route for current.
