| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-25M 3P |
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Uc: | 150V/275V/320V | In: | 25kA |
|---|---|---|---|
| Model Numbers: | BR-25M 3P | OEM: | Yes |
| Item Name: | Surge Protector | Place Of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | BRITEC | Standard: | IEC61643-1 |
| Iimp: | 25kA | For Mounting On: | 35mm Din Rail |
| High Light: | 3P 25KA Type 1 Surge Protector,Waveform Type 1 Surge Protector,320V Type 1 Surge Protector Device |
||

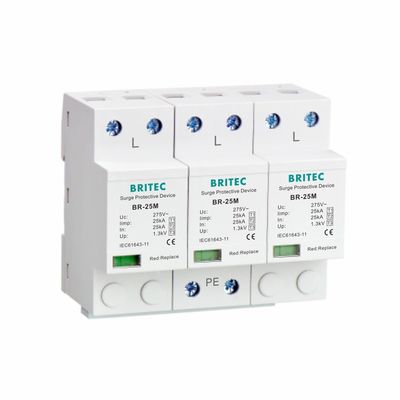

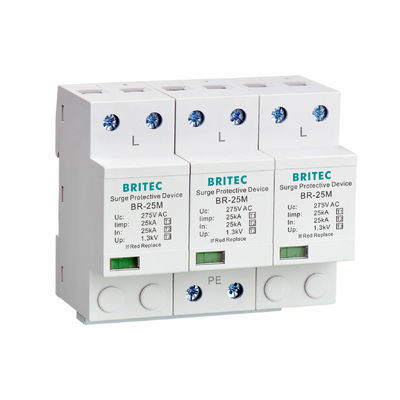

25KA Type 1 Surge Protector Features:
25KA Type 1 Surge Protector Technology characteristic:
| BR-25M 3P | |
| No. of poles | 3P |
| Power supply system | TN-C |
| SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
| SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
| Max. continuous operating a.c. voltage Uc | 150V/275V/320V |
| Voltage protection level Up | ≤1.3kV |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Status indication | Mechanical flag |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Relative humidity | On condition that room temperature 30% to 90% |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| For mounting on | 35mm Din rail |
| Max. backup fuse | 315A gG |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| Note | Other maximum continuous working voltage Uc can be customized |
Dimension:
25KA Type 1 Surge Protector Application:
• Prevents lightning overvoltage and transient overcurrent from intruding into the power supply line from disrupting the normal operation of the power supply system and electrical equipment.
• It is applicable to lightning protection for the power system in areas with high lightning risk (LPZ0B or the interface between LPZ0B and LPZ1).
• Suitable for three-phase TN-C power supply system with AC of 50 to 60Hz
• Generally installed in the building into the low-voltage main distribution cabinet or low-voltage main switch.
Workshop:
Laboratory:
Certificate:
Shipping:
FAQ:
Q1. What's the payment term?
A1. We accept TT, 30% deposit and 70% balance before shipping.
Q2. Would you accept to use our logo?
A2. If you have good quantity, it absolute no problem to do OEM.
Q3. Do you accept customized order?
A3. Yes, we do.
