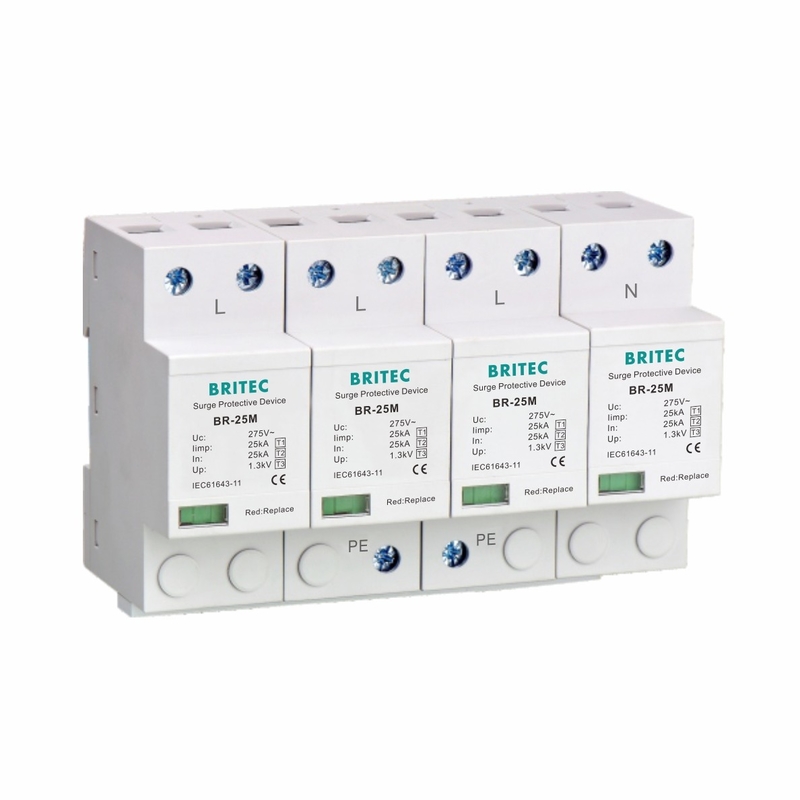

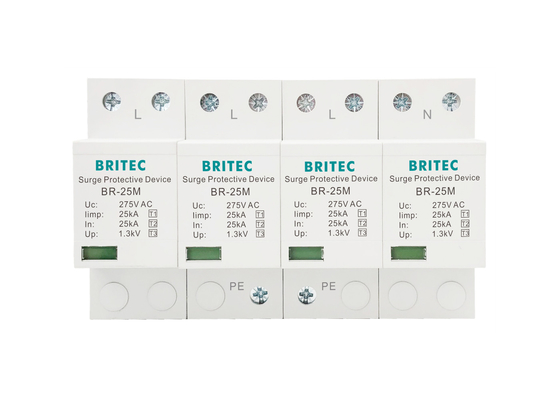

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3
25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3 25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3

Large Image :  25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-25M 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 25 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 500000 Piece/Pieces Month
Contact Now

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3

Description
Brand: BRITEC Model: BR-25M 4P
Item Name: Surge Protection Device Class Standard: Type 1+2+3
Uc: 275V Iimp: 25kA
Poles: 4P Protection Class: IP20
Operating Temperature: -40℃—80℃ Material: Thermoplastic UL94-V0
Keyword: Lightning Protection
Highlight:

25KA T1 Surge Protector

,

Type1 4P Surge Protector

,

BRITEC Type 1 Surge Protection Device

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:


• Can be used in TN-S systems
• The surge arrester meets the requirements of IEC61643-11
• The unit is designed to be used between Zone O and Zone 1 (according to IEC62305-4 definition of Lightning Protection Area).
• The product is mainly used for the Class I protection of the power system.
• The product is mainly 10/350 waveform, up to 25KA
• Installed in the main power distribution



T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:



  BR-25M 4P
SPD classification according to EN61643-11 with 5M Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M              Class I + Class II + Class III
Rated operating voltage                                                    Un 400V
Max. continuous operating a.c. voltage                             Uc 275V
Voltage protection level                                                     Up ≤1.3kV
Lightning impulse current (10/350us)                             Iimp 25kA
Nominal discharge current (8/20us)                                   In 25kA
Maximum discharge current (8/20us)                            Imax 100kA
Response time                                                                   tA ≤25ns
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 315A gG
Operating temperature range                                            Tu -40℃—80℃
Relative humudity(25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0



Dimension:

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3 0

T1 Surge Protector 25KA 4P Surge Protection Device Product installation instructions:

• Power must be cut off before installation. Live operation is prohibited.
• It is recommended that a fuse or circuit breaker be connected in series at the front end of the surge protection.
• SPD is installed in parallel at the power supply inlet end of the building distribution box or the equipment room. The product is installed in the guide rail type. If conditions permit, the Kevin connection mode can be adopted.
• During installation, connect the device according to the installation diagram, where L is the phase line,N is the neutral line, and PE is the ground line. Do not misconnect the device. After the installation is complete, turn on the automatic circuit breaker and check whether the working status is normal.
• When the SPD is in use, check the status of the fault display window regularly. If the fault display window is red or the remote terminal outputs an alarm signal, it indicates that the SPD is faulty and should be repaired or replaced in time.
• Suitable for indoor operation, such as installed in the outdoor, must be equipped with waterproof shell.

Types of SPD and Its Mounting Location. Type 1 SPD: Provide lightning protection against transient overvoltage instigates from direct lightning strokes where the lightning discharge voltage could spread from one of the structures earth conductor to the other network conductors. Type 1 SPD is characterized by a 10/350μs surge current waveform per IEC 61643-11:2012
SPD Type 1+2 Surge arrester range for fast busbar mounting in three phase system.

SPD Selection Guide

The SPD selection must be done according to the system network where the sensitive equipment is connected and the level of protection required. Then, different systems AC /DC powerlines, Data lines of specific applications need to use dedicated SPD conceptions to guarantee the right protection.


About us:


Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 21 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.


25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3 1

Our certification:

25KA T1 Surge Protector 4P Surge Protection Device Type 1+2+3 2

FAQ:


Q1: Can the price be negotiated?
  A: Yes, the price is negotiable. It can be changed according to your quantity.



Q2: Are your surge protector supported for customization?
  A: Yes, of course.



Q3: How can you ensure your After-sales Service?
  A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.



Q4: Are you a trading company or a manufacturer?
  A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
