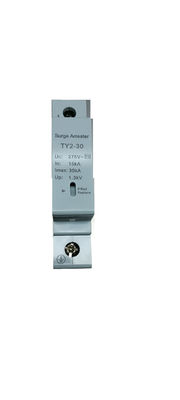

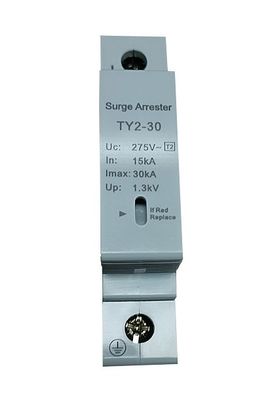

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd

  • TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd
  • TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd
  • TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd
TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: TY2-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Single Phase Spd Type: T2
Package: Carton Package Waveform: 8/20
Certificate: TUV CE IEC ROHS Mounting: DIN Rail 35 Mm.
Warranty: 5 Years Type Of Current: AC
Rated Frequency (f): 50/60Hz Payment: Paypal.TT.Western Union
Highlight:

Type 2 Surge Protection Device 275V

,

Single Phase Spd Type2 Surge Protector

,

60Hz Spd Type 2 Surge Protector

275V surge voltage protector tvss spd Type 2 surge arrester





Type 2 surge arrester  Features:



Products features:

1. Pluggable module, easy for installation and maintenance

2. High discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Green window will change when fault and also provide remote alarm control at the same time





Type 2 surge arrester  Technology characteristic:

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 0

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 1





  TY2-30
Max. continuous operating a.c. voltage                              Uc 275V
Nominal discharge current (8/20us)                                    In 15kA
Maximum discharge current (8/20us)                             Imax 30kA
Voltage protection level                                                      Up ≤1.3kV
Response time                                                                    tA ≤25ns
Max. backup fuse 125A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11



AC SPD Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!





Type 2 surge arrester Application:

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity


Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.


Type 2 surge arrester Certificate:


CB, CE, TUV,RoHS Certificate:


TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 2

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 3

Production line:

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 4
TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 5

Laboratory equipment:

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 6

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 7

Shipping:

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd 8

FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.



Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
